Autonics BS5-L2M Photoelectric Sensors Photomicro Type NPN
- Autonics BS5-L2M Photoelectric Sensors Photomicro Type NPN
+
+
Overview
Specs
Reviews
Autonics BS5-L2M Photoelectric Sensors Photomicro Type NPN

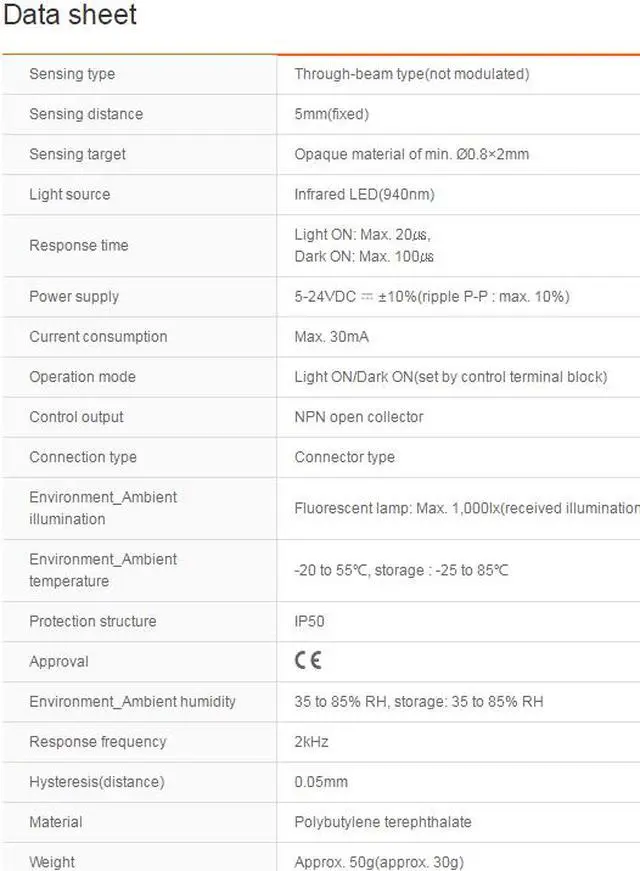

Sensing type : Through-beam type(not modulated)
Sensing distance : 5mm(fixed)
Sensing target : Opaque material of min. Ø0.8×2mm
Light source : Infrared LED(940nm)
Response time : Light ON: Max. 20?,
Dark ON: Max. 100?
Power supply : 5-24VDC ±10%(ripple P-P : max. 10%)
Operation mode : Light ON/Dark ON(set by control terminal block)
Control output : NPN open collector
Sensing type : Through-beam type(not modulated)
Sensing distance : 5mm(fixed)
Sensing target : Opaque material of min. Ø0.8×2mm
Light source : Infrared LED(940nm)
Response time : Light ON: Max. 20?,
Dark ON: Max. 100?
Power supply : 5-24VDC ±10%(ripple P-P : max. 10%)
Operation mode : Light ON/Dark ON(set by control terminal block)
Control output : NPN open collector
