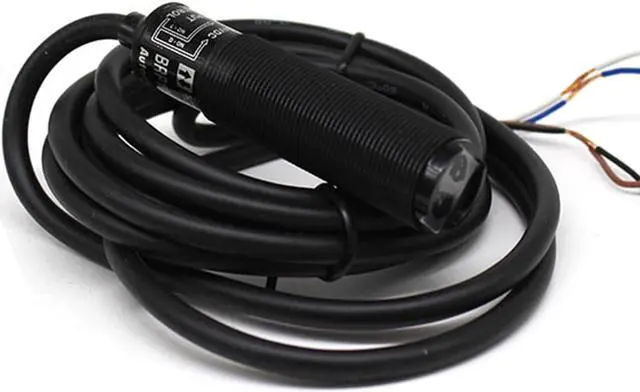

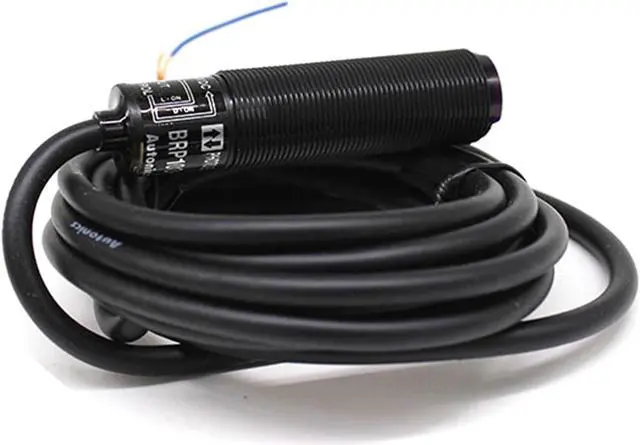

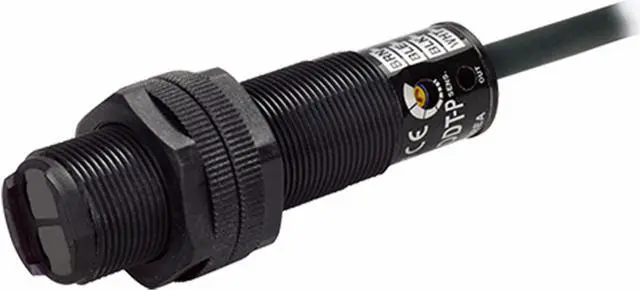

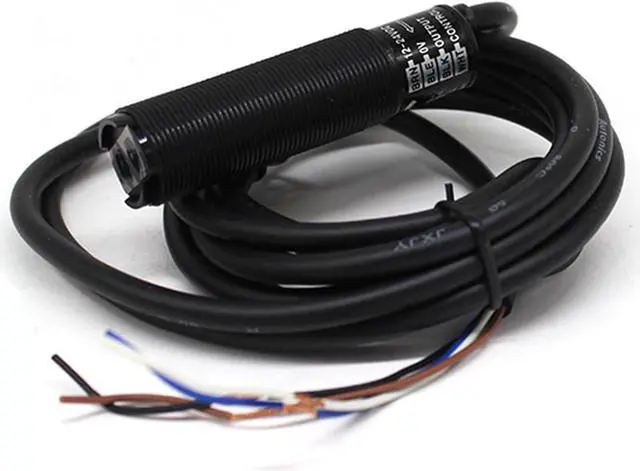

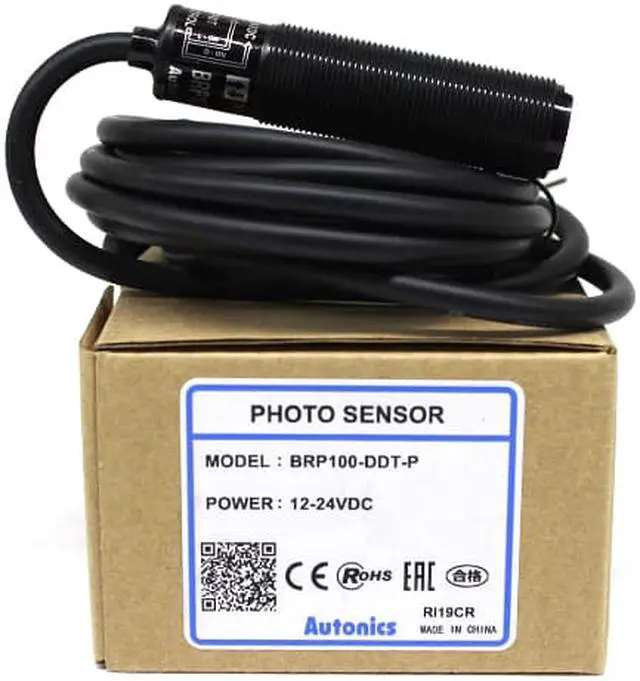

Autonics BRP100-DDT-P Photoelectric Sensors Cylindrical Type PNP
- Autonics BRP100-DDT-P Photoelectric Sensors Cylindrical Type PNP
+
+
Overview
Specs
Reviews
Autonics BRP100-DDT-P Photoelectric Sensors Cylindrical Type PNP

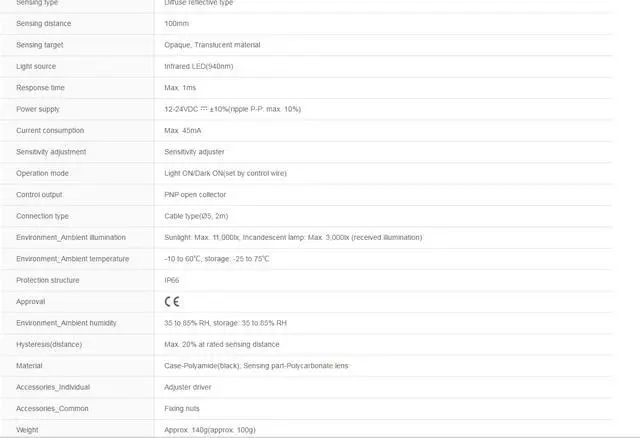

Sensing type : Diffuse reflective type
Sensing distance : 100mm
Sensing target : Opaque, Translucent material
Light source : Infrared LED(940nm)
Response time : Max. 1ms
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by control wire)
Control output : PNP open collector
Sensing type : Diffuse reflective type
Sensing distance : 100mm
Sensing target : Opaque, Translucent material
Light source : Infrared LED(940nm)
Response time : Max. 1ms
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by control wire)
Control output : PNP open collector
