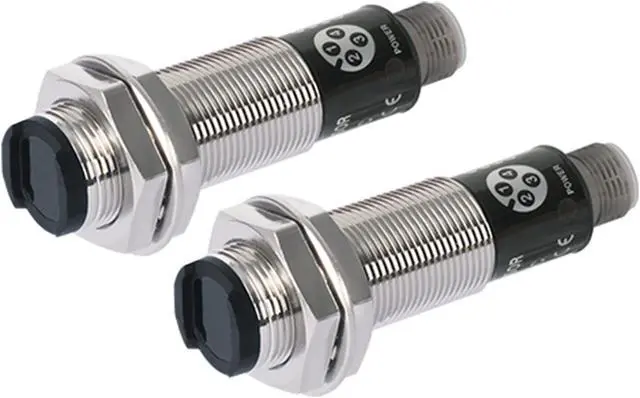

Autonics BR20M-TDTL-C-P Through-beam Metal Cylindrical Photoelectric Sensor
- Autonics BR20M-TDTL-C-P Through-beam Metal Cylindrical Photoelectric Sensor
+
+
Overview
Specs
Reviews

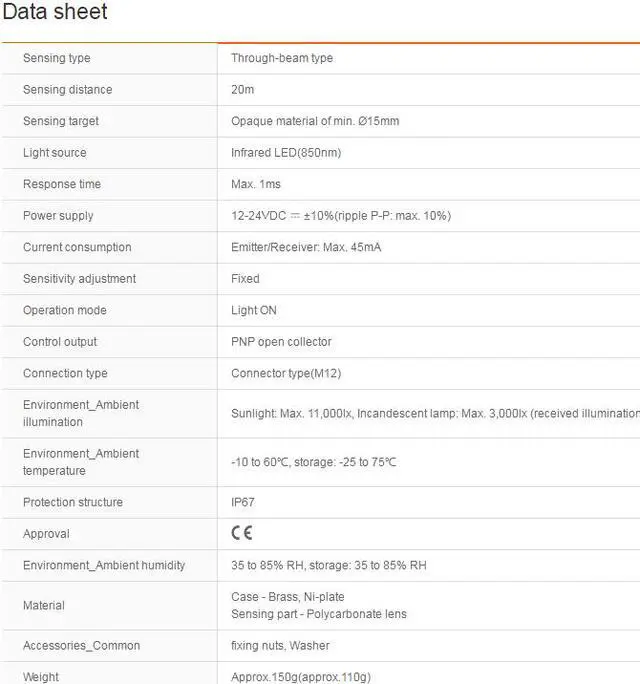

Autonics BR20M-TDTL-C-P Through-beam Metal Cylindrical Photoelectric Sensor
Sensing type : Through-beam type
Sensing distance : 20m
Sensing target : Opaque material of min. Ø15mm
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode : Light ON
Control output : PNP open collector
Sensing type : Through-beam type
Sensing distance : 20m
Sensing target : Opaque material of min. Ø15mm
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Operation mode : Light ON
Control output : PNP open collector
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 30 days
- This item is covered by FeiPengLin Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
