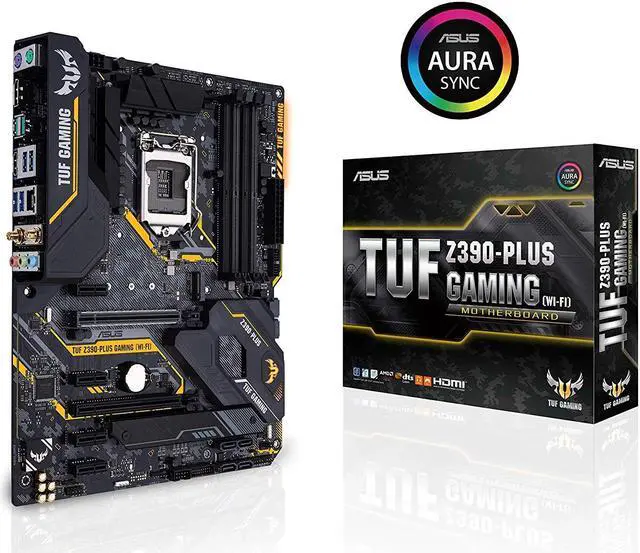

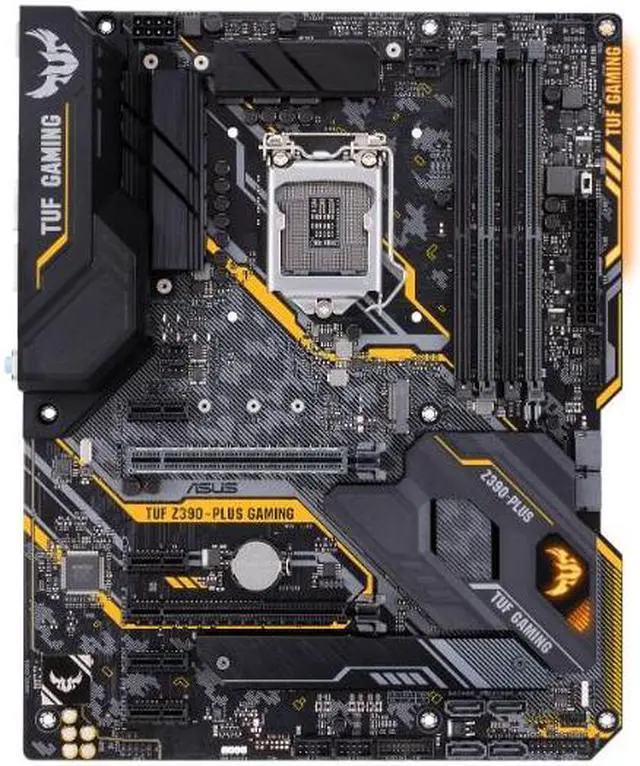

ASUS TUF Z390-PLUS GAMING - Motherboard - ATX - LGA1151 Socket - Z390 - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Learn more about the ASUS Z390-PLUS GAMING
Model
Brand
ASUS
Series
TUF
Model
Z390-PLUS GAMING
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Refer to www.asus.com for CPU support list * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies
Supports Intel Turbo Boost Technology 3.0 * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.
Chipsets
Chipset
Intel Z390
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor - Intel UHD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots

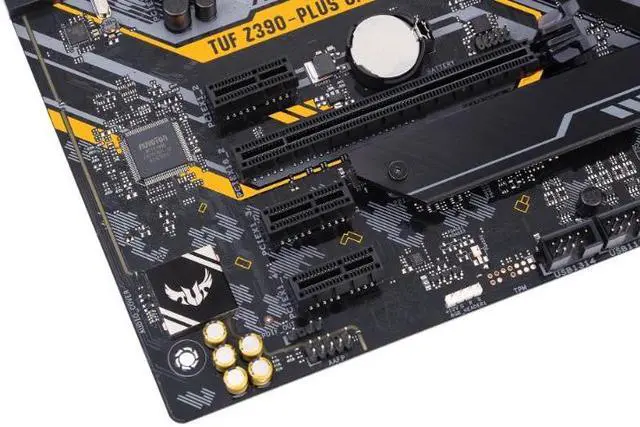

PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
* For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. * The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
PCI Express x1
4 x PCIe 3.0/2.0 x1 * * The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
Storage Devices
Serial ATA (SATA)
6 x SATA 6.0Gb/s ports (gray) * When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)** * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used. ** When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC S1200A High Definition Audio CODEC
Audio Channels
8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Rear Panel Ports
PS/2
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
1 x DisplayPort
USB 3.1
2 x USB 3.1 Gen 2 Type-A 4 x USB 3.1 Gen 1 Type A
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
2 x Aura RGB Strip Header(s) 1 x CPU Fan connector(s) (4-pin) 1 x CPU OPT Fan connector(s) (4-pin) 2 x Chassis Fan connector(s) (4-pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector
Special Features: Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness ASUS TUF PROTECTION - ASUS DIGI + VRM: 8+1 Phase digital power design - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Optimem II: - Optimem (Improved DDR4 stability) ASUS EPU: - EPU TUF ENGINE! Power Design: - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA: - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - File Transfer - ASUS C.P.R. (CPU Parameter Recall) ASUS Quiet Thermal Solution: - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer - Auto download driver and software. Friendly for first PC builder
BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
Operating System: Windows 10 64-bit
Management Solution: WOL by PME, PXE
Packaging
Package Contents

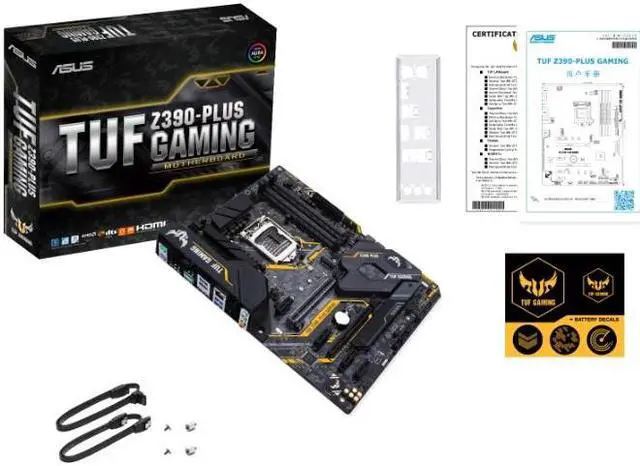

Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x SCD (by region)
