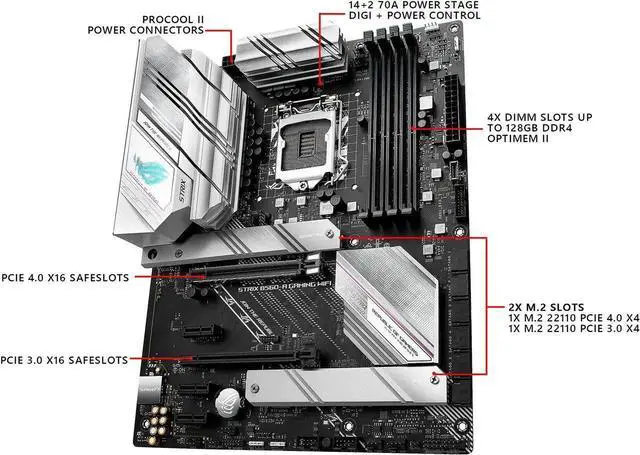

ASUS ROG STRIX B560-A GAMING WIFI LGA 1200 ATX Intel Motherboard
REFURBISHED Product Type
- Intel B560
- Supports 11th / 10th Gen Intel Core Processors
- Supports Intel Pentium Gold and Celeron Processors
- DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133
+
+
Specs
Reviews
Learn more about the ASUS STRIX B560-A GAMING WIFI
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX B560-A GAMING WIFI |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133* * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * 10th Gen Intel i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Supports x4 mode. |
| PCI Express x1 | 3 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* * When M.2_2 runs at SATA mode, SATA6G_1 will be disabled. |
| Intel Optane Ready | To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
|---|---|
| Audio Channels | 7.1 Channels* * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| LAN Chipset | Realtek 2.5Gb Ethernet |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel WiFi 6 AX201 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.0 |

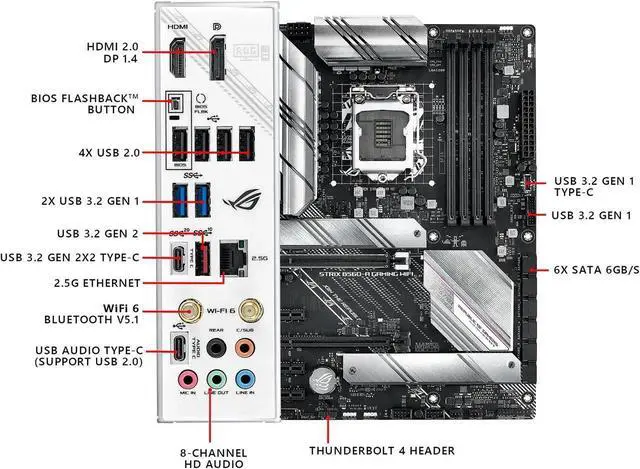

| Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 2 x USB 3.2 Gen 1 port(s) (2 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C) 1 x HDMI port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|---|

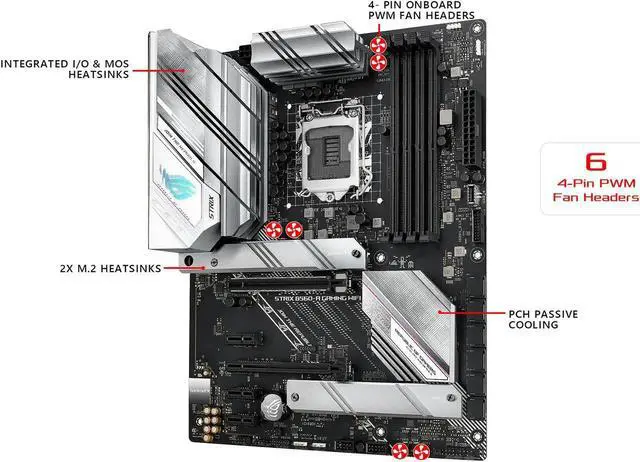

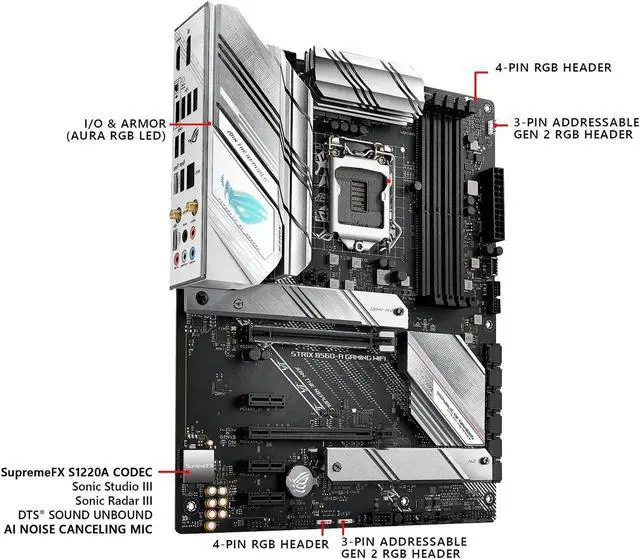

| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt header 1 x S/PDIF Out header 1 x Speaker header |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update MyAsus WinRAR DAEMON Tools UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128 MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit |
|---|
| Package Contents | Accessories: Cables 4 x SATA 6Gb/s cables 1 x ROG audio USB Type-C cable Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x M.2 Rubber Packages 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
|---|
| First Listed on Newegg | July 30, 2026 |
|---|
