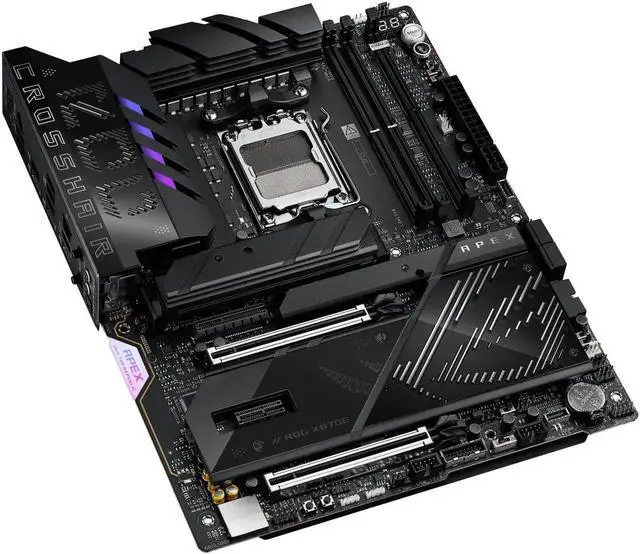

Main image of ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

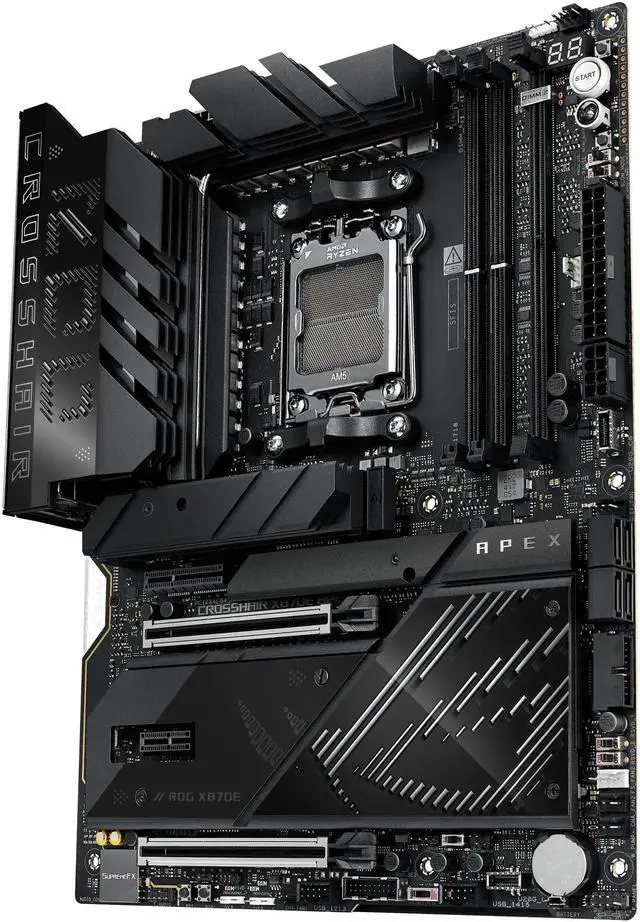

Alt view image 2 of 7 - ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

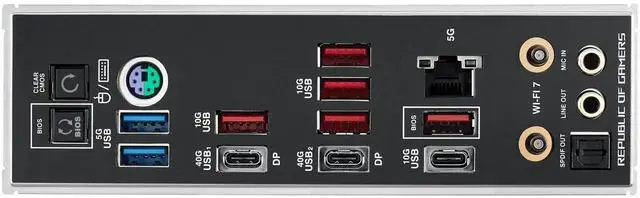

Alt view image 3 of 7 - ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

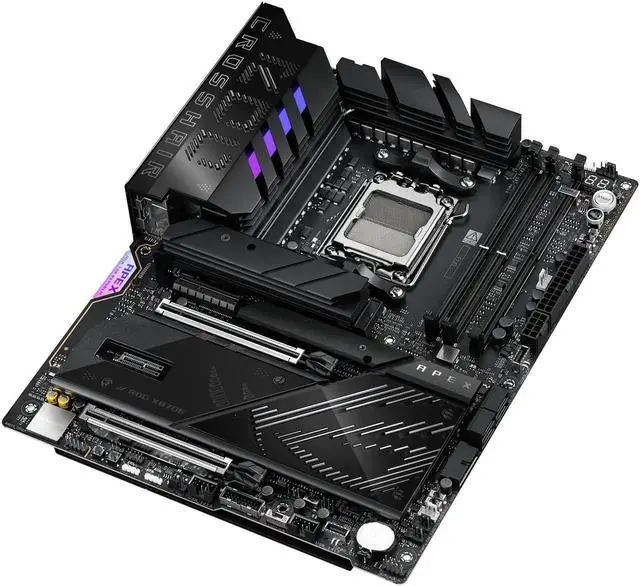

Alt view image 4 of 7 - ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

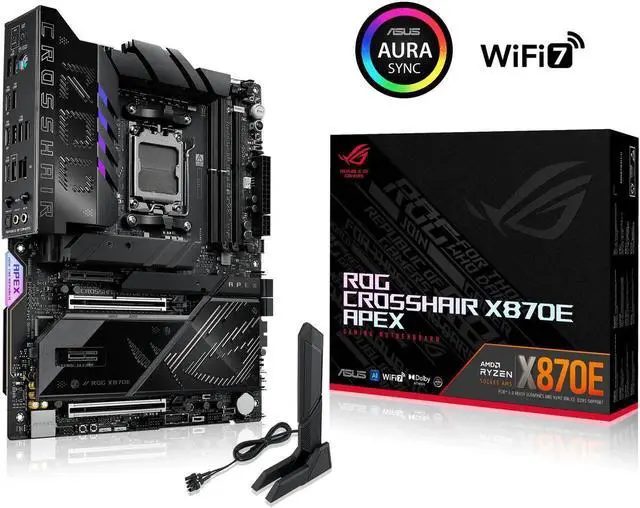

Alt view image 5 of 7 - ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

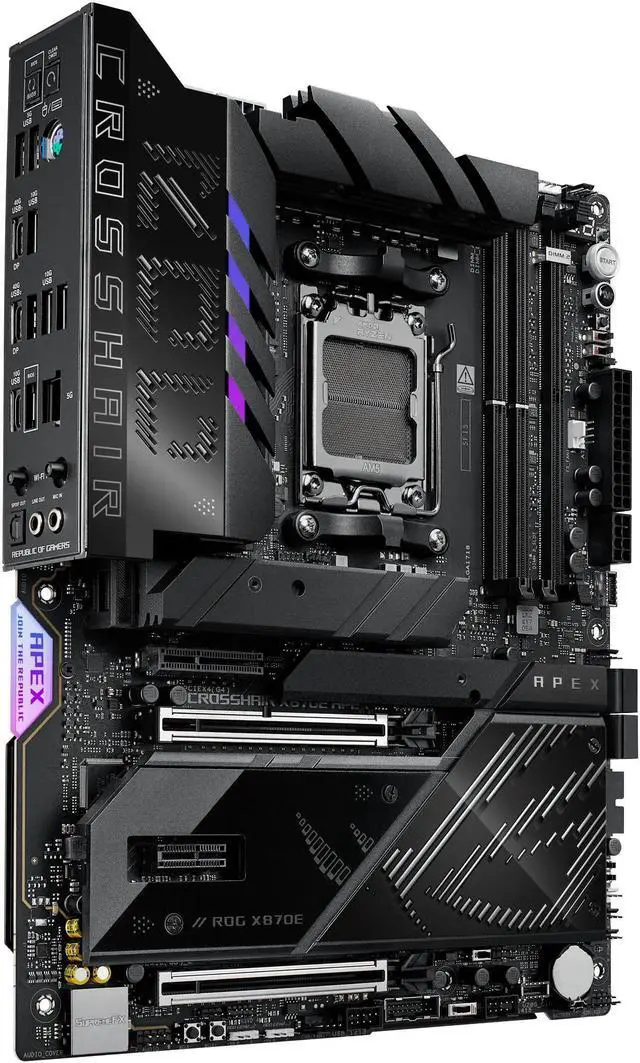

Alt view image 6 of 7 - ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

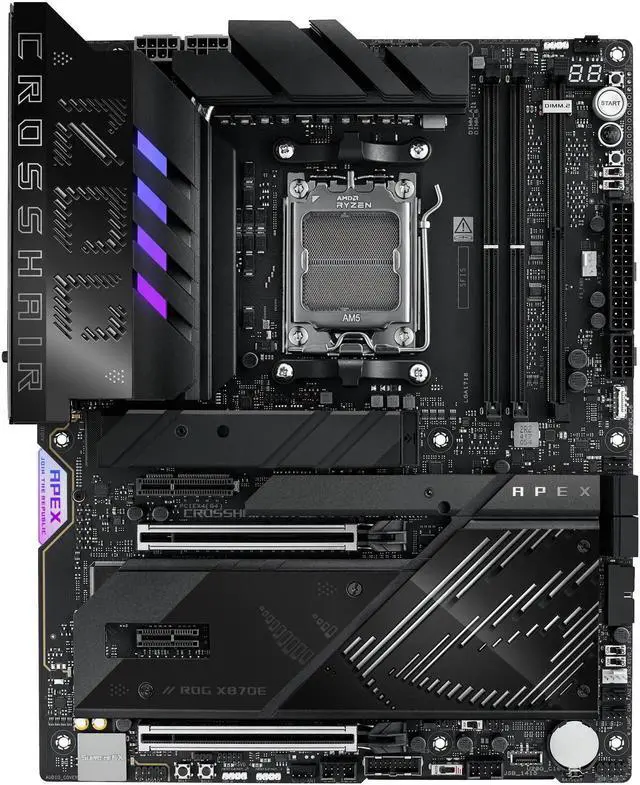

Alt view image 7 of 7 - ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

Shop All ASUS Products | Visit TECH EDGE Store

ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

X870: ROG CROSSHAIR X870E APEX

ROG CROSSHAIR X870E HERO
ROG CROSSHAIR X870E EXTREME
ROG CROSSHAIR X870E APEX
ROG STRIX X870E-E GAMING WIFI
ROG STRIX X870-I GAMING WIFI
ROG STRIX X870-F GAMING WIFI
TUF GAMING X870-PLUS WIFI
ProArt X870E-CREATOR WIFI
PRIME X870-P WIFI
PRIME X870-P
X870 MAX GAMING WIFI7
X870 AYW GAMING WIFI W

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
Intelligent Control: ASUS-exclusive AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
Robust Power Solution: 18(110A)+2(110A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium SMD capacitors
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe
Latest M.2 Support: Three onboard PCIe® 5.0 M.2 slots and two PCIe® 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions
ROG Memory Fan Kit: Cooling solution can unleash memory overclocking up to 9600+ MT/s

Overview

Specs

Reviews

Ready for
Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
Intelligent Control: ASUS-exclusive AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
Robust Power Solution: 18 (110A) +2 (110A) +2 (80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium SMD capacitors
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe
Latest M. 2
Support: Three onboard PCIe® 5.0 M. 2 slots and two PCIe® 4.0 M. 2 slots on an ROG DIMM. 2 card, all with substantial cooling solutions
ROG Memory Fan Kit: Cooling solution can unleash memory overclocking up to 9600+ MT/s

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by TECH EDGE Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	AM5
CPU Type	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Number of Memory Slots	2x288pin (DDR5)
Memory Standard	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9600+MT/s(OC) with Ryzen™ 8000 Series Processors 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	128GB
ECC Supported	Non-ECC

PCI Express 5.0 x16	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) * When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. *When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4. ** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
PCI Express 4.0 x16	AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
SATA RAID	0/1/5/10

Second LAN Chipset	1 x Realtek 5Gb Ethernet ASUS LANGuard
Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Yes

Meet Your Seller

ASUS ROG CROSSHAIR X870E APEX AMD X870E AM5 ATX motherboard, Advanced AI PC-ready, 18+2+2 stages, DDR5, ROG Memory Fan, ROG DIMM.2 Card, Wi-Fi 7, 5G LAN, 3x M.2, PCIe® 5.0, USB4® , USB Type-C®, AI OC

Learn more about the ASUS ROG CROSSHAIR X870E APEX

Customer Reviews of the ASUS ROG CROSSHAIR X870E APEX

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	ASUS
Series	ROG
Model	ROG CROSSHAIR X870E APEX
Part Number	90MB1KR0-MVAAY0

Form Factor	ATX
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
