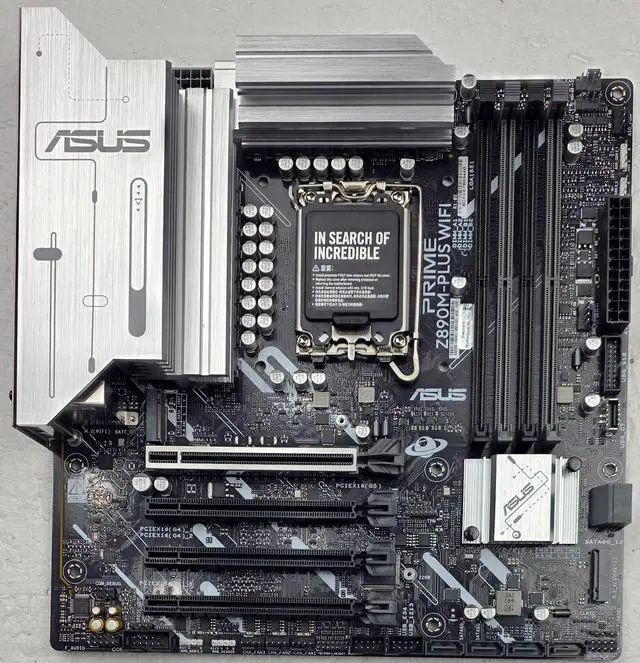

ASUS PRIME Z890M-PLUS WIFI Z890 LGA 1851 mATX motherboard, Intel® Core Ultra Series 2 Ready, Advanced AI PC-ready, 10+1+2+1 80A power stages, DDR5, PCIe® 5.0, USB Type-C®, 3x M.2, Wi-Fi 7, 2.5Gb LAN

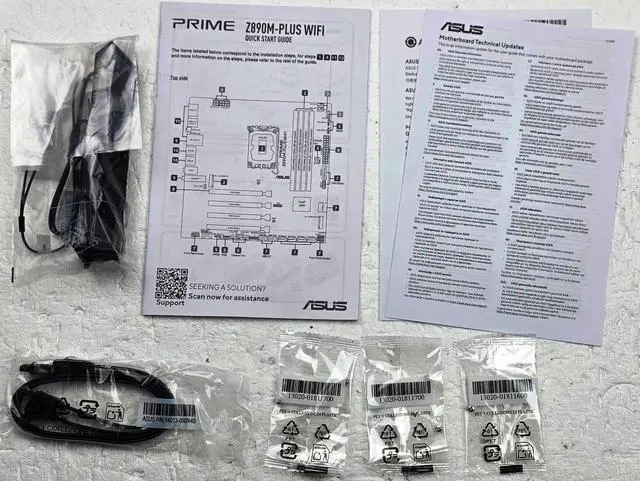

REPLACEMENT FROM ASUS, MOTHERBOARD COMES IN PLAIN OEM BOX WITH ACCESSORIES AS PICTURED

1. M-ATX Form Factor
2. Intel Z890 Chipset

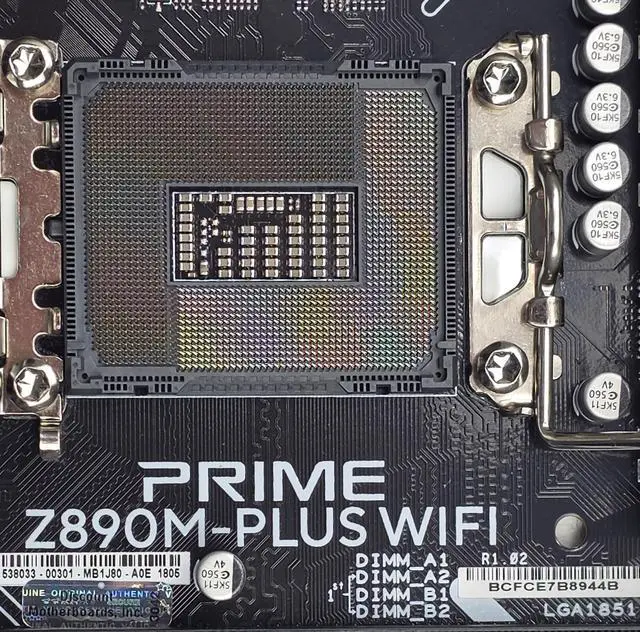

3. LGA 1851 Socket
4. 4 x Dual-Channel DDR5 Slots
5. 6 x SATA III | 3 x M.2
6. PCIe 5.0 x16 | PCIe 4.0 x16
7. USB 3.2 Gen 1, 2, 2x2 & 2.0
8. Wi-Fi 7 | Bluetooth | 2.5GbE
9. Realtek 7.1 Surround Sound
10. Works with Windows 11

Specifications as provided by the Manufacturer:

Designed to provide a balanced DIY experience for both first time and experienced builders, the ASUS PRIME Z890M-PLUS WIFI Motherboard may be outfitted to drive immersive entertainment and high-quality content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this M-ATX motherboard fits compact cases while delivering smooth performance for demanding applications and AI workloads.

Install an M.2 PCIe 5.0 SSD alongside three PCIe 4.0 drives, providing you with plenty of space to store your games library, applications, and multimedia files. Six SATA III connectors are also available. The four DDR5 DIMM slots support up to 192GB. You can install a powerful graphics card into the available PCIe 5.0 x16 slot while reserving the PCIe 4.0 x16 (x4 mode) and two PCIe 4.0 x16 (x1 mode) slots for other compatible expansions.

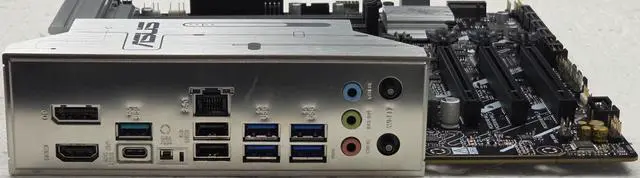

The rear panel features one USB-C port that can transfer up to 20 Gb/s compatible devices or connect a compatible display. There is also a 10 Gb/s USB-A port alongside four USB-A 3.2 Gen 1 ports that work with 5 Gb/s devices. You can use the two USB-A 2.0 ports for keyboards, mice, and other peripherals. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 is required to take advantage of all this motherboard's features.

AI Integration

Leveraging Artificial Intelligence, the PRIME Z890M-PLUS WIFI can boost performance with dynamic AI cooling that automatically adapts to CPU temperatures. AI Networking uses intelligent technologies to continuously optimize your wireless connectivity. You can ask the ASUS AI Adviser questions about optimizing your system's performance and finding out more about its features.

Enhanced Power Solution

Equipped with 10+1+2+1 80A power stages with ProCool connectors, durable chokes, and Digi+ VRM control, this motherboard delivers stable power throughout the system for overclocked components.

DIMM Fit

This ASUS-exclusive BIOS feature analyzes individual memory modules to optimize performance and pinpoint potential issues.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.

Comprehensive Cooling

A VRM heat sink array works with the smart fan and AIO pump headers to efficiently dissipate heat for optimal performance.

Realtek Audio

Realtek 7.1 Surround Sound

The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.

DIY Friendly

Q-Antenna

With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.

Q-LED Core

The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

BIOS FlashBack

BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.

SafeSlot

The reinforced metal SafeSlot helps to keep heavy video cards firmly installed.

Pre-Mounted I/O Shield

A pre-installed I/O shield helps to protect the rear ports while simplifying the build process.

Personalization

TurboV Core

Accessed via ASUS DriverHub, TurboV Core delivers intuitive CPU tuning that can unleash performance for overclocking enthusiasts. No need to enter the BIOS. You can modify settings directly from within Windows and apply them without needing to reboot.

ASUS GlideX

Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

Aura Sync

Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.

Addressable Gen 2 RGB headers

The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
