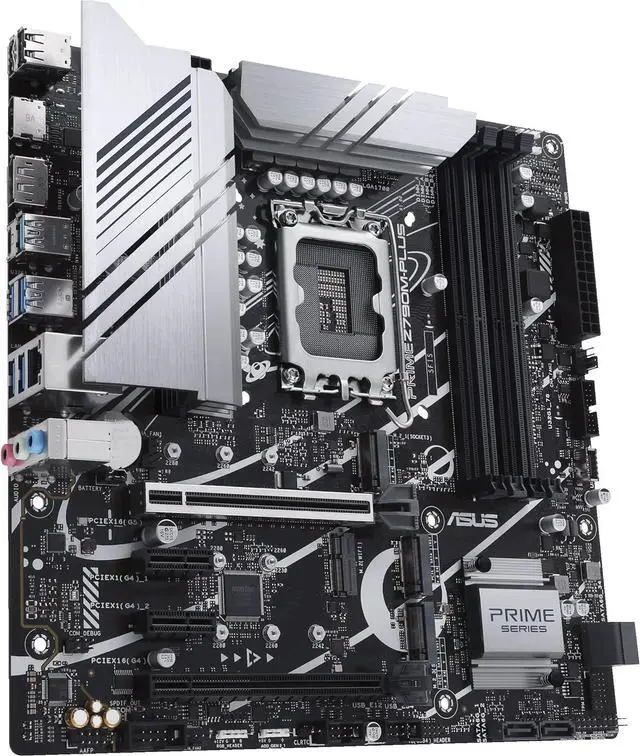

Main image of ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

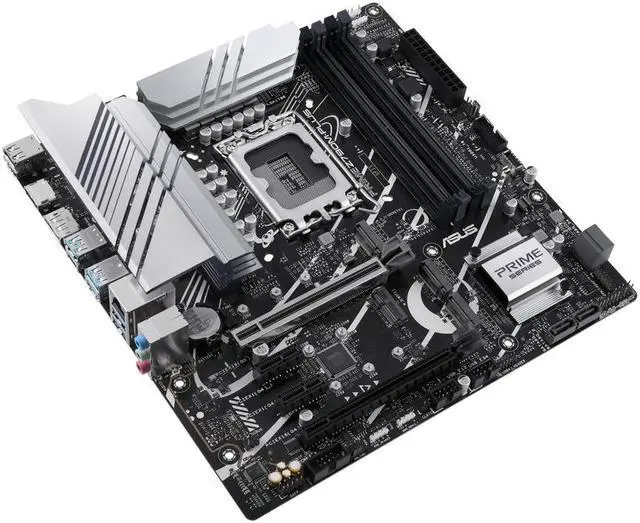

Alt view image 2 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

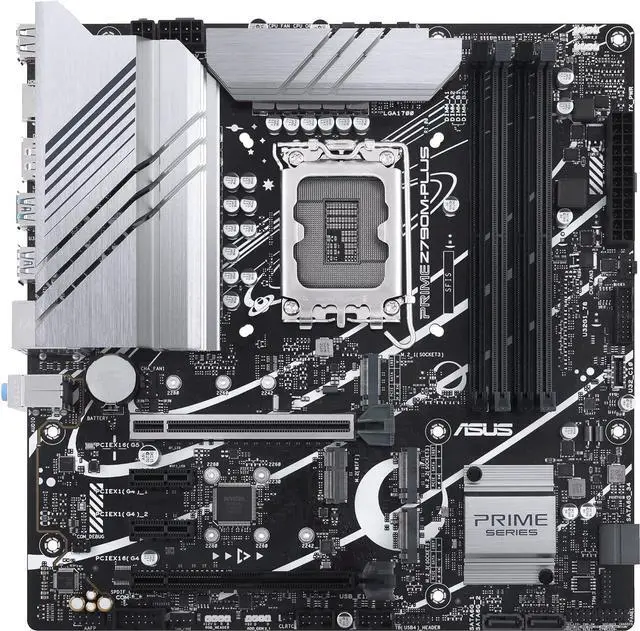

Alt view image 3 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

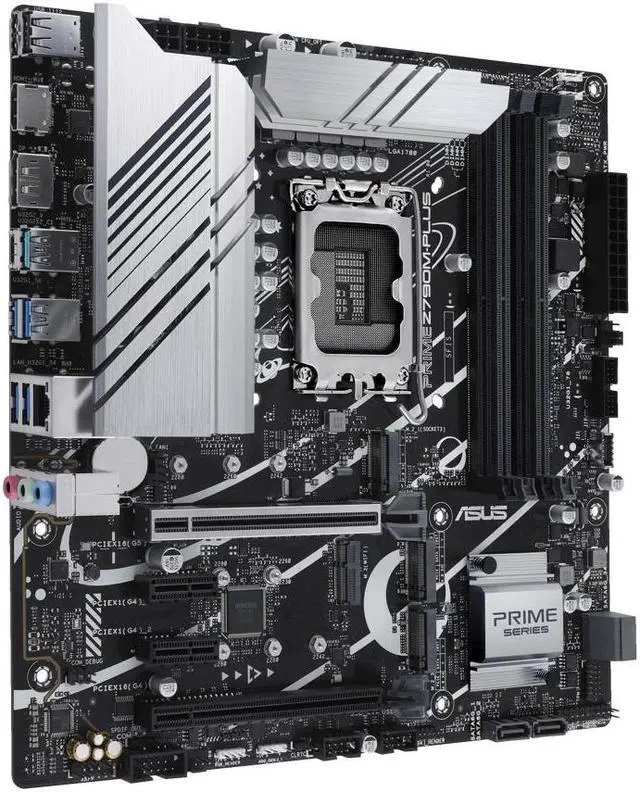

Alt view image 4 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

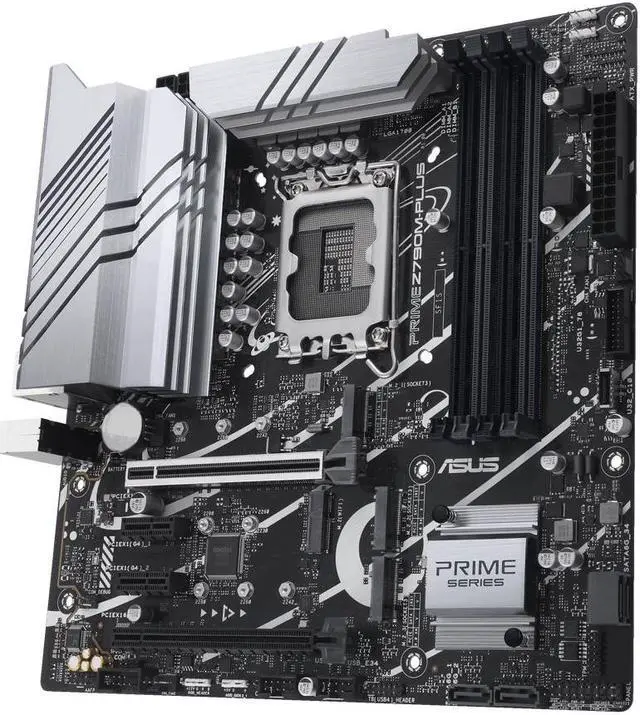

Alt view image 5 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

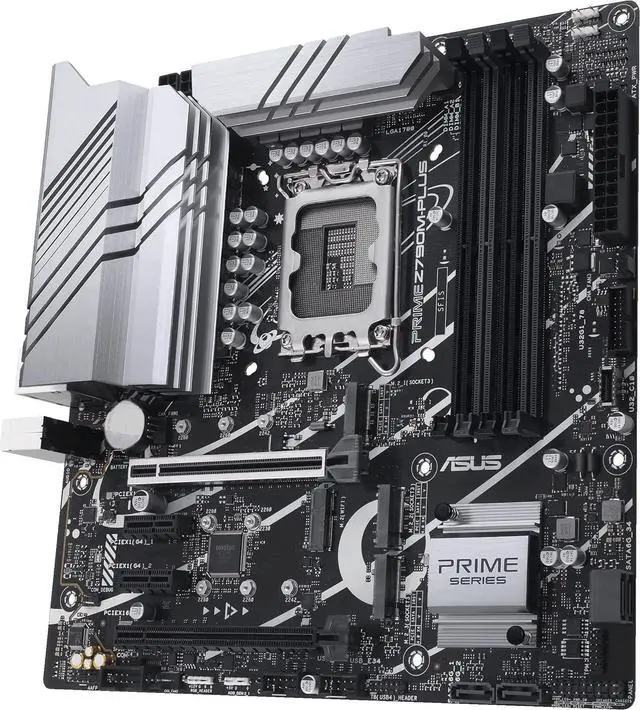

Alt view image 6 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

Alt view image 7 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

Alt view image 8 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

Alt view image 9 of 9 - ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

Shop All ASUS Products | Visit TechNest Pro Store

ASUS Prime Z790M-Plus LGA 1700(Intel 14th & 13th & 12th Gen) microATX motherboard (PCIe® 5.0, 3xM.2 slots, 10+1 DrMOS, DDR5,1 Gb LAN, DP, USB 3.2 Gen 2x2 Type-C®,front USB 3.2 Gen 1 Type-C,

REFURBISHED

Be the first to review this product...

BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
Intel LGA 1700 socket: Ready for 14th & 13th & 12th Gen Intel processors
Enhanced Power Solution: 10+1 DrMOS, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: PCIe 5.0,DDR5, Intel 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) header support
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive cooling: Large VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4(with AI Cooling II)

Overview

Specs

Reviews

ASUS PRIME Z790M-PLUS PRIME Z790M-PLUS Motherboards Intel

This product was refurbished by the Manufacturer. This product was tested and is 100% fully functional. This product may show slight signs of use.

Socket Type: LGA 1700
Form Factor: mATX
CPU Brand: Intel
Suitable For: Gaming
Features:
Newegg CPU Type: Intel Core 14th Gen (LGA 1700)
Memory Standard: DDR5

Model
Brand	ASUS
Model	PRIME Z790M-PLUS
Part Number	90MB1E70-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	Intel® 14th, 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x1	2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s ports
M.2	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 14th, 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	1 x Intel 1Gb Ethernet
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin + 12V Power connector 1 x 4-pin + 12V Power connector

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide

Additional Information
First Listed on Newegg	July 20, 2026
