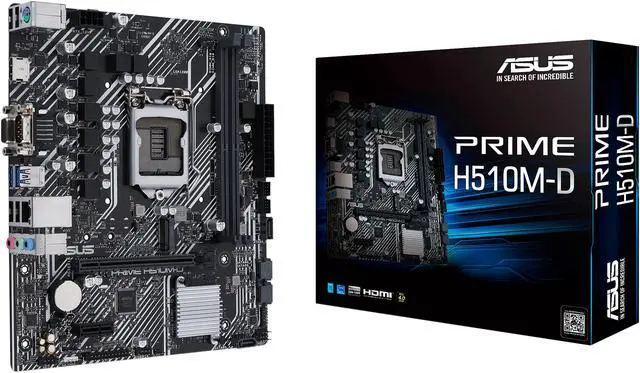

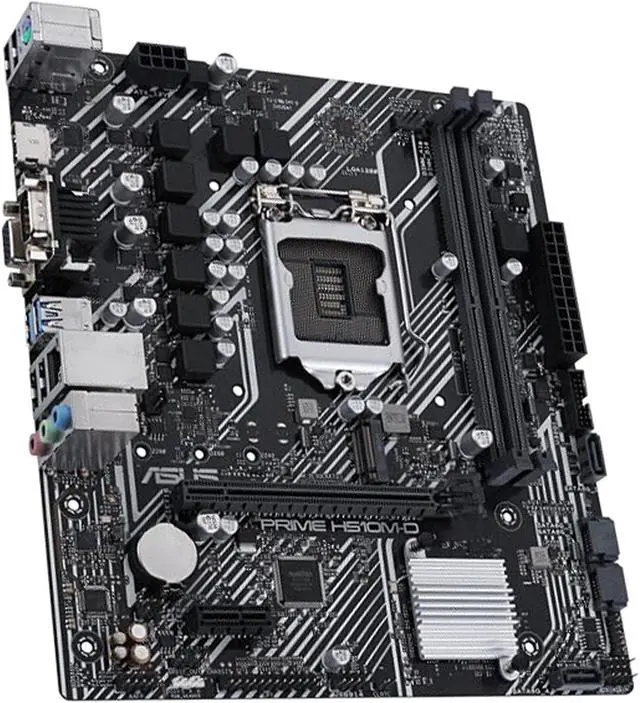

    ASUS PRIME H510M-D/CSM LGA 1200 Intel H510 Micro ATX Intel Motherboard

    Be the first to review this product...
    • Intel H510
    • Supports 11th / 10th Gen Intel Core Processors
    • Supports Intel Pentium Gold and Celeron Processors
    • DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133
    +
    +
    Specs
    Reviews

    Learn more about the ASUS PRIME H510M-D/CSM

    Model
    Brand ASUS
    Model PRIME H510M-D/CSM
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 11th / 10th Gen Intel Core Processors*
    Supports Intel Pentium Gold and Celeron Processors*

    * Refer to www.asus.com for CPU support list.
    Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

    * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipsets
    Chipset Intel H510
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133*

    * 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
    * 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

    * Actual support may vary by CPU.
    PCI Express x1 1 x PCIe 3.0 x1
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

    * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
    Onboard Audio
    Audio Chipset Realtek ALC897/887
    Audio Channels 7.1 Channels*

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Onboard LAN
    LAN Chipset Intel I219-V
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x D-Sub port
    1 x HDMI port
    1 x Intel I219-V 1Gb Ethernet port
    3 x Audio jacks
    1 x COM port
    1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    1 x USB 2.0 header supports additional 2 USB 2.0 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin Chassis Fan header
    Miscellaneous
    1 x RGB header
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX
    LED Lighting RGB

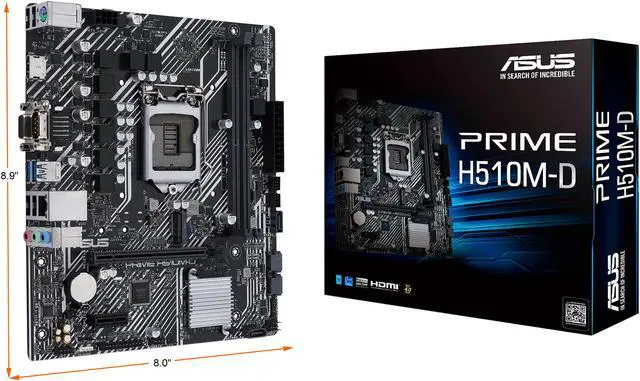

    Dimensions (W x L) 8.9" x 8.0"
    Power Pin 1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Features
    Features Special Features:
    ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    ASUS Lighting Control
    - RGB header

    Software Features:
    ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    Fan Xpert
    - EZ update
    ASUS CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode

    BIOS:
    128 Mb Flash ROM, UEFI AMI BIOS

    Manageability:
    WOL by PME, PXE

    Operating System:
    Windows 10 64bit
    Packaging
    Package Contents Accessories:
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x M.2 ANCHOR
    Installation Media
    1 x Support DVD
    Documentation
    1 x User manual
    1 x ACC Express Activation Key Card
