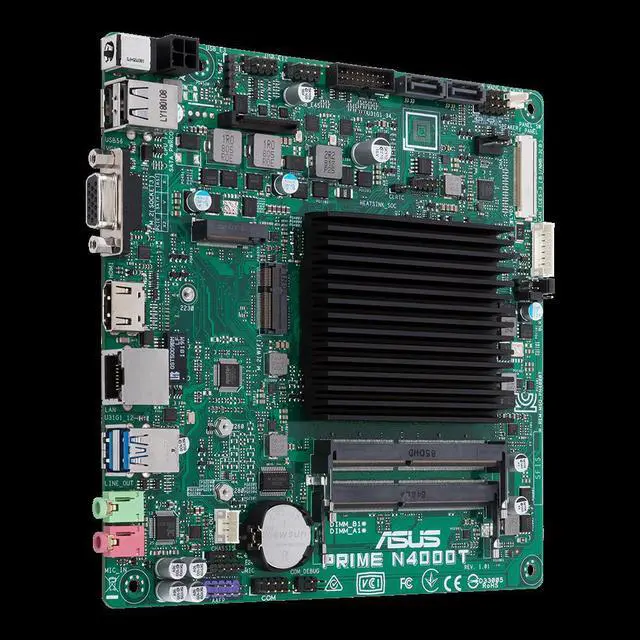

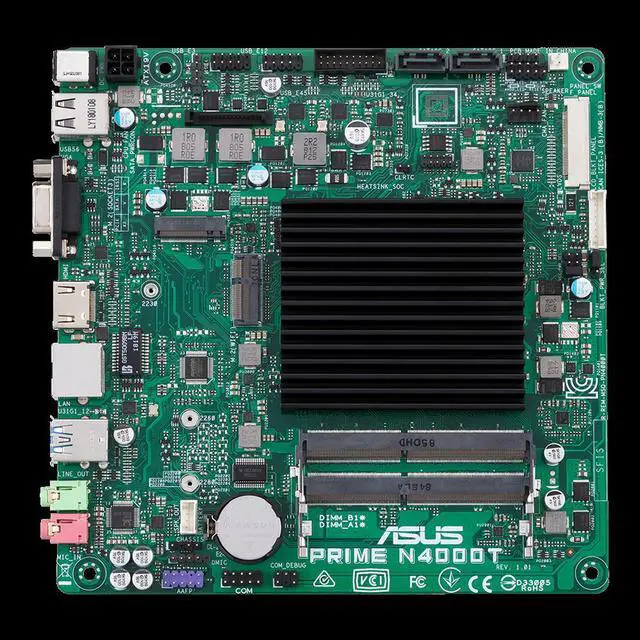

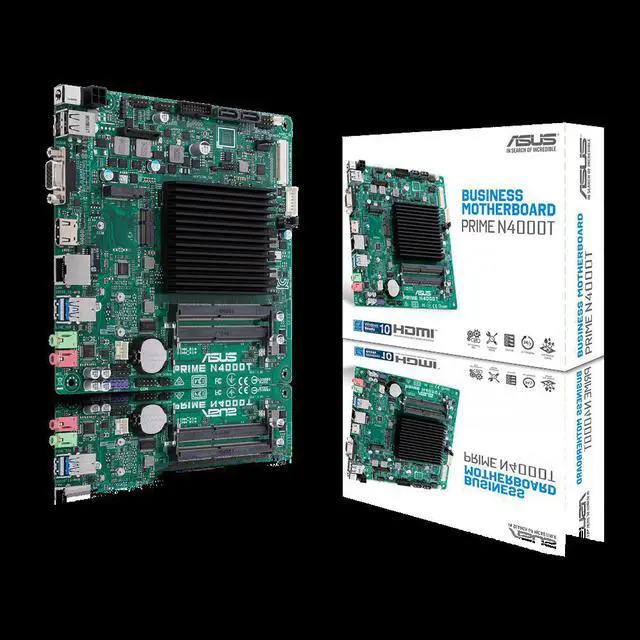

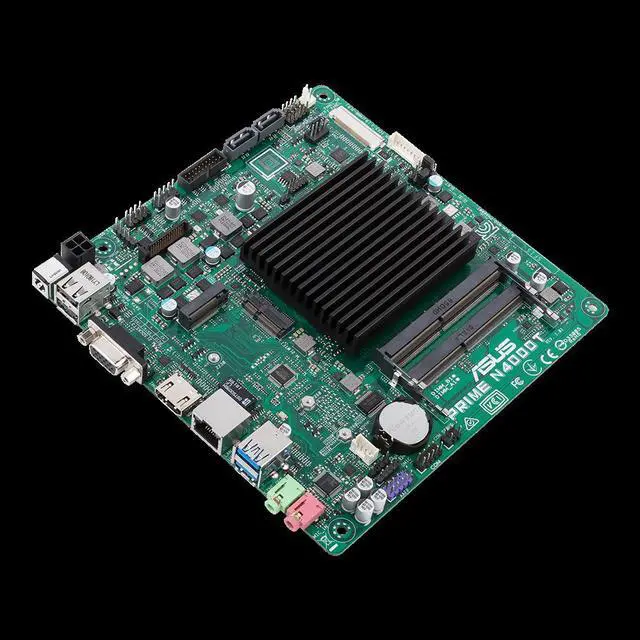

ASUS PRIME N4000T Thin Mini ITX business motherboard for Intel Celeron SoC N4000 processors, with enhanced security, reliability and manageability

CPU Intel® Celeron® Dual-Core N4000 SoC onboard Processors Memory 2 x SO-DIMM, Max. 8GB, DDR4 2400/2133/1866 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www. asus. com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor Multi-VGA output support: HDMI/LVDS/D-Sub ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB (for iGPU exclusively) Supports up to 3 displays simultaneously Expansion Slots 1 x M. 2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module* * The Wi-Fi/BT module is purchased separately
Storage Built-in Controller: 2 x SATA 6Gb/s port (s), 1 x M. 2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller (s) Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC -
Supports: Jack-detection, Front Panel Jack-retasking USB
Ports Built-in Controller: 4 x USB 3.1 Gen 1 port (s) (2 at back panel,, 2 at mid-board)
Built-in Controller: 7 x USB 2.0 port (s) (2 at back panel,, 5 at mid-board) Special Features Bespoke Motherboard Design & Business Focused Features: -
Overcurrent Protection: Short circuit prevention, protects your system -
ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen -
ASUS Event Log: Record activities of system and provides information in BIOS -
ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design -
Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7
Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design: -
Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
