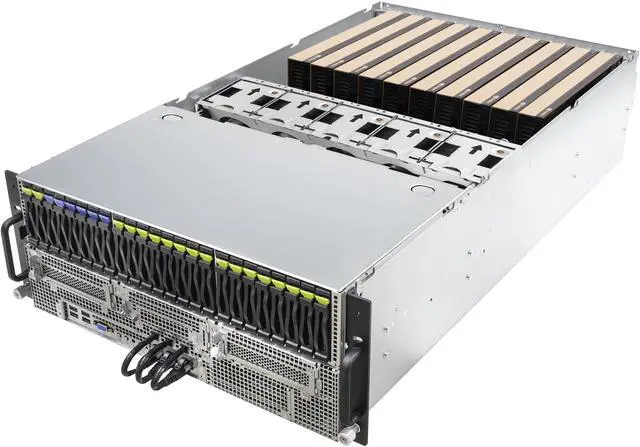

    ASRock Rack Server Barebone 4U10G-GNR2 4U Dual Socket E2 (LGA 4710), supports Intel Xeon 6700P-series, 6500P-series, and 6700E-series processors 10 GPU

    Be the first to review this product...
    • 4U Rackmount with 3+1, 80-PLUS Titanium, 3200W CRPS
    • Dual Socket E2 (LGA 4710), supports Intel Xeon 6700P-series, 6500P-series, and 6700E-series processors
    • 16+16 DIMM slots (2DPC), supports DDR5 RDIMM
    • 18 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
    • Up to 16 hot-swap 2.5" SATA/SAS* drive bays *Additional RAID/HBA card required
    • 10 FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch)
    • 1 FHFL single-slot PCIe5.0 x16 (CPU direct link), 2 FHHL PCIe5.0 x16
    • Supports 1 M.2 (PCIe5.0 x4)
    • 1 OCP NIC 3.0 (PCIe5.0 x16), 2 RJ45 (1GbE) by Intel i350
    • Remote Management (IPMI)
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Specs
    Reviews

    Learn more about the ASRock Rack 4U10G-GNR2

    General
    Brand ASRock Rack
    Model 4U10G-GNR2
    Form Factor 4U Rackmount
    Workload General Purpose Server
    CPU Supported
    CPU Type Supports Intel Xeon 6700P-series, 6500P-series, and 6700E-series
    CPU Socket LGA 4710
    Installed CPU No CPU Installed
    Max Processors 2
    CPU Features Thermal Design Power Up to 400W
    Memory Supported
    Memory Slots 32 x 288Pin
    Installed Memory Size No Memory Installed
    Max Memory Supported 128GB
    Memory Type Supported DDR5 6400
    Storage Supported
    Installed HDD No Storage Installed
    Graphics
    GPU/VPU Aspeed AST2600
    Expansion Slots
    PCI Express Rear:
    10 FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch)
    1 FHFL single-slot PCIe5.0 x16 (CPU direct link)
    Front:
    2 FHHL PCIe5.0 x16
    Communications
    First LAN Intel I350
    Max. LAN Speed 1 Gigabit
    Expansion Bays
    Hot-Swap Bays 18 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
    16 Hot-swap 2.5" SATA/SAS* drive bays
    Panel Ports
    Buttons Power button w/ LED, Reset button, NMI button, UID button
    LEDs System fault LED, HDD activity LED
    Front USB 2 x USB 3.2 Gen 1 Type-A
    VGA 1
    RJ45 2
    Power Supply
    Max. Power 3+1 CRPS 1000W @ 100-127Vac input / 3200W @ 200-240Vac input
    System
    BIOS Features AMI UEFI BIOS; 512Mb SPI Flash ROM
    Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash
    Cooling
    Fans 5 Middle Hot-swap 80x80 mm fans
    Environment
    Hardware Monitor CPU, MB, Card side Temperature Sensing
    Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
    Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
    Dimensions & Weight
    Dimensions 6.9" x 30.9" x 17.2"
    Additional Information
    First Listed on Newegg March 24, 2026
