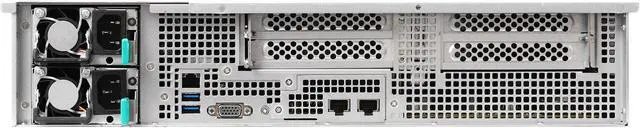

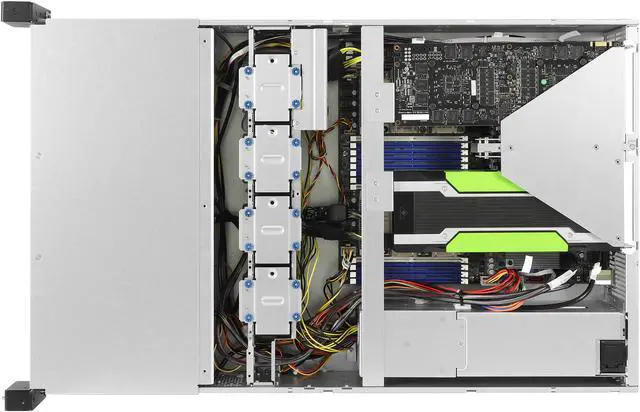

Asrock Rack 2U2G/C622 2U Rackmount Server Barebone Dual Socket LGA3647 Intel C622 2 GPU

2U rackmount with 1600W Redundant PSU (1+1)
Support Dual Socket P LGA 3647, support 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
Support 2 x GPGPU cards (Max 300w /per card)
support 8 x 3.5" HDD Hot-Swap Bay + 4 x 2.5" SATA HDDs or PCIE SSD(option) and 4 x Full-High PCIE card
Support 16 x DIMM slot, six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Support 2 x PCIe 3.0 x16 + 3 x Mezzanine slot(type A/B/C)
Support 12 x SATA3 + 1 x SATA DOM + 1 x M.2 port + 2 x OCuLink x4 for U.2
Support 1 x Dedicated IPMI
2GPU-Optimized Datacenter Server

Specs

Reviews

Learn more about the ASRock Rack 2U2G/C622

Model
Brand	ASRock Rack
Model	2U2G/C622

CPU Supported
CPU Type	Intel Xeon Scalable Processors (Max 205W)
CPU Socket	Dual Socket P
Installed CPU	No CPU Installed

Chipset
North Bridge	Intel C622

Storage Supported
Serial ATA	12 x SATA 600

Graphics
GPU/VPU	Aspeed AST2500
Video Memory	16MB

Panel Ports
Rear USB	2 x USB 3.1 Gen1
RJ45	1
Other Ports	SATA DOM: 1 M.2: 1 (2230/2242/2260/2280, support PCIE or SATA3 M.2(PCIEx4)) Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header: 1 IPMB Header: 1 Buzzer: 1 Fan Header: 2x CPU Fan, 6x system Fan (4-pin) ATX Power: 1 (24-pin) + 2 (8-pin) USB 3.1 (Gen1) Header: 1 ( support 2 USB 3.0) Type A USB 3.1 (Gen1) Port: 1 Mezzanine: 5 (type A x 2, type B (no PHY card support) x 2, type C x 1)

Power Supply
Max. Power	1200W 2U, Redundant

Details
Form Factor	2U Rackmount

Dimensions & Weight
Dimensions	28.15" x 17.64" x 3.39"
