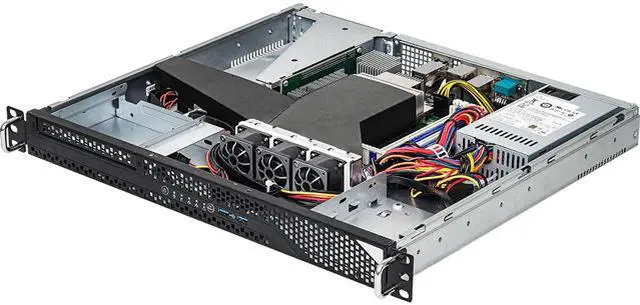

ASRock Rack 1U2LW-X570/2L2T 1U Rackmount Server Barebone AM4 AMD X570 DDR4 3200
- 1U Rackmount with 315W PSU
- Supports AMD Ryzen 5000 Series Desktop Processors
- 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each
- 2 fixed 3.5" drive bays
- 2 M.2 (PCIe4.0 x4)
- 1 FHHL PCIe4.0 x16
- On-board dual 10GbE RJ45 and dual 1GbE RJ45
- Remote management (IPMI)
+
+
Specs
Reviews
Learn more about the ASRock Rack 1U2LW-X570/2L2T
| Brand | ASRock Rack |
|---|---|
| Model | 1U2LW-X570/2L2T |
| Form Factor | 1U Rackmount |
| CPU Type | Supports AMD Ryzen 5000 Series Desktop Processors Supports AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics Supports AMD Ryzen PRO 4000 and 3000 Series Desktop Processors Supports 3rd Gen AMD Ryzen Desktop Processors Supports AMD Ryzen 3000 Series Processors with Radeon Graphics |
|---|---|
| CPU Socket | AM4 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | AMD X570 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 128GB |
| Memory Type Supported | DDR4 3200 |
| Installed HDD | No Storage Installed |
|---|
| GPU/VPU | Aspeed AST2500 |
|---|---|
| Video Memory | 16MB DDR4 |
| PCI Express | Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen 3000 Series Processors with Radeon Graphics |
|---|
| Max. LAN Speed | 1 Gigabit |
|---|
| 3.5" Bays | 2 fixed 3.5" SATA drive bays or 1 fixed 3.5" and 1 fixed 2.5" SATA drive bays |
|---|
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 2 |
| Max. Power | 315W 80-Plus Gold |
|---|
| Dimensions | 1.75" x 21.00" x 19.00" |
|---|
| First Listed on Newegg | January 26, 2023 |
|---|
