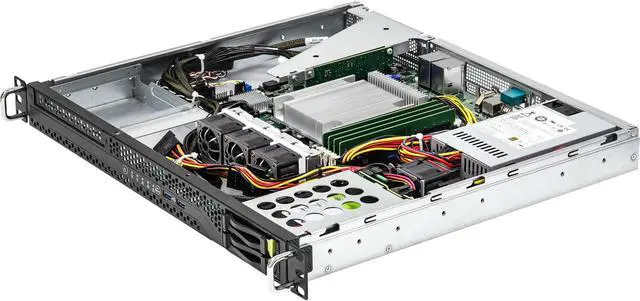

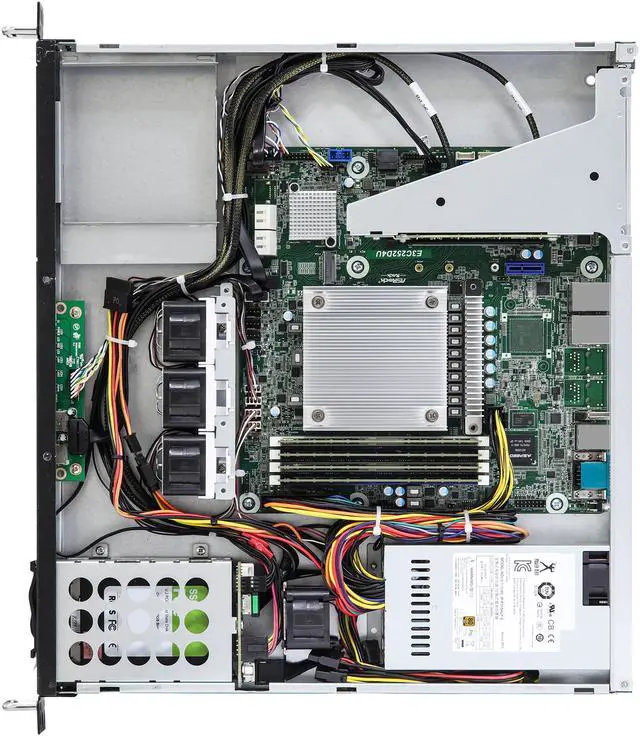

AsRock Rack 1U2E-C252 Server Barebone Intel Xeon E-2300 and 10th Gen Intel Pentium (LGA1200) C252 1U 2 Hot-swap 2.5'' SATA/NVMe
- 1U Rackmount with single 315W PSU
- Support Intel Xeon E-2300 and 10th Gen Intel Pentium series processors
- Support 2 x Hot-swap 2.5'' SATA/NVMe drive bays + 1 x fixed 3.5'' SATA drive bays or 1 Slim ODD (optional)
- Support 4 x DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- Support 1 x M.2 (PCIe3.0 x2 or SATA 6Gb/s) 22110/2280/2260 form factor
- *SATA0 will be disabled when M2_1 populated with SATA device
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated management GLAN
- Support VGA and HDMI
- General Purpose for SMB/Web Hosting/Edge Appliances
+
+
Specs
Reviews
Learn more about the ASRock Rack 1U2E-C252
| Brand | ASRock Rack |
|---|---|
| Model | 1U2E-C252 |
| Form Factor | 1U Rackmount |
| CPU Type | Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processor |
|---|---|
| CPU Socket | LGA 1200 |
| Installed CPU | No CPU Installed |
| North Bridge | Intel C252 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 128GB |
| Memory Type Supported | DDR4 3200 * Up to DDR4 2666 MHz when installing 10th Gen Intel Pentium Series Processors |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 1 M-key* (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor * SATA0 will be disabled when M2_1 populated with SATA device. |
| GPU/VPU | Aspeed AST2500 |
|---|---|
| Video Memory | 32MB |
| First LAN | Intel i210 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| 2.5" Bays | 1 fixed 3.5'' SATA drive bay or 1 Slim ODD (optional) |
|---|---|
| Hot-Swap Bays | 2 Hot-swap 2.5" SATA/NVMe drive bays |
| Front USB | 2 USB3.0 ports |
|---|---|
| COM | 1 |
| VGA | 1 |
| Rear USB | 4 USB3.2 Gen1 ports |
| RJ45 | 2 RJ45 (1GbE) by Intel i210 1 dedicated IPMI |
| Other Ports | 1 HDMI |
| Max. Power | 315W |
|---|

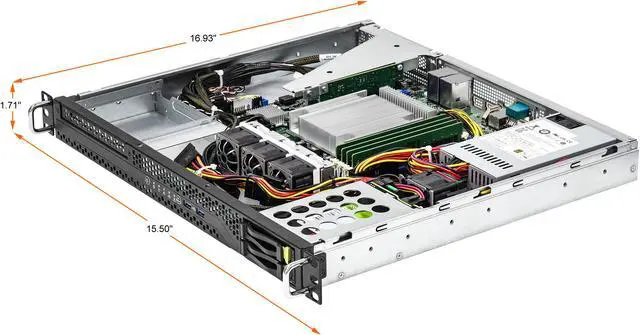

| Dimensions | 1.71" x 15.50" x 16.93" |
|---|
| First Listed on Newegg | July 05, 2023 |
|---|
