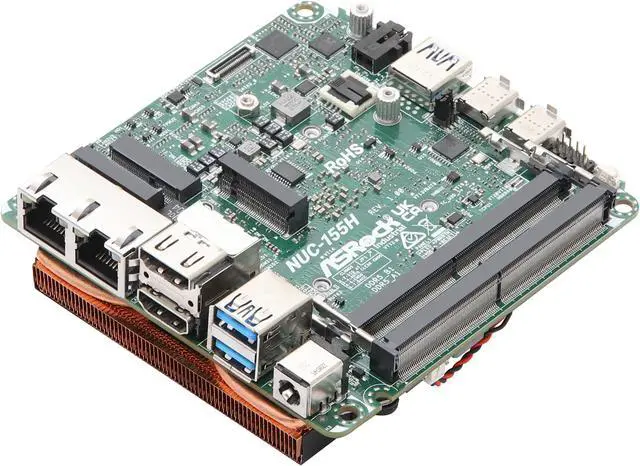

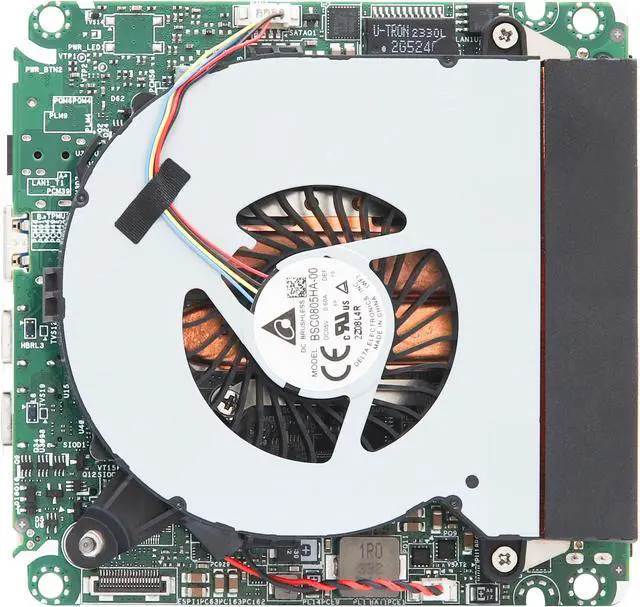

ASRock Industrial NUC Ultra 100 Motherboard - NUC-155H R2
- Intel Core Ultra processors (Meteor Lake-U/H)
- 2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
- 1 x USB4/Thunderbolt4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
- Intel PTT
- Supports Intel vPro, VMD RAID 0/1
- 12V~24V DC-in
+
+
Specs
Reviews
Learn more about the ASRock Industrial NUC-155H R2
| Brand | ASRock Industrial |
|---|---|
| Model | NUC-155H R2 |
| CPU Type | Intel Core Ultra 7 155H |
|---|
| Number of Memory Slots | 2x262pin |
|---|---|
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Serial ATA (SATA) | 1 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD |
| SATA RAID | Intel VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2 x M.2 Key M |
| Audio Chipset | Realtek ALC256 |
|---|
| LAN Chipset | Intel I226LM with 10/100/1000/2500 Mbps |
|---|---|
| Second LAN Chipset | Intel I226V with 10/100/1000/2500 Mbps |
| Max LAN Speed | 2 x 2.5Gbps |
| Wireless LAN | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| Back I/O Ports | Front I/O USB - 1 x USB 3.2 Gen2 (Type A) - 1 x USB4/ThunderboltTM 4 (5V/3A, Supports DP 2.1 display output) - 1 x USB3.2 gen2x2 (Type-C, 5V/3A, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. Audio: 1 (headphone & microphone jack) Rear I/O HDMI: 2 x HDMI 2.1 TMDS USB: 2 x USB 3.2 Gen2 (Type A) Ethernet: 2 x 2.5 Gigabit LAN DC Jack: 1 |
|---|
| Onboard USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| Other Connectors | 1 x COM(RS-232/RS-422/RS-485) |
| Form Factor | NUC |
|---|---|
| Dimensions (W x L) | 4.1" x 4.0" |
| First Listed on Newegg | November 01, 2024 |
|---|
