$498.08
Ships from United States.
Most customers receive within 4-17 days.
Meet Your Seller

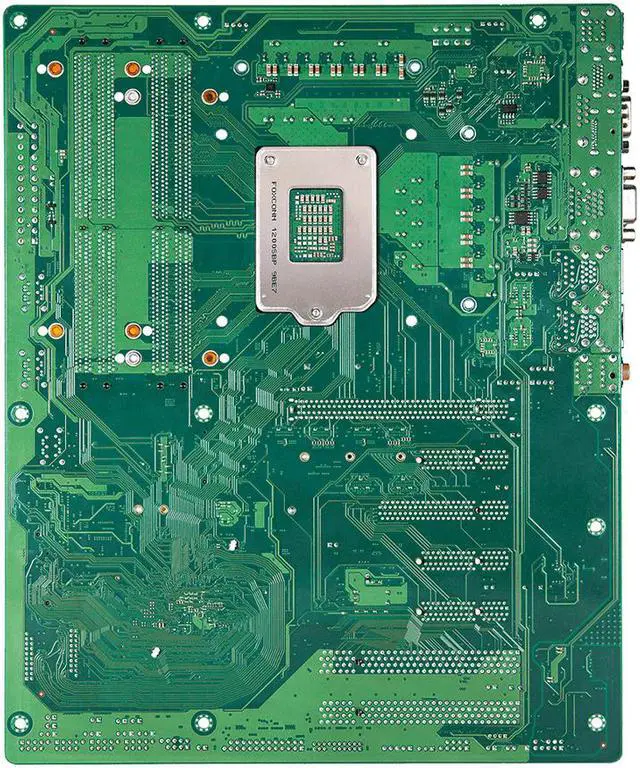

ASRock Industrial IMB-1711 Intel® Q470E Dual LAN TPM 2.0 Intel® SATA RAID 0/1/5/10 Triple Display LGA 1200 ATX Motherboard
- Intel 10th Gen (Cometlake-S) Core Processors with Q470E chipset
- 4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB
- 1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 3 x PCIe x4 Gen3, 2 x PCI
- 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
- 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 6 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x HDMI 2.0a
- TPM 2.0 onboard
- Supports Intel vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+8-pin)
+
+
Specs
Reviews
Learn more about the ASRock Industrial IMB-1711
| Brand | ASRock Industrial |
|---|---|
| Model | IMB-1711 |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel 10th Gen (Comet lake-S) Core Processors, up to 125W |
| Chipset | Intel Q470E |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe Gen3 Slots (PCIE1 / PCIE2 / PCIE3: Single at x16 (PCIE1); Dual at x8 (PCIE1) / x8 (PCIE3); Triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3)) |
|---|---|
| PCI Express x4 | 2 x PCIe x4 (Gen3) |
| PCI Express x1 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM socket for 4G / 5G |
| Other Slots | 1 x SIM socket connected to M.2 Key B |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD * Shared with SATA3_5 / SATA3_6 Ports - When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled - When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available |
| SATA RAID | Intel SATA RAID 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|
| LAN Chipset | Intel I225LM with 10/100/1000/2500 Mbps |
|---|---|
| Second LAN Chipset | Intel I219LM with 10/100/1000 Mbps, support AMT / vPro |
| Max LAN Speed | 2.5Gbps + 1Gbps |

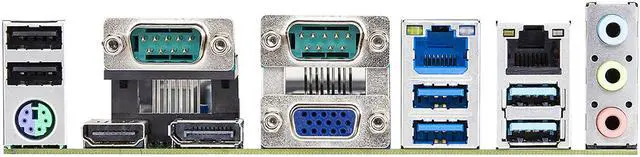

| Back I/O Ports | 1 x HDMI 2.0a 1 x DP 1.2 1 x VGA 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN 4 x USB 3.2 Gen2, 2 x USB 2.0 3 x Line-In, Line-Out, Mic-In 2 x COM (RS-232/422/485) 1 x PS2 |
|---|
| Onboard USB | 4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| Other Connectors | 4 x COM (RS-232) 1 x Parallel 8 x GPI, 8 x GPO (shared with LPT header) TPM 2.0 onboard 1 x Speaker Header |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | ATX PWR (24+8-pin) |
| First Listed on Newegg | July 05, 2023 |
|---|
