ASRock Industrial IMB-1231 Intel® Q670 Dual LAN TPM 2.0 Intel® VMD RAID 0/1/5/10 Quad Display LGA 1700 Mini ITX Motherboard
- Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core Processors with Q670 chipset
- 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA
- TPM 2.0 onboard IC
- Supports Intel vPro, AMT, VMD RAID 0/1/5/10
- ATX-PWR (24+4-pin) and +12V DC-In co-design
+
+
Specs
Reviews
Learn more about the ASRock Industrial IMB-1231
| Brand | ASRock Industrial |
|---|---|
| Model | IMB-1231 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports Intel 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core Processors, up to 65W |
| Chipset | Intel Q670 |
|---|
| Number of Memory Slots | 2x260pin |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB (32 GB per DIMM) |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe x16 (Gen4, Support riser card x8/x8) |
|---|---|
| PCI Express x1 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G/5G |
| Other Slots | 1 x Socket connected to M.2 Key B |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD* *Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS) |
| SATA RAID | Intel VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) |
| Audio Chipset | Realtek ALC897 |
|---|
| LAN Chipset | Intel I225LM with 10/100/1000/2500 Mbps, support AMT/vPro |
|---|---|
| Second LAN Chipset | Intel I225LM with 10/100/1000/2500 Mbps |
| Max LAN Speed | 2 x 2.5Gbps |

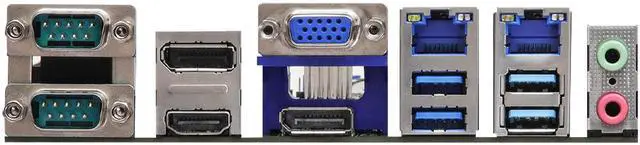

| Back I/O Ports | 1 x HDMI 2.0b 2 x DP 1.4a++ 1 x VGA 2 x 2.5 Gigabit LAN 4 x USB 3.2 Gen2 2 x Mic-in, Line-out COM1, COM2 (RS-232/422/485) |
|---|
| Onboard USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| Other Connectors | COM3, COM4, COM5 (RS-232) 4 x GPI, 4 x GPO TPM 2.0 onboard IC 1 x LVDS 1 x eDP 1 x SATA PWR Output 1 x Speaker Header |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | ATX PWR (24+4-pin) and +12V DC-In co-design |
| First Listed on Newegg | February 22, 2026 |
|---|
