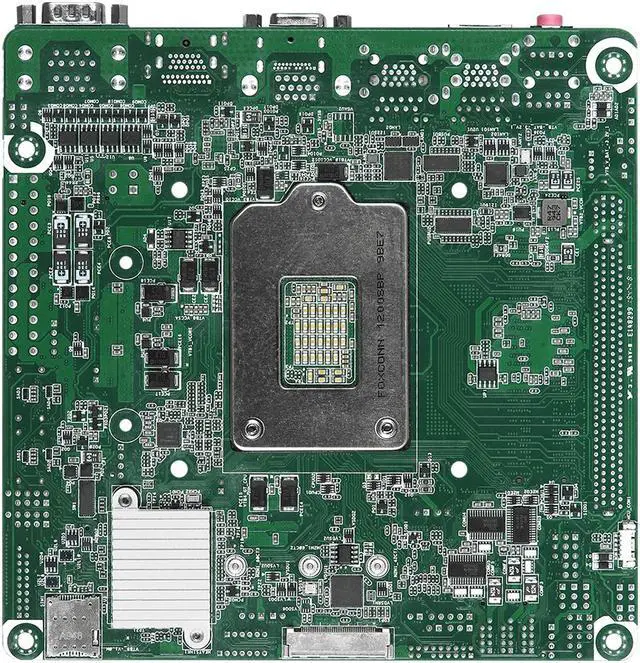

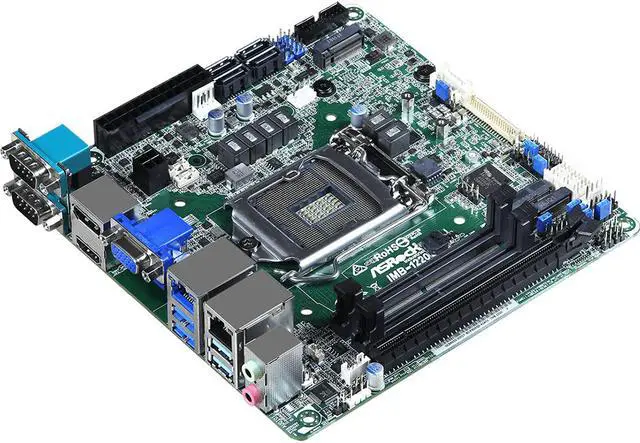

ASRock Industrial IMB-1220-D Intel® Q470E Dual LAN TPM 2.0 Intel® SATA RAID 0/1/5/10 Triple Display LGA 1200 Mini ITX Motherboard
- Intel 10th Gen (Comet lake-S) Core Processors with Q470E chipset
- 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
- 1 x PCIe x 16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 5 x COM, 4 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Support Triple display, 2 x DP 1.2, 1 x eDP, 1 x HDMI 2.0a
- TPM 2.0 onboard
- Special Feature: Supports Intel vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+4-pin)
+
+
Specs
Reviews
Learn more about the ASRock Industrial IMB-1220-D
| Brand | ASRock Industrial |
|---|---|
| Model | IMB-1220-D |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel 10th Gen (Comet lake-S) Core Processors, up to 80W *The performance of CPUs over 80W will be limited due to power design. |
| Chipset | Intel Q470E |
|---|
| Number of Memory Slots | 2x260pin |
|---|---|
| Memory Standard | DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz |
| Maximum Memory Supported | 64GB (32 GB per DIMM) |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe x 16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4) |
|---|---|
| PCI Express x1 | 1 x M.2 (Key E, 2230) with PCIe x 1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042) with PCIe x 1 / USB 3.2 Gen1 / USB2.0 and SIM for 4G / 5G |
| Other Slots | 1 x SIM socket connected to M.2 Key B |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x 4 or SATA3 |
| SATA RAID | Intel SATA RAID 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|
| LAN Chipset | Intel I225LM with 10/100/1000/2500 Mbps |
|---|---|
| Second LAN Chipset | Intel I219LM with 10/100/1000 Mbps, support AMT / vPro |
| Max LAN Speed | 2.5Gbps + 1Gbps |

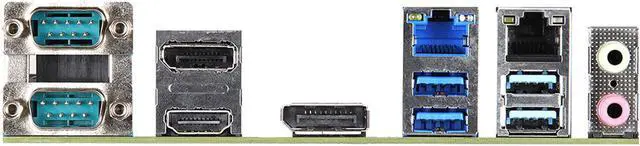

| Back I/O Ports | 1 x HDMI 2.0a 2 x DP 1.2 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN 4 x USB 3.2 (Gen1) 2 x Mic-in, Line-out 2 x COM (RS-232/422/485) |
|---|
| Onboard USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| Other Connectors | 3 x COM (RS-232) 4 x GPI, 4 x GPO TPM 2.0 onboard 1 x eDP 1 x Speaker Header 1 x SATA PWR Output |
| Windows 11 | Supported |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | ATX PWR (24+4-pin) |
| First Listed on Newegg | August 03, 2023 |
|---|
