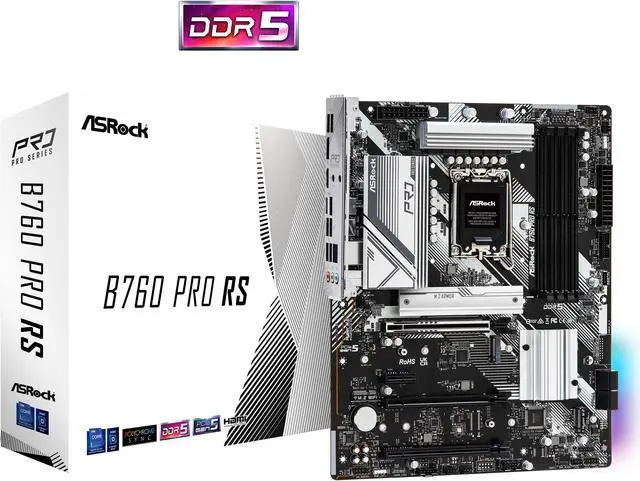

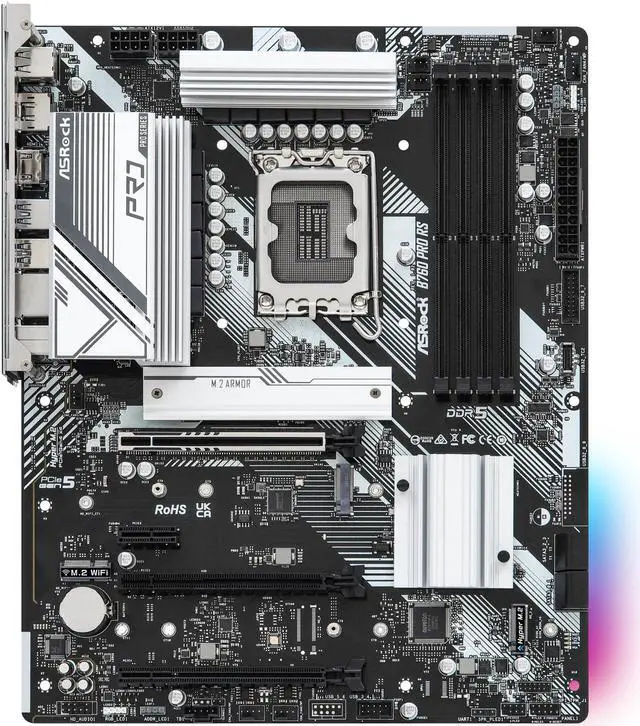

    ASRock B760 Pro RS LGA 1700 DDR5 ATX Motherboard

    (138)(19) Write a Review
    • B760M Steel Legend WiFi
    • B760 Pro RS
    • B760 Pro RS/D4
    • B760M-HDV/M.2 D4
    • Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
    • Supports DDR5 6800MHz (OC)
    • Vcore with Dr. MOS design, delivering smoother and neater power to the CPU
    • PCIe Gen5 Technology ready to unleash the full potential of future high end graphics cards
    • USB 3.2 Gen Type-C that delivers up to 10Gbps data transfer rate
    • Enjoy the faster connectivity experience for gaming, file transfers and backups
    +
    +
    Specs
    Reviews (138)

    Learn more about the ASRock B760 Pro RS

    Model
    Brand ASRock
    Model B760 Pro RS
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
    Chipsets
    Chipset Intel B760
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 4800
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Memory Feature Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
    1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
    1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
    2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
    2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    - Supports Intel Extreme Memory Profile (XMP) 3.0
    * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
    Expansion Slots
    PCI Express 5.0 x16 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    PCI Express 3.0 x16 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*
    PCI Express x1 1 x PCIe 3.0 x1 Slot (PCIE2) *

    * Supports NVMe SSD as boot disks
    - Supports AMD CrossFire
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    * Supports Intel Volume Management Device (VMD)
    * Supports NVMe SSD as boot disks
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps
    Rear Panel Ports
    Back I/O Ports 2 x Antenna Mounting Points
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    4 x USB 3.2 Gen1 Ports
    2 x USB 2.0 Ports
    1 x RJ-45 LAN Port
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
    Other Connectors 1 x eDP Signal Connector
    1 x SPI TPM Header
    1 x Power LED and Speaker Header
    2 x RGB LED Headers*
    2 x Addressable LED Headers**
    1 x CPU Fan Connector (4-pin)***
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    1 x Front Panel Audio Connector
    1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

    * Support in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    **** CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
    ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24 pin ATX Power Connector
    2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    Features
    Features Superb Productivity
    - PCIe Gen5 (Graphics)
    - Dual Channel DDR5
    Rock-Solid Durability
    - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
    - Pre-Installed I/O Shield
    Ultrafast Connectivity
    - 2.5G LAN
    EZ Update
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock Post Status Checker
    Packaging
    Package Contents 1 x User Manual
    2 x SATA Data Cables
    4 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
