Specifications: Pro3000 Analog Toner Specifications
Slide switch selects Continuity or Tone Mode
Push button switch selects SOLID, ALT or OFF
Tone mode LED
1000 Hz nominal
1000/1500 Hz nominal
Over Voltage Protection:
60 Vdc in Toner/Polarity Mode
Output Power in Tone Mode:
8 dbm into 600 ohms
Output Voltage Level in Continuity Mode:
8 Vdc with fresh battery
Operating: -20° C to 60° C, Storage: -40° C to 70° C
2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
The Pro3000’s ergonomic sleek design is easy to handle and use. The large speaker on the probe makes the tone easier to hear through walls, enclosures, wood or plaster. A recessed on/off button helps prevent the probe from accidentally bei...

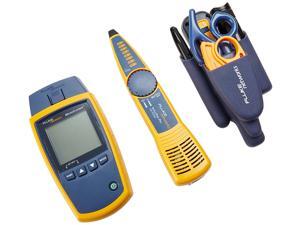

Specifications: Test Services:
Graphical wiremap, length, cable ID, and distance to fault displayed on one screen.
Tests all common media types including RJ11, RJ45, Coax, with no need for adapters.
Locates virtually any cable or wire pair with IntelliTone digital and analog toning.
Verifies today's media services, including 10/100/1000 Ethernet, POTS, and PoE.
Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs.
Large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet.
Length Measurement: 11.81" to 1509 ft
Ports: RJ-45 10/100/1000Base-T Network
Connectivity Media: UTP
Display Screen: Monochrome LCD with backlight
Batteries: AA Standard
Dimensions: 3.00" x 6.40" x 1.40"
Weight (Approximate): 12.80 oz

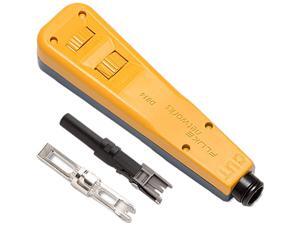

Specifications: The versatile D914™ series impact tools include built-in probe pic/spudger and torque capability.
Industry standard, internationally accepted
Hook and spudger tools are built into the handle
Automatic spring handle --choose low impact for 24/26 gauge wire or high impact for 22-gauge wire
D914 and D914S impact tools accept Phillips-head or flat screwdriver blade
Convenient blade storage built into the handle
Adapter blade allows technician to use a variety of torque tool bits and sockets
Easy blade insertion, locks in place
D914STM soft touch impact tool features a rubber handle and special ergonomic design for better grip and to reduce hand fatigue
Specifications: Test Services:
Detects IntelliTone digital signal and 1 kHz signal from analog toners.
Features a CABLEMAP capability that identifies common cable miswires such as opens, shorts, and reversed pairs in twisted pair cabling.
Ports: 1 x RJ-45 10/100Base-TX Network
8 LED indicators
1 Synch LED indicator
Batteries: Alkaline Battery
Battery Life: 20 Hour Typical
Input Voltage: 9 V DC Battery
32°F (0°C) to 104°F (40°C) Operating
-4°F (-20°C) to 140°F (60°C) Storage
Dimensions: 8.73" x 1.88" x 1.26"
IntelliTone 200 Probe
RJ-11 and RJ-45 patch cables
Quick start guide
9 volt battery
Additional Information: POTS telecom service available
Altitude: 3000 m
Operating Relative Humidity:
95 % (50 °F to 95 °F ; 10 °C to 35 °C)
75 % (95...

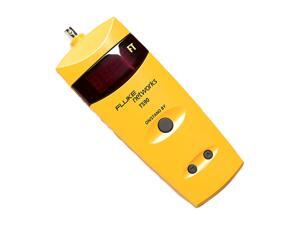

Specifications: Device Function: Short Circuit Testing
Maximum Length Measurement: 2500 ft
Number of BNC Ports: 1
4 AA alkaline batteries provide 50 hours "on" time

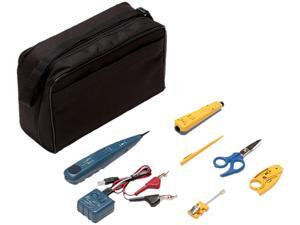

Specifications: These kits contain essential industry standard telecommunications tools and test equipment.
D814 industry standard punchdown tool for reliable terminations
EverSharp 66/110 cut blade provides flexibility for different block and jack terminations
Cable Stripper quickly rings and slits many types of cable
Use the Probe Pic to check for loose or damaged connections
Cut and strip wire cleaner and faster with the Electricians D-Snips
Connect to jacks for testing with the standard 4-Wire Modular Adapter
A soft zippered pouch keeps your tools all in one convenient place
Fluke Networks' Electrical Contractor Telecom Kits are comprised of industry standard telecommunications tools and test equipment, in a durable cordura case. The kits are designed for technicians who install, test and troubleshoot phone and data lines.
Includes a Pro3000 Analog Ton...
Specifications: Test Services:
High Speed Testing
Generation of two tones for tracing cables and locating hidden cables
15.75" to 656 ft Twisted Pair
Ports: 1 x RJ-45
5 green LEDs for pairs and shield display
6 red LEDs (TONER, SHORT, REVERSED, MISWIRE, SPLIT PAIRS, and LOW BATTERY)
Batteries: Alkaline AAA
Generation of two tones for tracing cables and lication hidden cables
MicroMapper MT-8200-49A Network Testing Device
6-Volt Alkaline Battery
The MicroMapper quickly and easily tests twisted pair cabling, giving you visibility of opens, shorts, crossed, reversed and split pairs. Just push the TEST button and MicroMapper will automatically scan all wire pairs for any existing faults...
Specifications: Application/Usage: Cable Termination
Unique design easily accommodates close-to-wall installation.
Replaceable blade head for use with multiple jack types.
For Leviton 61110, 5G110, 6110G.

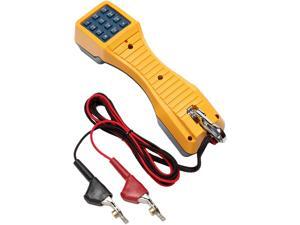

Specifications: The TS®30 Test Set top features include:
High impedance monitor mode
Automatic regulation of speech levels
Tone and pulse operation
Last number redial in tone and pulse modes
RainSafe™ weather protection for use in extreme weather conditions
Hook flash button
Fully functional with either line polarity
Audible electronic ringer for call backs
High current and over voltage protection
High impact polycarbonate case
Field replaceable spring-loaded belt clip
Hearing aid compatible receiver
Transmitter Mute switch
Talk and Monitor modes
Lightweight unit is easily transported
2.4 kOmaximum at 48 VDC (nominal 15 mA minimum loopcurrent)
DC Resistance (Talk Mode)
150 Otypical at 80 mA current
AC Impedance (Monitor Mode)
Low impedance (Ring position) 600 Oat 1 KHz typical
High impedance (HI Z position) 100 kOminimum at 1 KHz
Rotary Dial Output
10 pps .5 pps
Pulsing Rate 60 % ± 2 %
Percent Break 800 ms typical
Interdigit Interval Leakage During Break
> 50 kO
±1 % maximum
Tone Frequency Error Level per Tone Pair
dBm maximum, - dBm minimum
High versus Low Tone Difference
4 dB maximum
8.75 in (22.2 cm)
2.375 in (6.03 cm)
3.375 in (8.57 cm)
10.8 oz (.307 kg) maximum
Operating: -5 °C to °C
Storage: -40 °C to °C
1 meter, 4 times
To 3,000 meters (10,000 feet) maximum
10 %to 80 % (non...
