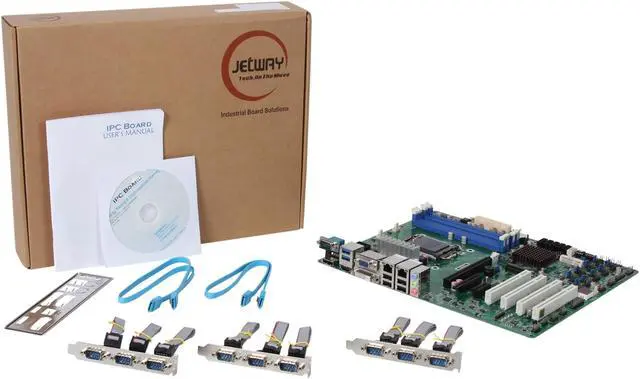

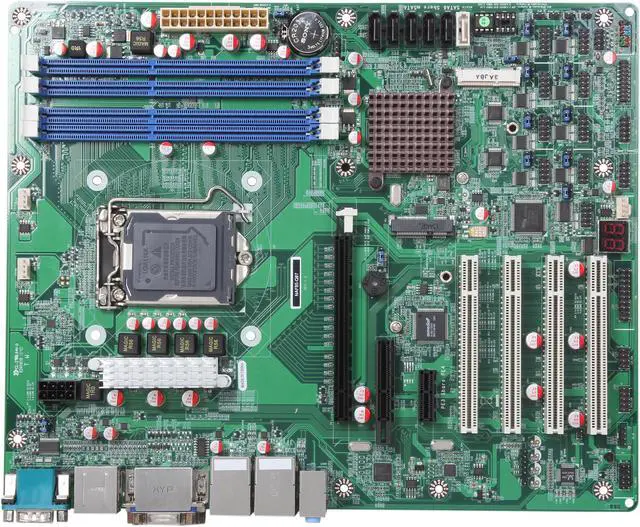

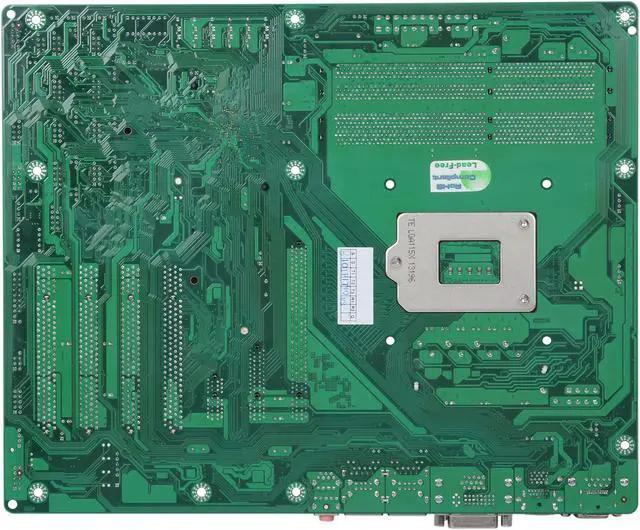

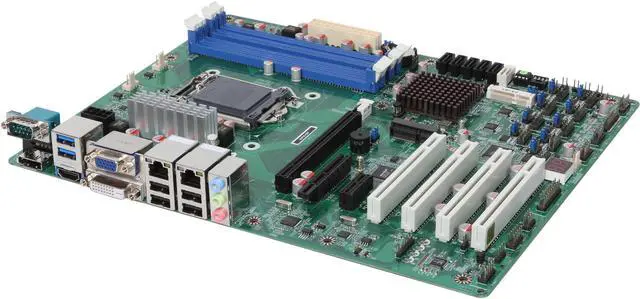

JetWay JNAF95-Q87 LGA 1150 Intel Q87 HDMI USB 3.0 ATX Intel Motherboard

(2) Write a Review
  • Intel Q87
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • DDR3 1600
Specs
Reviews (2)

Learn more about the JETWAY JNAF95-Q87

Model
Brand JetWay
Model JNAF95-Q87
Supported CPU
CPU Socket Type LGA 1150
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Chipsets
Chipset Intel Q87
Onboard Video
Onboard Video Chipset Intel HD 4000/5000 Graphics
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x4 1 x PCI Express x4
PCI Express x1 1 x PCI Express x1
PCI Slots 4 x PCI Slots
Mini Card Slots 1 x Mini PCIe
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Audio
Audio Channels 5.1 Channels
Onboard LAN
LAN Chipset Intel 82574L
Second LAN Chipset Intel I217-LM
Max LAN Speed 1Gbps
Rear Panel Ports

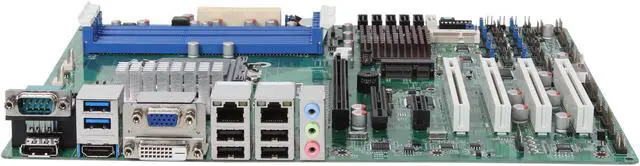

Back I/O Ports 1 x DisplayPort / 1 x HDMI / 2 x USB 3.0 / 4 x USB 2.0/1.1
COM 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
RJ45 2 x RJ45
DisplayPort 1 x DisplayPort
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors CPU Fan connector
2 x SYSFAN connectors
1 x PS/2 Mouse/Keyboard connector
9 x Serial port headers (8 x RS232, 1 x RS232/422/485)
8-bit GPIO
TPM 1.2 Header
CIR Header
Chassis Intrusion Header
24-pin ATX and 8-pin 12V_ATX Power connectors
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.01" x 9.61"
Features
Features Long-Life Embedded Class Industrial Motherboard with Planned Lifecycle Through Q4’2018

Socket LGA1150 Supporting 4th Generation Intel Core i3, i5, i7 Processors (Haswell), Intel Q87 Express Chipset

Intel HD 4000/5000 Graphics, DirectX 11.1, Supports up to Three Independent Displays, DisplayPort, HDMI, DVI, VGA

Supports DDR3-1600 DIMM up to 32GB Total

6 x SATA3 6Gb/s ports supporting RAID 0, 1, 5, 10, JBOD

1 x Shared mSATA/mini-PCIE Slot, 1 x mini-PCIE slot

Dual Intel Gigabit LAN, Intel iAMT 9.0 Support

PCI Express 3.0 x16, PCI Express x4, PCI Express x1, 4 x PCI

10 x Serial Ports, TPM 1.2 Header, Watchdog Timer

Compatible with Win XP, Win 7, Win 8, Linux

ATX Form Factor (305mm x 244mm)
Additional Information
First Listed on Newegg August 26, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
