ZOTAC Twin Edge OC GeForce RTX 5060 8GB GDDR7 PCI Express 5.0 x8 ITX Video Card ZT-B50600H-10A

Be the first to review this product...
  • 8GB 128-Bit GDDR7
  • Core Clock 2527 MHz
  • 1 x HDMI 2.1b 3 x DisplayPort 2.1b
  • 3840 CUDA Cores
  • PCI Express 5.0 x8
+
+
Specs
Reviews

Learn more about the ZOTAC ZT-B50600H-10A

Model
Brand ZOTAC
Series Twin Edge OC
Model ZT-B50600H-10A
Interface
Interface PCI Express 5.0 x8
Chipset
Chipset Manufacturer NVIDIA
GPU Series NVIDIA GeForce RTX 50 Series
GPU GeForce RTX 5060
Core Clock 2527 MHz
CUDA Cores 3840
Memory
Effective Memory Clock 28000 MHz (28 Gbps)
Memory Size 8GB
Memory Interface 128-Bit
Memory Type GDDR7
3D API
DirectX DirectX 12 Ultimate
OpenGL OpenGL 4.6
Ports
Multi-Monitor Support 4
HDMI 1 x HDMI 2.1b

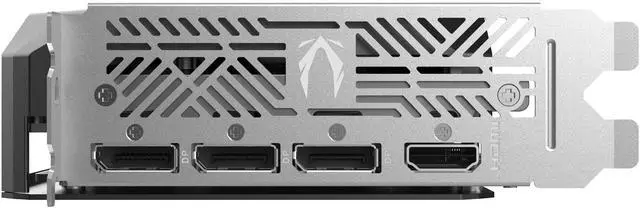

DisplayPort 3 x DisplayPort 2.1b
Details
Color Black
AI Features AI Ready
DLSS Support DLSS 4.0
Max Resolution 7680 x 4320
Virtual Reality Ready Yes
Cooler Air Cooler
Operating Systems Supported Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Thermal Design Power 145W
Recommended PSU Wattage 550W
Power Connector 1 x 8-pin power input
Form Factor & Dimensions
Form Factor ITX
Max GPU Length 220.5 mm
Card Dimensions (L x H) 8.7" x 4.7"
Slot Width 2 Slots
Additional Information
First Listed on Newegg April 01, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Standard Return Policy.
  • 15% restocking fee may apply.
  • Read full return policy for details.
