Learn more about the ZOTAC RTX 5090 SOLID OC
Model| Brand | ZOTAC |
|---|
| Series | SOLID OC |
|---|
| Model | RTX 5090 SOLID OC |
|---|
| Part Number | ZT-B50900J-10A |
|---|
Interface| Interface | PCI Express 5.0 x16 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
|---|
| GPU | GeForce RTX 5090 |
|---|
| Architecture | Blackwell |
|---|
| Boost Clock | 2422 MHz |
|---|
| CUDA Cores | 21760 Cores |
|---|
Memory| Effective Memory Clock | 28 Gbps |
|---|
| Memory Size | 32GB |
|---|
| Memory Interface | 512-Bit |
|---|
| Memory Type | GDDR7 |
|---|
3D API| DirectX | DirectX 12 Ultimate |
|---|
| OpenGL | OpenGL 4.6 |
|---|

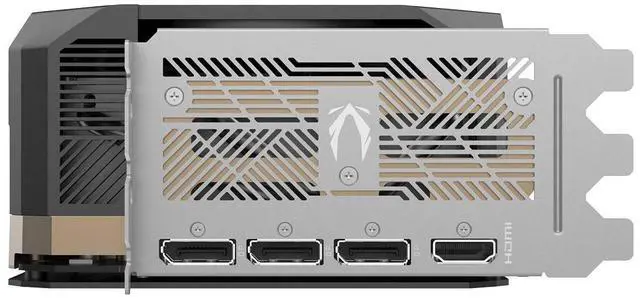

Ports| Multi-Monitor Support | 4 |
|---|
| HDMI | 1 x HDMI 2.1b |
|---|
| DisplayPort | 3 x DisplayPort 2.1b |
|---|
Details| Color | Black |
|---|
| Max Resolution | 7680 x 4320 |
|---|
| CrossFireX Support | No |
|---|
| SLI Support | No |
|---|
| Virtual Reality Ready | Yes |
|---|

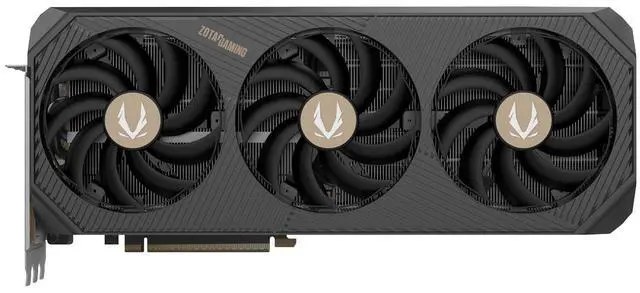

| Cooler | Triple Fans |
|---|
| Operating Systems Supported | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
|---|
| Thermal Design Power | 575W |
|---|
| System Requirements | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
|---|
| Recommended PSU Wattage | 1000W |
|---|
| Power Connector | 1 x 16-Pin |
|---|
| HDCP Ready | Yes |
|---|
Features| Features | KEY FEATURES • NVIDIA Blackwell Architecture • 5th Generation Tensor cores • 4th Generation RT cores • NVIDIA DLSS 4 • Game Ready and NVIDIA Studio Drivers • NVIDIA® GeForce Experience™ • NVIDIA Broadcast, NVIDIA G-SYNC |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 330 mm |
|---|
| Card Dimensions (L x H) | 13x5.4x2.7 inch |
|---|
| Slot Width | 3.5 Slots |
|---|

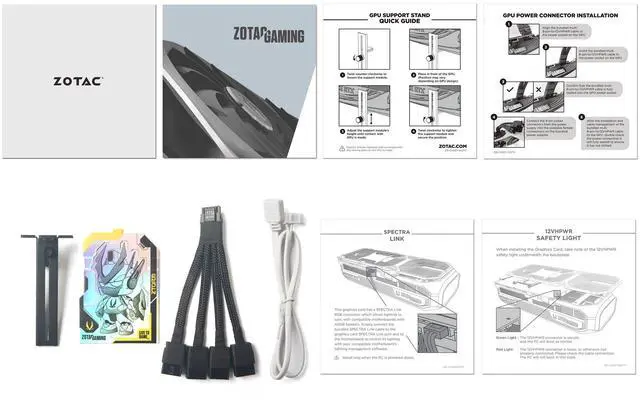

Packaging| Package Contents | INSIDE THE BOX • ZOTAC GAMING GeForce RTX 5090 SOLID OC • User Manual • 4 x 8-pin-to-16-pin cable • SPECTRA LINK cable • GPU Support Stand |
|---|
Additional Information| First Listed on Newegg | February 10, 2026 |
|---|
