32GB 512-Bit GDDR7 Boost Clock 2467 MHz 1 x HDMI 2.1 b 3 x DisplayPort 2.1 b 21760 Cores CUDA Cores PCI Express 5.0 x16 4 x 8-pin-to-16-pin cable included
Learn more about the ZOTAC 5090 AMP Extreme INFINITY 32GB
Model
Brand
ZOTAC
Series
AMP Extreme INFINITY
Model
5090 AMP Extreme INFINITY 32GB
Part Number
ZT-B50900B-10P
Interface
Interface
PCI Express 5.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 50 Series
GPU
GeForce RTX 5090
Architecture
Blackwell
Boost Clock
2467 MHz
CUDA Cores
21760 Cores
Memory
Memory Size
32GB
Memory Interface
512-Bit
Memory Type
GDDR7
3D API
DirectX
DirectX 12 Ultimate
OpenGL
OpenGL 4.6
Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.1b
DisplayPort
3 x DisplayPort 2.1b
Details
Max Resolution
7680 x 4320
CrossFireX Support
No
SLI Support
No
Virtual Reality Ready
Yes
Cooler
Triple Fans
Thermal Design Power
600 W
System Requirements
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Recommended PSU Wattage
1000W
Power Connector
1 x 16-Pin
Form Factor & Dimensions
Form Factor
ATX
Max GPU Length
332.1 mm
Card Dimensions (L x H)
332.1 x 137.5 x 69.6mm
Slot Width
3.5 Slots
Packaging
Package Contents

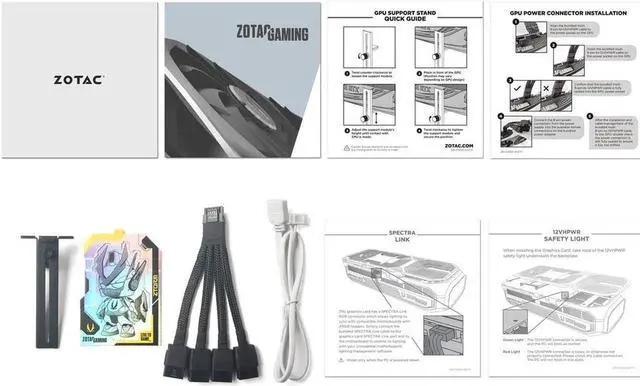

User Manual 4 x 8-pin-to-16-pin cable SPECTRA LINK cable GPU Support Stand
Additional Information
First Listed on Newegg
May 23, 2025
