    Yottamaster 10Gbps 5 Bay USB C Hard Drive Enclosure Daisy Chain, Type-C External HDD Enclosure Support 2.5" & 3.5" SATA HDD/SSD up to 5X18TB, Non-RAID DAS Support 270TB Storage Expansion [FS5C3]

    Limited time offer, ends 01/22 By GGnix

    Be the first to review this product...
    • USB C Daisy Chain 270TB Monster CapacityThis 5 bay usb c hard drive enclosure supports 5 hard drives with a maximum capacity of 90 TB(18TBX5). Use the dual USB-C Gen2 (10Gbps) ports to daisy chain two additional peripheral devices (except main device), which means the whole capacity could reach up to a monster 270TB enterprise-class storage capacity in total.
    • 10 Gbps Ultra-fast SpeedThis 5 bay type c hdd enclosure adopts USB3.1 GEN2 (Type-C) protocol with a transfer speed up to 10Gbps (Max). The speed will vary from the different performance of hard drive and computer host. Applicapable to Windows, Mac OS and Linux devices.
    • For 2.5"/3.5" SATA HDD & SSDYottamaster 5 bay hdd enclosure designed for both 2.5 inch SATA and 3.5 inch SATA HDD/SSDs. Its removable aluminum trays facilitate easy installation and replacement of drives. The included screws securely fix the hard drives to the trays, effectively protecting them from shock and interface damage.
    +
    +
    Overview
    Specs
    Reviews
    1
    Professional Grade Preferred Storage Solution

    With TWO USB3.1 Type-C 10Gbps inteface on the back, five universal drive bays for either 2.5" or 3.5" HDD/SSD in any combination, allowing daisy-chain up to 2 of these capacity devices together for up to a enormous 270TB of space.

    As a huge enterprise-grade data center Now vast amounts of footage, film and video editors can take advantage of this desk storage system with flexible capacity combination to handle the voracious hard drive space appetite of RAW, 4K, 8K, large format, and VR workflows. Even for the demanding workflows, project archives, and system backups where reliability and versatile performance count,is still a preferred solution.

    Very Important Information!!! - How to Cancel Sleep Mode???

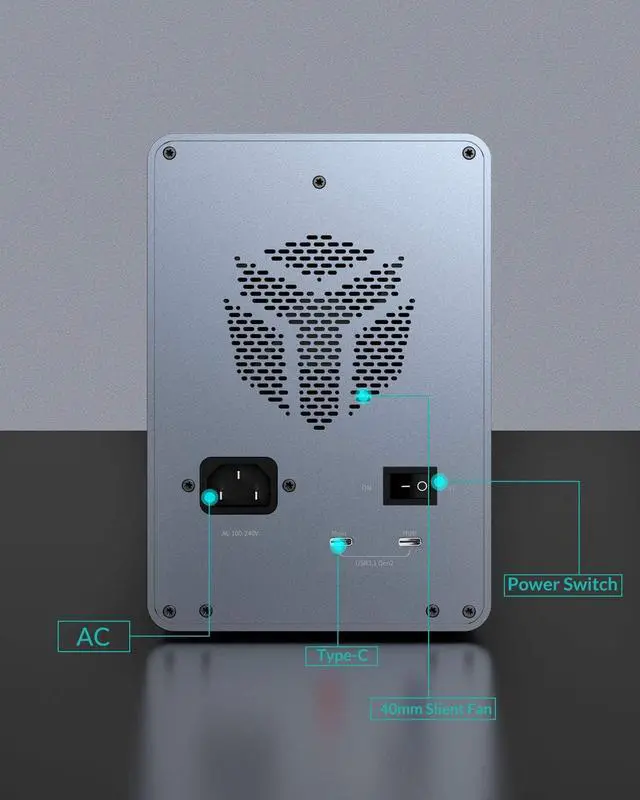

    Technical Information
    Dimensions and Weight L x W x H: 26.5 x 13.7 x 20 cm, 10.43 x 5.39 x 7.87 inch. Weight: 4.16kg / 146.74 oz / 9.17 lb.
    Interface and Speed USB3.1 GEN2 Type-C 10Gbps x 2 (Daisy-chain supported).
    Fan and Voltage 80mm Silent fan (12V, 2PIN). 150W Power Supply Inside.

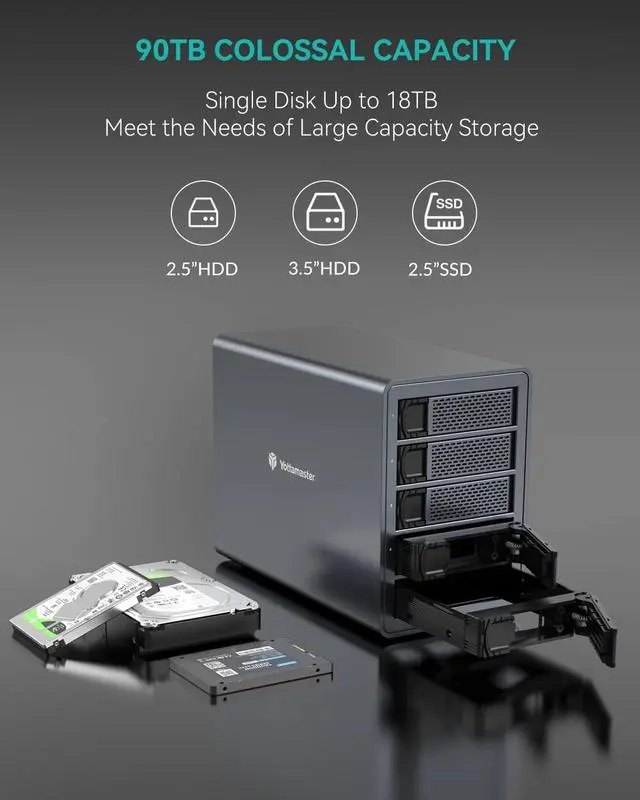

    HDD/SSD Capacity Support 2.5"/3.5" SATA HDD/SSD. Support up to 18TB, 90TB in total.
    RAID Array Not hardware RAID. Please use the RAID software settings that come with your computer.
    Sleep mode cancel Download our firmware or use the third-party software, like /KeepAliveHD/Prevent Disk Sle
    Data Cable USB-A to USB-C (1m) and USB-C to USB-C (1m)
    1

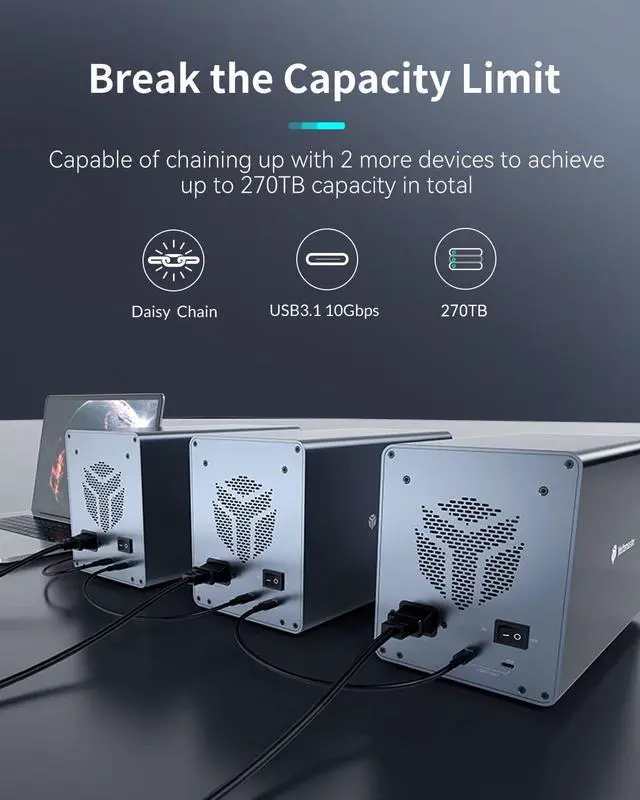

    5 Bay USB C Enclosure with Daisy Chain

    Notes for Daisy-chain (Model: FS4C3, FS5C3)

    (1) Please backup your data first to avoid data loss caused by formatting the hard drive.

    (2) Each device needs to be connected to an AC power supply separately. "Main" port refers to the main data transfer port and "HUB" port is the serial port.

    (3) Connect the computer and the "Main" portof the enclosure(device 1) with the supplied data cable.

    (4) Connect the "HUB" port of the enclosure (device 1) to the "Main" port of the enclosure (device2) with the C to C data cable.

    (5) And if you need to connect one more device, repeat step 4 to complete the connection.

    3

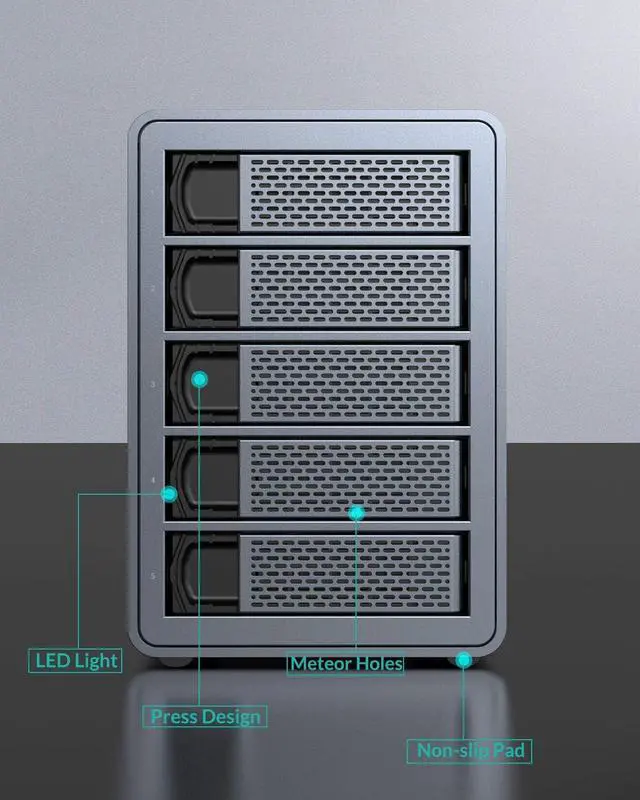

    Removeable Drive Trays

    For easy HDD/SSD installation

    Designed to house up to five 2.5-inch or 3.5-inch drives, the universal removable metal trays is for easy installation of the HDD/SSD.

    2.5" HDD/SSD: Fixed with 4 screws at the bottom. 3.5" HDD: Fixed with 2 screws on both sides.

    4
    150W Power Supply Inside

    Powerful support for data transfer

    The strong power supply can provide up to 280W instantaneous power and output in 150W rated power, which can ensure stable operation of hard drives when you insert FIVE 18TB HDDs into the enclosure.

    5

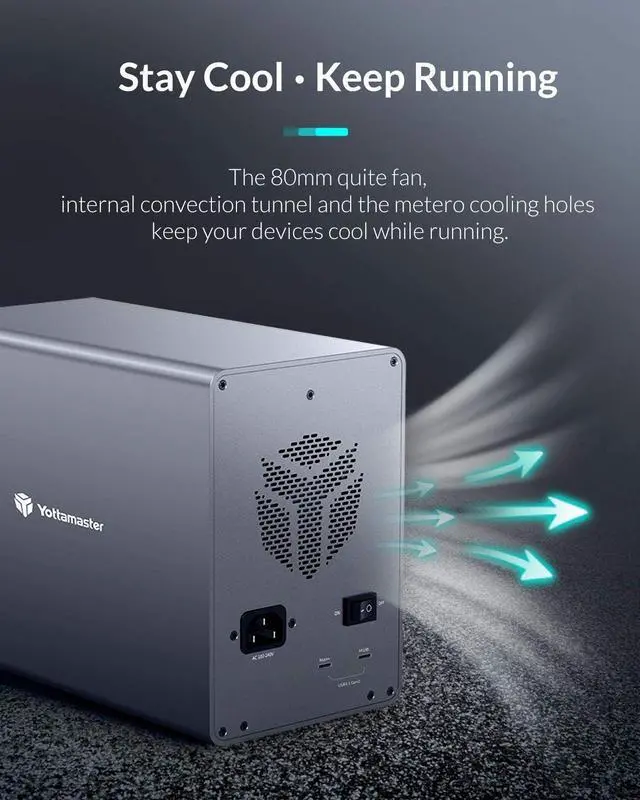

    Heat-dissipation
    • Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, help to rapid cooling.
    • Runs cool and quietly, making it ideal for noise-sensitive environments.
    6
    Lightly Press Left
    • User-friendly design, making it easily to install and uninstall.
    • 5 universal drive bays for 2.5" and 3.5" hdds/ssds.
    7
    Vibration-absorbing foot
    • With four vibration-absorbing & non-slip feet.
    • The 5 bay enclosure can turn into a quiet assistant to help you at the desktop.
    8
    LED indicator shows working state

    5 indicator lights monitor the status of each disk.



    • Blue light: Power on
    • Blue light flashing: Reading &writing
    • Red light: Hard drive error
    About this item
    USB C Daisy Chain 270TB Monster CapacityThis 5 bay usb c hard drive enclosure supports 5 hard drives with a maximum capacity of 90 TB (18TBX5). Use the dual USB-C Gen2 (10Gbps) ports to daisy chain two additional peripheral devices (except main device), which means the whole capacity could reach up to a monster 270TB enterprise-class storage capacity in total.
    10 Gbps Ultra-fast SpeedThis 5 bay type c hdd enclosure adopts USB 3.1 GEN2 (Type-C) protocol with a transfer speed up to 10Gbps (Max). The speed will vary from the different performance of hard drive and computer host. Applicapable to Windows, Mac OS and Linux devices.
    For 2.5" / 3.5" SATA HDD & SSDYottamaster 5 bay hdd enclosure designed for both 2.5 inch SATA and 3.5 inch SATA HDD/SSDs. Its removable aluminum trays facilitate easy installation and replacement of drives. The included screws securely fix the hard drives to the trays, effectively protecting them from shock and interface damage.
    Aluminum-Alloy Enclosure & 80mm Silent FanThe 5-bay USB C SATA hard drive enclosure boasts a sleek aluminum-alloy shell and an intelligent temperature control fan, providing optimal cooling with low noise. The fan adjusts its speed automatically based on the hard drive's temperature. With front and rear cooling holes, this enclosure ensures efficient heat dissipation and promotes air convection, effectively keeping your drives cool during extended usage.
    Daisy Chain for More Possibility & FlexibilityThe 5 bay usb c drive enclosure allows you to daisy chain a second or third external devices for extra workspace/storage capacity. For versatile working needs and allows you to handle your workflow in a fastest speed. With the indicator lights, you can easily know the working status of your hard drive by one glimpse.
    Important Note 1The enclosure will enter into sleep after 10 min of data inactivity-the function can be adjusted/cancelled. Use our firmware or the third-party software, like KeepAliveHD/Prevent Disk Sleep (You can set it to write to your drive a 1kb noted file every 5 minutes. The device will no longer enter sleep mode. )
    Important Note 2This model FS5C3 is a non-RAID version and does not support hardware RAID. If you wish to set up RAID, you can only set up software RAID with the tools in your system. For instance, Mac OS users can utilize the RAID Assistant in Disk Utility. The RAID software is compatible with RAID version enclosures only.
