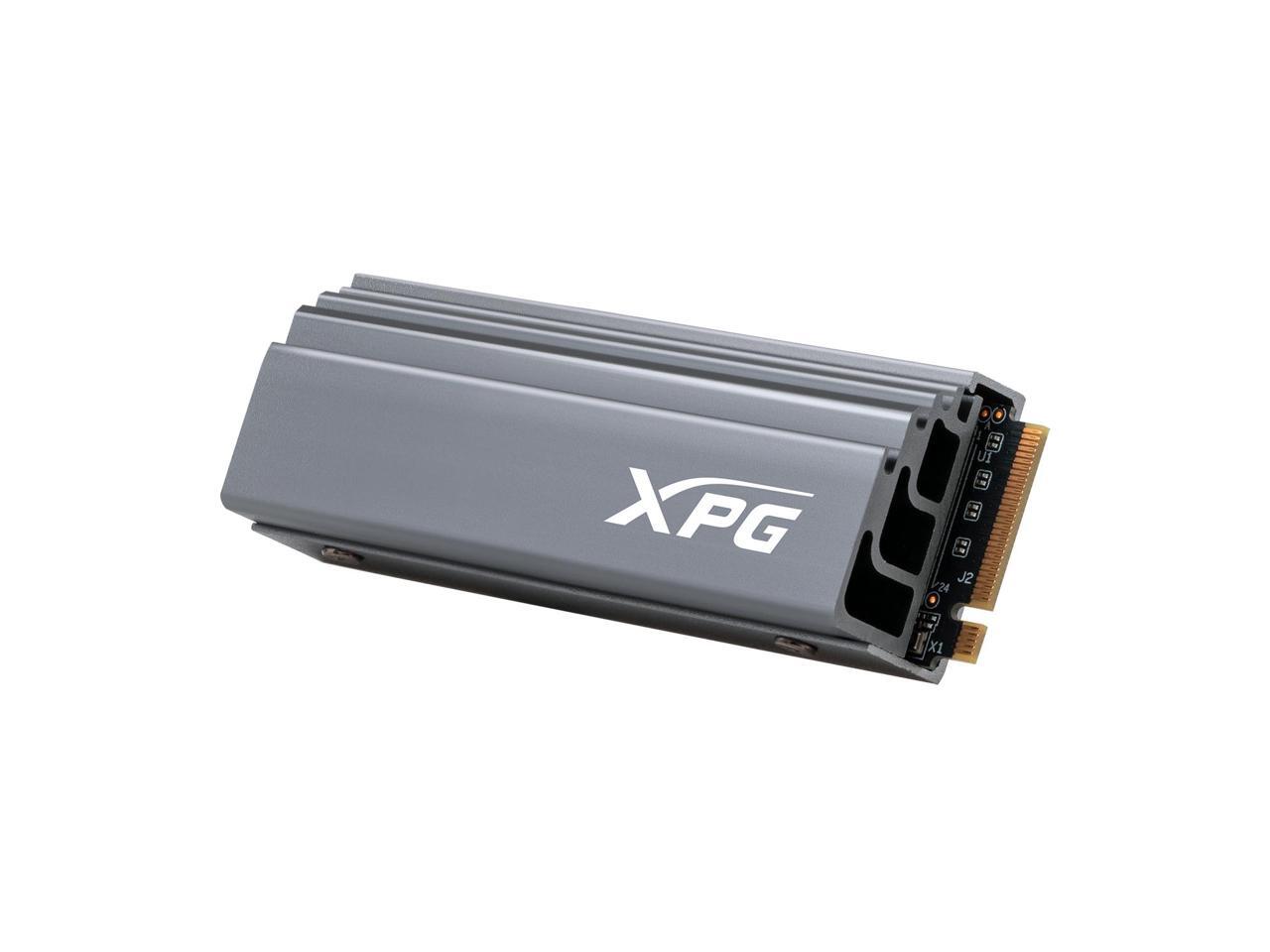

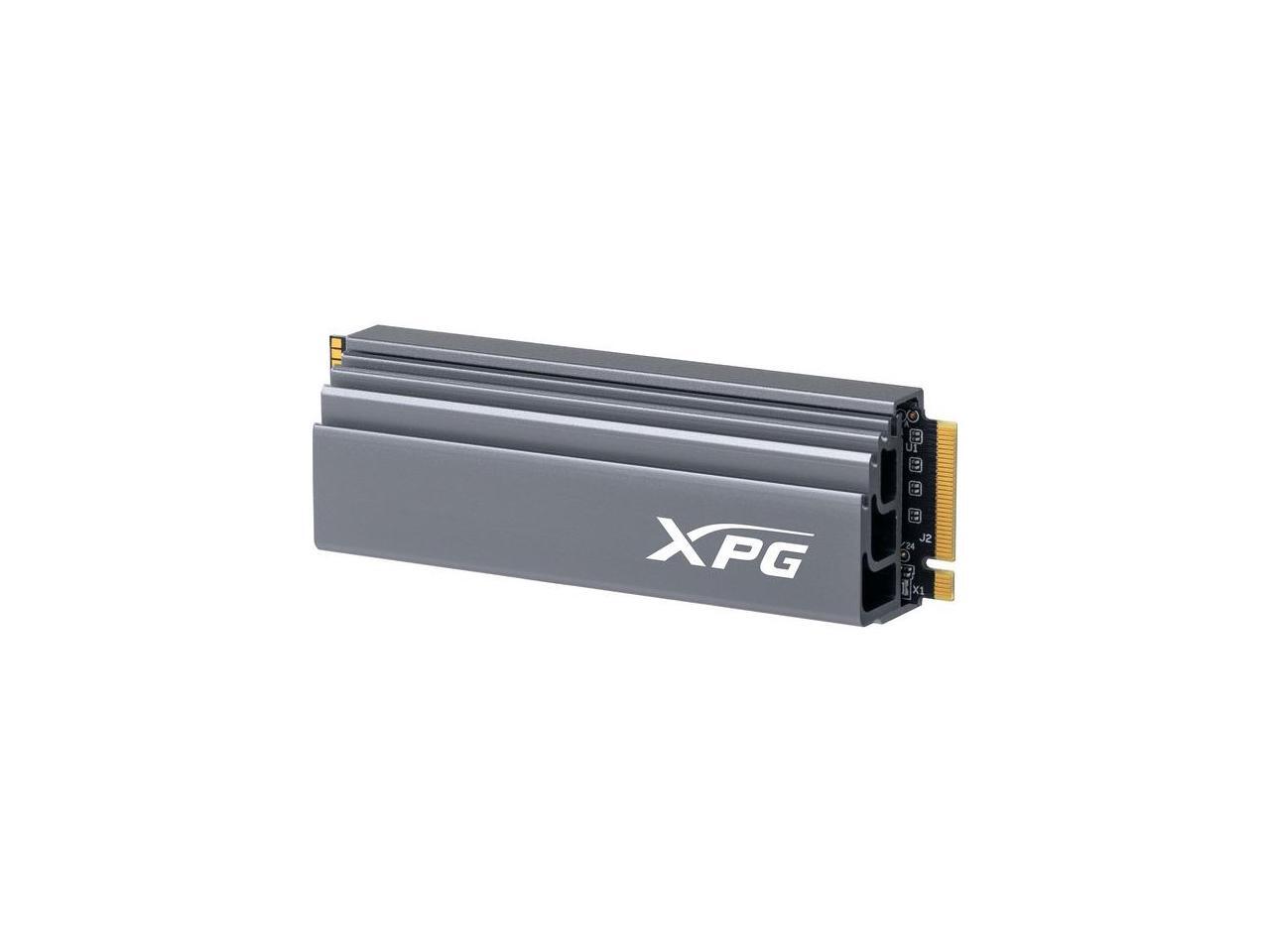

- Enjoy next-gen performance with the XPG GAMMIX S70 PCIe Gen4x4 M.2 2280 solid state drive (SSD).
- Sporting the latest PCIe Gen4x4 interface and a host of other capabilities, this SSD is capable of reaching blazing-fast read/write speeds of up to 7400/6800/MB per second.
- With the latest PCIe Gen4 interface, the GAMMIX S70 will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second.
- That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.

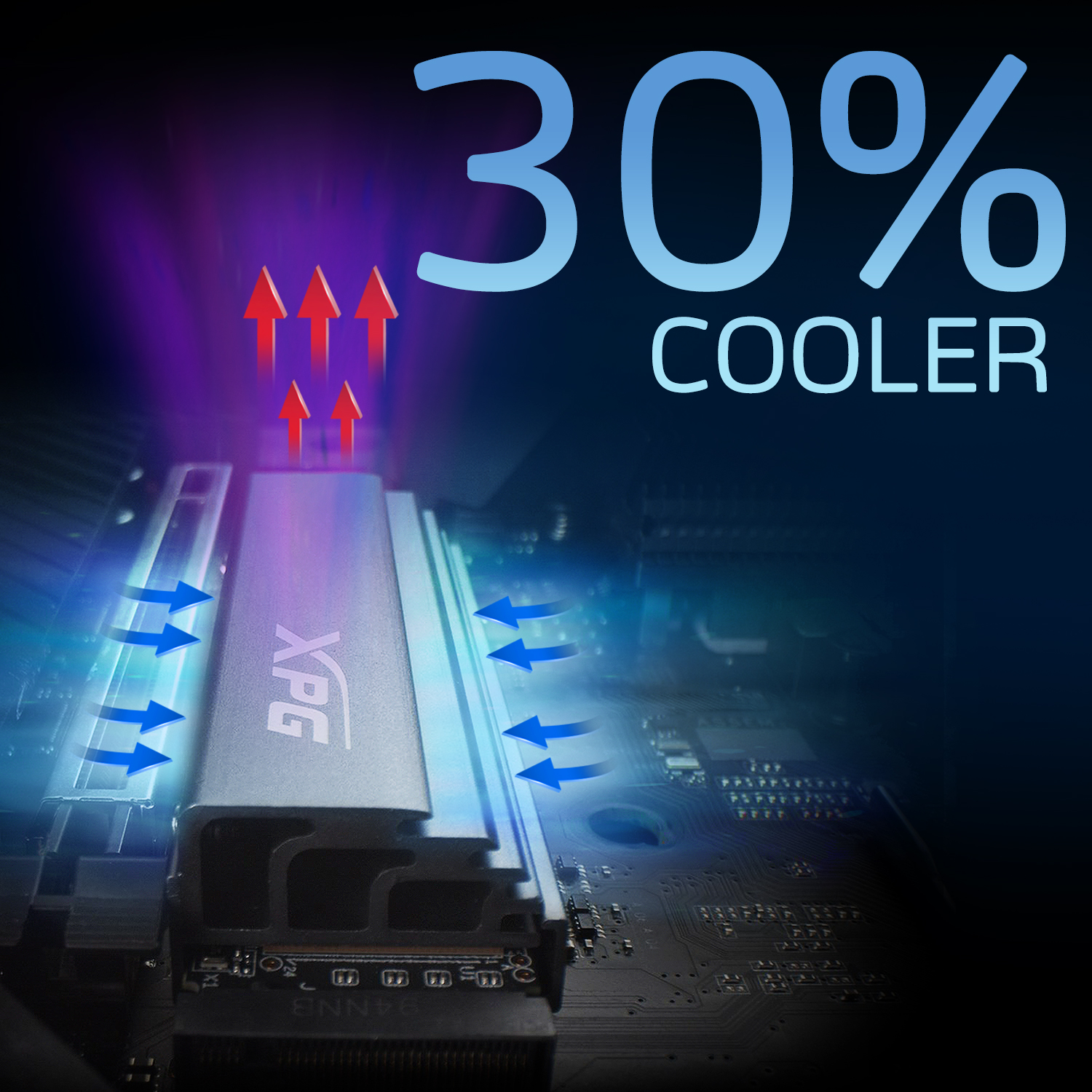

- For reliable operations and stability, the S70 is equipped with XPG's proprietary heat spreader design.
- The aluminum heat spreader features a terraced structure and hollow chambers underneath for increased surface area and airflow.
- This design can reduce temperatures by up to thirty percent.

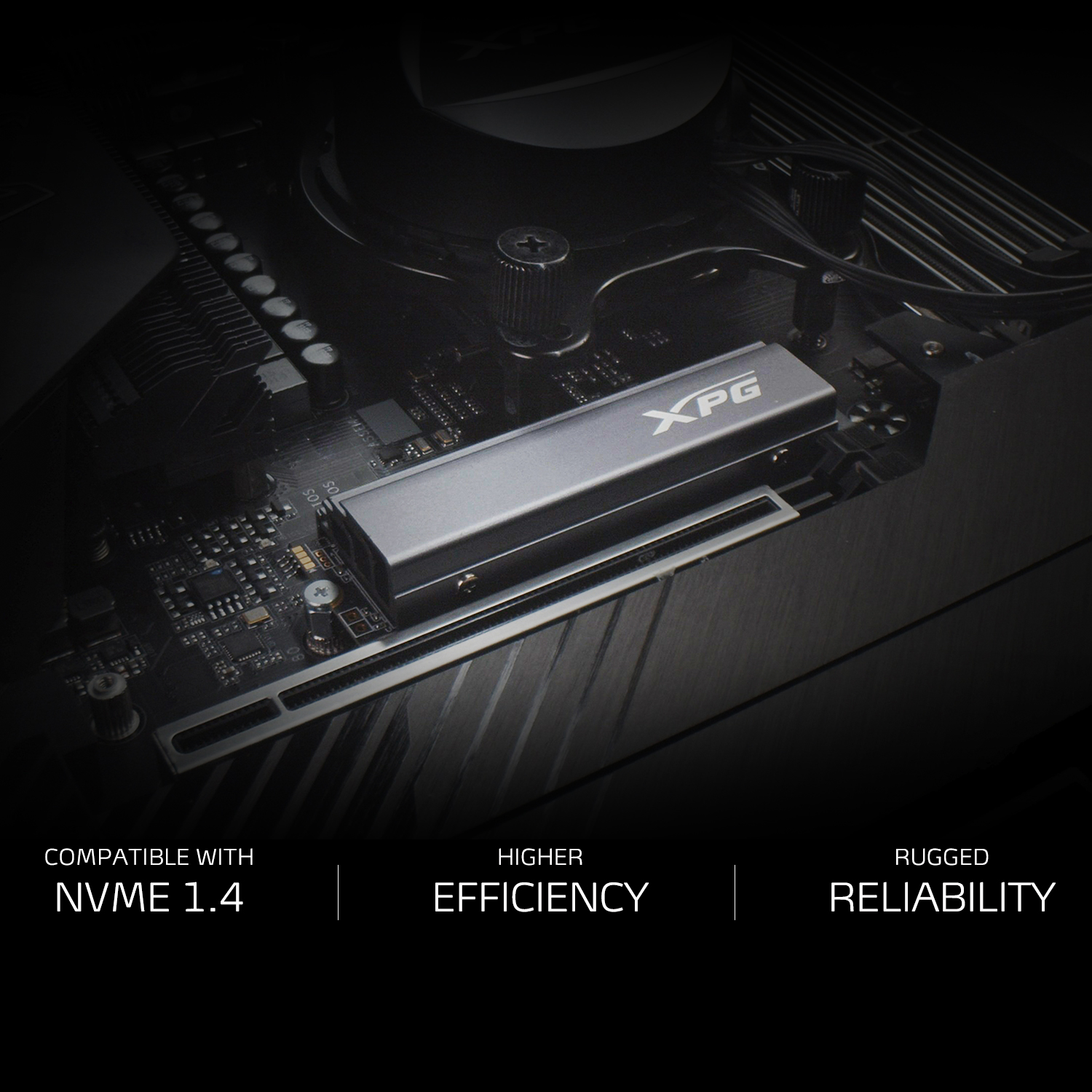

- Compliant with NVMe 1.4
- Higher capacities and enhanced efficiency and durability with 3D NAND Flash
- M.2 2280 specification: supports the latest generation PCIe 4.0 platform
- Perfect for avid gamers, overclockers, and PC enthusiasts
- In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 gives you a performance boost for video editing, rendering, and gaming.
- Equipped with 3D NAND Flash memory, the S70 offers capacities of up to 2TB.
- What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity.

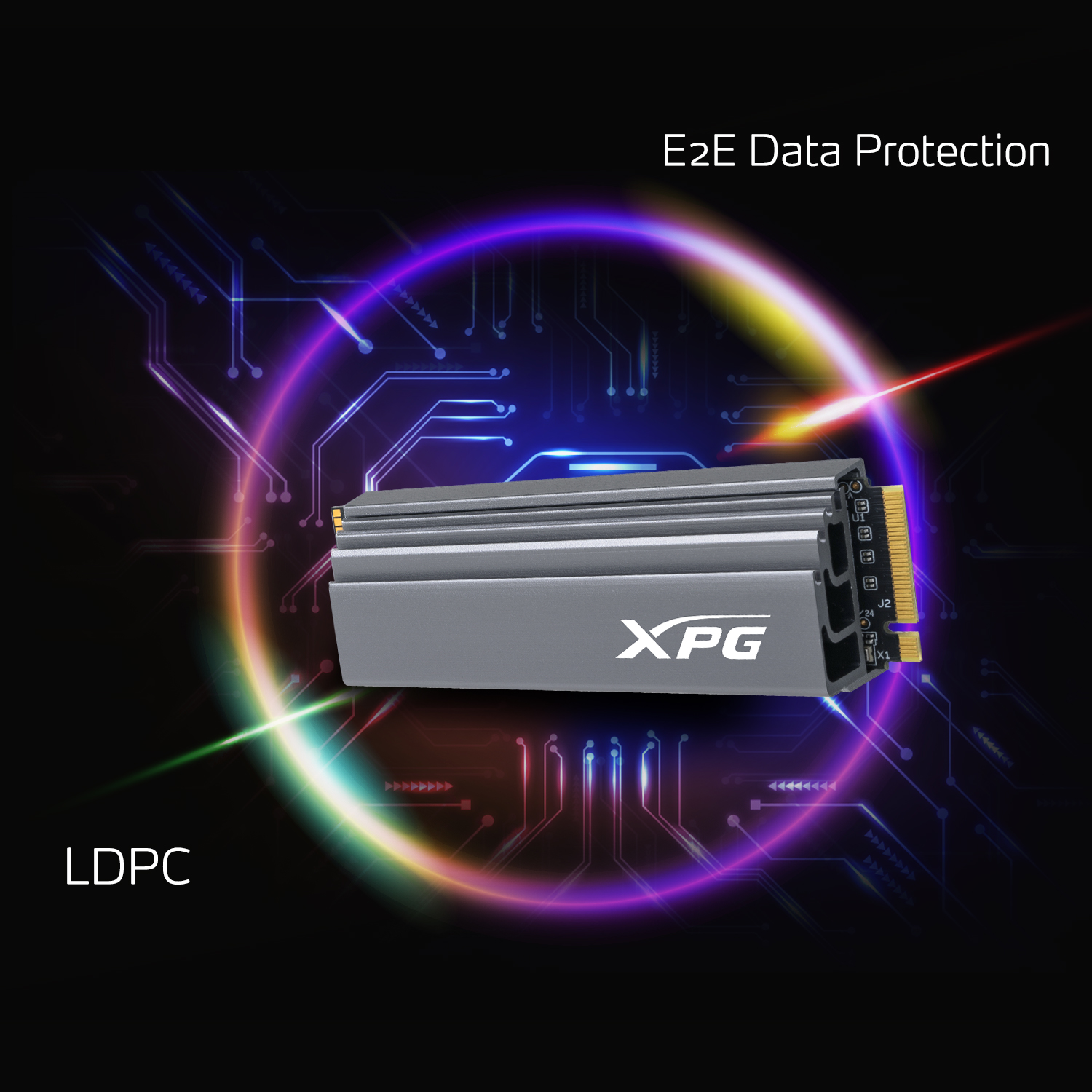

- On top of its core performance characteristics, the S70 supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions.
- In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 ensures data security and integrity.
| Capacity | 1TB / 2TB |
|---|---|
| Form Factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | Innogrit IG5236 |
| Dimensions | 80 x 22 x 15mm / 3.15 x 0.98 x 0.59inch |
| Weight | 34g /1.19oz |
| Interface | PCIe Gen4x4 |
| Sequential Read [Max] | Up to 7400MB/s |
| Sequential Write [Max] | Up to 6800MB/s |
| 4KB Random Read / Write IOPS [Max] | Up to 750K |
| Operating Temperature | 0°C - 70°C |
| Storage Temperature | -40°C - 85°C |
| Shock Resistance | 1500G / 0.5ms |
| MTBF | 2,000,000 hours |
| Terabytes Written (TBW) [Max] | 1480TB |
Q: If my computer only supports PCIe Gen3, can it still work with a PCIe Gen4 SSD?
A: PCs that do not support PCIe Gen4 SSDs can still use the said SSDs. However, the SSDs performance will be limited to PCIe Gen3 levels.
Q: Do I need to install a driver to use my SSD?
A: ADATA SSDs can use standard drivers, which can be applied to different operating systems; at the same time, users can also install the drivers officially provided by the motherboard manufacturers.
----
A Full List of Troubleshooting Q & A is available on the ADATA Consumer Site for more complex questions like:
Q : What should I do if my SSD is unrecognizable, undetectable, unreadable, etc?
Q: I am having trouble formatting my SSD?
Q: How do you partition a new SSD?
Q: Why is the data transfer speed on my SSD slow?
| Products | ||||
|---|---|---|---|---|
| Capacity | 2TB / 1TB / 512GB | 2TB / 1TB | 2TB / 1TB / 512GB | 2TB / 1TB / 512GB |
| Color | Black | Silver | Silver | Black |
| Interface | PCIe Gen4 x4 | PCIe Gen4 x4 | PCIe Gen4 x4 | PCIe Gen3x4 |
| Controller | InnoGrit IG5236A1 | Innogrit IG5236 | SMI SM2267G | |
| PS5 Compatible | NO | NO | NO | |
| Sequential Read [Max] | 7400MBps | 7400MBps | 3900MBps | 3500MBps |
| Sequential Write [Max] | 6800MBps | 6800MBps | 3200MBps | 3000MBps |
| 4KB Random Read IOPS [Max] | Up to 750,000 IOPS | Up to 750,000 IOPS | Up to 490,000 IOPS | Up to 300,000 IOPS |
| 4KB Random Write IOPS [Max] | Up to 750,000 IOPS | Up to 750,000 IOPS | Up to 540,000 IOPS | Up to 240,000 IOPS |
| Terabytes Written (TBW) [Max] | 1480TB | 1480TB | 1480TB | 1280TB |
