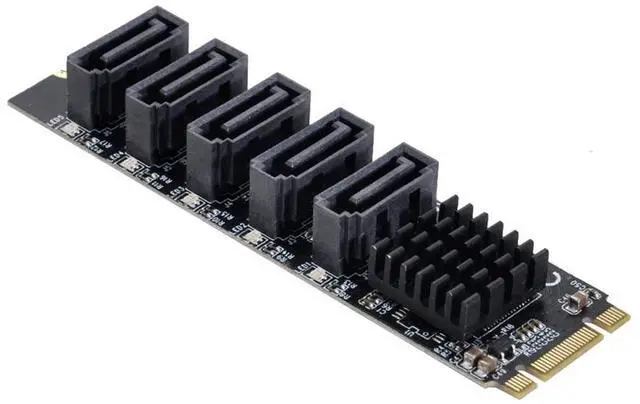

Vszerda NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575

NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575

JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.

With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.

JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.

Key Features

: · Comply with Serial ATA Port Multi Spec. Revision 1.2

· Comply with Serial ATA Port Select Spec. Revision 1.0

· Support 5 port SATA 6Gbps interface

· Supports BIST and loopback mode

· Support command-based and FIS-based switching

· Support PM aware and non-PM aware host

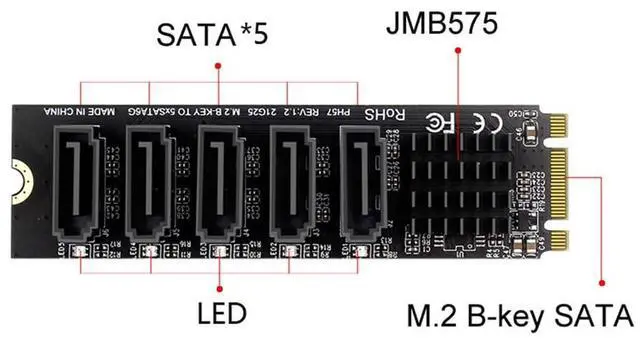

Main control chip: JMB575

Interface: 5 * SATA3.0 interface

Applicable slot: NGFF Key B+M
