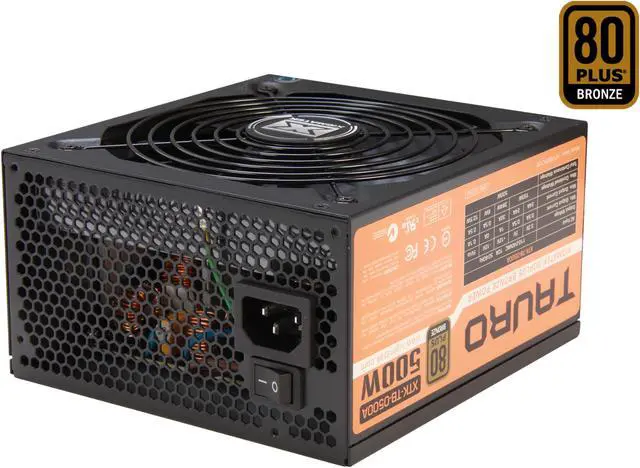

XIGMATEK Tauro Series CPA-0500BDD-F51 500 W ATX12V V2.3 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Name: XIGMATEK Tauro Series CPA-0500BDD-F51 500 W Power Supply
Brand: XIGMATEK
SKU: N82E16817815015
Rating: 5 (1 reviews)

Specs

Reviews (1)

Learn more about the XIGMATEK CPA-0500BDD-F51

Details
Type	ATX12V V2.3
Maximum Power	500 W
Fans	1 x 135mm Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	5
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	No
Efficiency	Typical Over 85% efficiency
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz

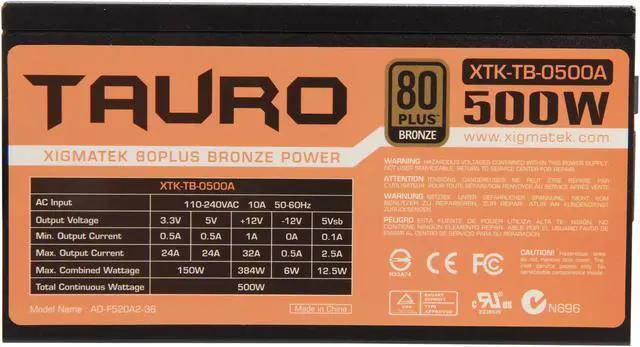

Output	+3.3V@24A, +5V@24A, +12V@32A, [email protected], [email protected]
MTBF	100,000 hrs minimum (at 25 Degree C)

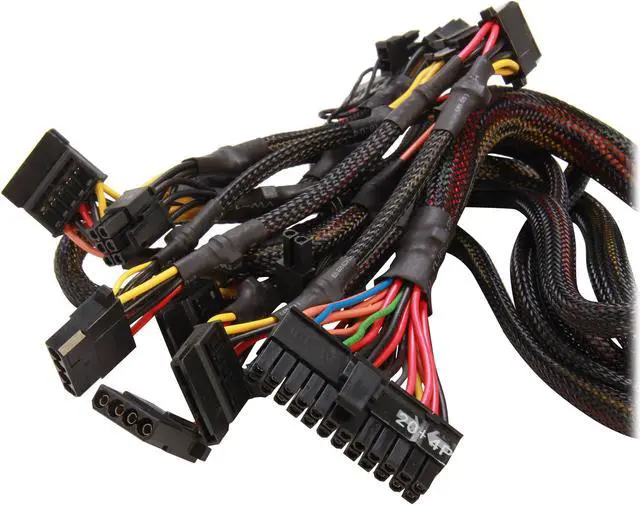

Connectors	1 x Main connector (20+4) Pin 1 x 12V (4+4) pin 4 x Peripheral 5 x SATA 1 x Floppy 2 x PCI-E (6+2) pin

Dimension & Weight
Dimensions	6.3" x 5.9" x 3.39"
Weight	3.53 lbs.
