XCLIO GREATPOWER X14S4P3 500 W ATX12V SLI Certified CrossFire Ready 80 PLUS Certified Modular Active PFC Power Supply

Specs

Reviews (41)

Learn more about the XClio X14S4P3

Details
Type	ATX12V
Maximum Power	500 W
Fans	1 x 140mm ball bearing fan
PFC	Active

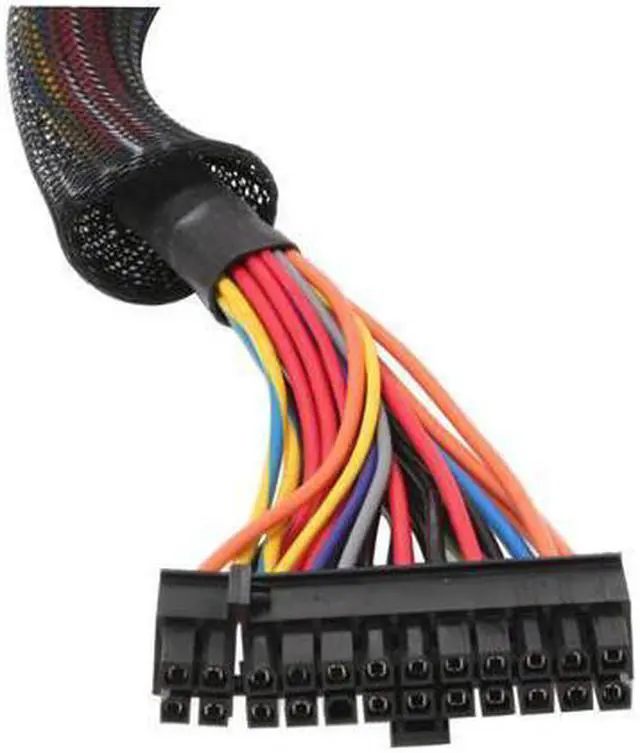

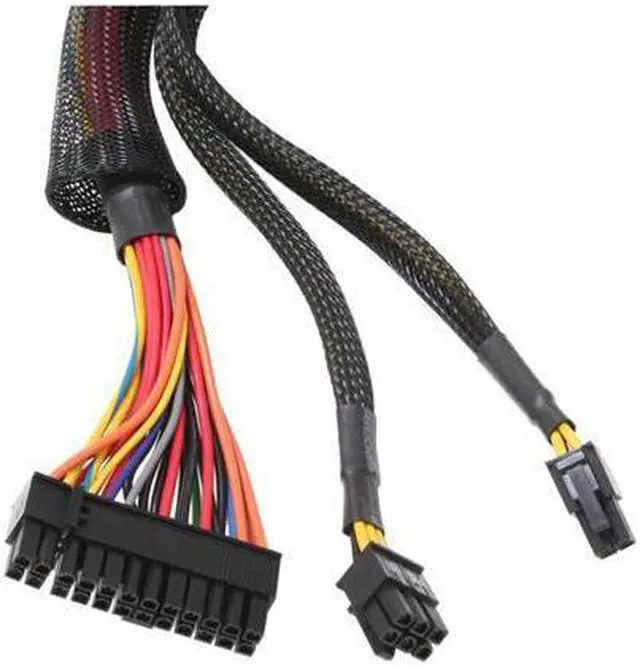

Main Connector	20+4Pin
+12V Rails	3
PCI-Express Connector	2 x 6-Pin
SATA Power Connector	4
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min. at 80% of full load
Efficiency	> 80%
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	YES, +3.3V, +5V and +12V.
Overload Protection	YES, +3.3V, +5V.
Input Voltage	100 - 240V/ 200 - 240V
Input Frequency Range	47 - 63 Hz
Input Current	6/3A
Output	+3.3V@30A, +5V@28A, +12V1@18A, +12V2@18A, +12V3@16A, -12V@0.8A, +5VSB@3.0A
MTBF	100K hrs minimum, 25 °C ambient
Approvals	UL, CUL, TUV, CB, VDE, FIMKO, DEMKO, NEMKO, SEMKO

Features
Features	Including the mainstream Serial ATA connector of the new generation hard drive Transfer Interface. Noise Reduction Technology and Active Intelligent Fan Speed Control Environment-friendly and energy saving (Blue Angel & Energy Star) Over-Voltage Protection Over-Current Protection Over-Temperature Protection Short-Circuit Protection Perfect for professional or gaming user Comply with Intel EPS +12V standard Comply with AMD ATX-GEX standard Cable Management System NVIDIA SLI Ready certified Intel ATX V2.2 - 80+% efficiency (99% efficiency with Active PFC)

Dimension & Weight
Dimensions	5.9" x 6.3" x 3.38"

Additional Information
First Listed on Newegg	March 29, 2006
