The new USB Type-C connector works seamlessly with this Ultra HD 4K Universal Docking Station. It can connect to any host with Standard A or Type C connectors providing a fully backward-compatible and future proof docking solution.

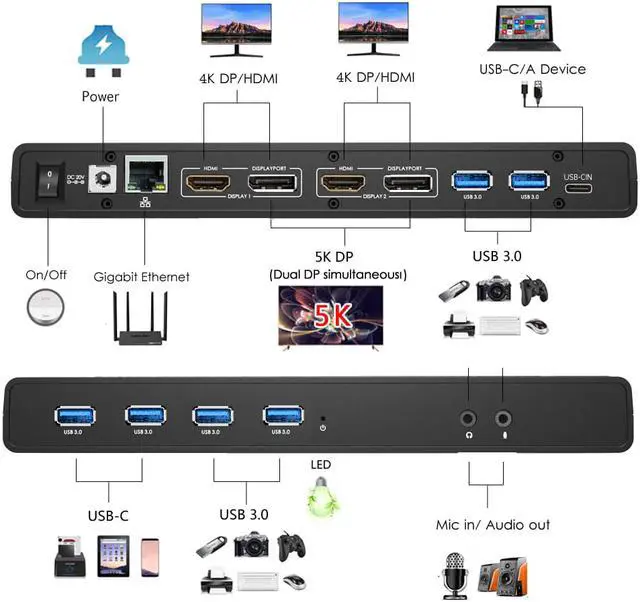

Allow you to connect up to two additional monitors and eleven accessories through a single USB cable. Including the latest drivers for compatibility with Windows 10, 8.1 and 7 or Apple Mac OS,it features two DisplayPort or HDMI outputs for mirroring/extending your Windows desktop to external monitors, a Gigabit Ethernet port, audio input and output ports, and six USB 3.0 ports.
- Please download the latest driver from displaylink:
www.displaylink.com/downloads
Suggested for web/productivity software. We do not recommend this docking station for gaming.

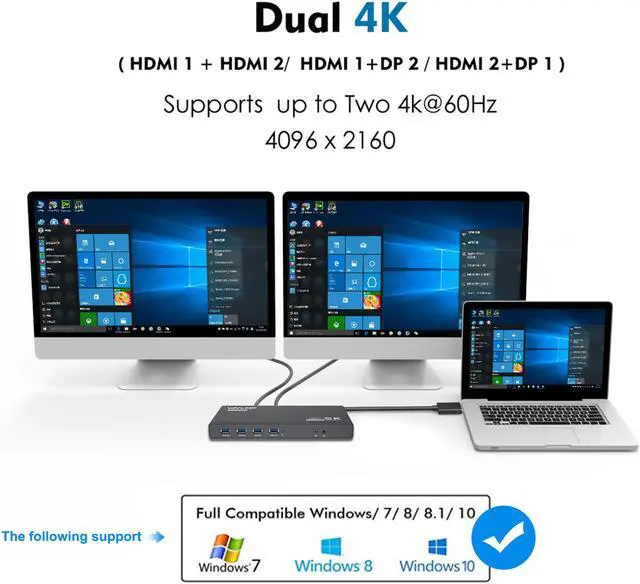

Support dual 4K Display: Dual 3840x2160@60Hz (4K UHD) video outputs through DP + DP, DP + HDMI and HDMI + HDMI.

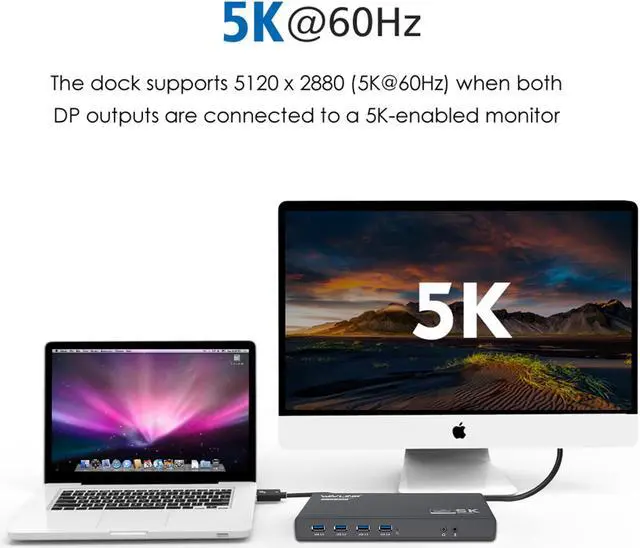

Single 5K Display: DisplayPort output up to 5120 x 2880@60Hz when using dual DP simultaneously and with single 5K monitor/TV.
Support dual 5K Display: New 10.0 release version support dual DP 5120x1440@60hz for Windows 7, 8.1 and Windows 10 and Windows 10 v1607 and later.
It will greatly help you work on high-resolution works, graphically intensive images, video editing, CAD drawings, medical images and so on.
Does not support DisplayPort MST daisy-chain connections or Dual-Link DVI conversions. Does not support monitors with 1366x768 optimal resolutions.
Vizio M-Series 4K TVs are only compatible at 4K@30Hz. Not compatible with Acer G-Sync enabled monitors' DisplayPort port, like the Acer XB321HK.
RJ45 Gigabit LAN female port definitely provides stable and faster network connection, automatically adapts to 10M/100M/1000Mbps network transmission.
*Not compatible with virtual networks.(like VPN)
USB 3.0 provides up to 5Gbps data transfer speeds, which is 10 times faster than USB 2.0. The item features 6 USB 3.0 ports, allowing for SuperSpeed data transfer between peripherals. ease of use of your laptop including mouse, keyboards, controllers, printers, external GPU and so much more! These ports are also compatible with USB 2.0.
*Bluetooth devices may cause network delays.
Compatible with any devices with standard 3.5mm Audio port, ideal for connecting a wide variety of devices including headphones with and without mic, speakers, mic system and so much more.
Just plug and enjoy premium sound quality with lossless stereo signal transmission .
1 × WL-UG69PD6 USB-C Universal Docking station

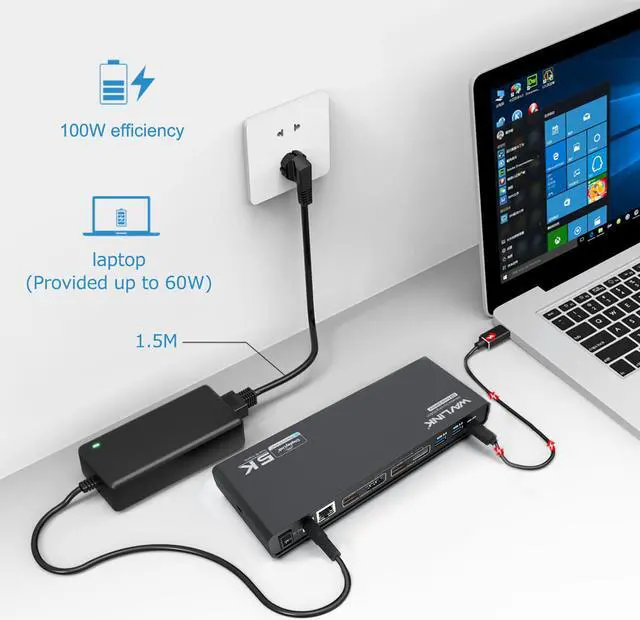

1 x DC20V/5A Power Adapter
1 x USB3.0 C to C Cable
1 x USB3.0 A to C Cable
1 x User Manual
1, Since macOS High Sierra 10.13, the user has to explicitly enable this system extension in the Security & Privacy system preference after installation and before the DisplayLink software is allowed to run.
2, macOS Catalina 10.15 requires the user to permit "Screen Recording" in order for DisplayLink devices to work properly.
Attention
-The device does not support HDCP (copy-protected) content playback from Blu-ray/Netflix/Prime/ iTunes/Hulu/etc.
-This docking station is not compatible with the graphics card on notebook PC (NVIDIA GeForce).
-Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC).
-Supports DP 1.2 and make sure monitor settings are configured to use DP 1.2 and not 1.1.
-On HDMI output make sure your HDMI cable is capable of 4K @ 60Hz.
This item has DL-6950 chipset which made by Displaylink.
Attention: It's worth noting that displaylink driver installation is required
Drivers& Updates: displaylink.com/downloads
Supported Systems:
Windows: Windows 11, Windows 10, Windows 7, Windows 8.1, Windows 8
macOS: Ventura 13, Monterey 12, Big Sur 11, Catalina 10.15, Mojave 10.14
Android: Android 5 (Lollipop) onwards with USB OTG mode. Android devices only support mirroring mode with resolutions up to 1080P.
CHROME: chromeOS build R51 or later
Ubuntu: Ubuntu 20.04, Ubuntu 22.04
Not Compatible With Windows XP (64-bit ), iPad OS, Linux, Unix, Surface RT. (Please refer to Display Link website for more system compatibility)
Specifications Recommended
Host connection: USB 3.0/3.1 port (Type A or C)
Processor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better
Memory: 8GB
Graphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM graphics processors or better
Disk: 7200RPM or SSD
The system requirements for 4K are higher than the system specs , due to the extra resources needed to process the high resolution. The recommended specs are below:
For Productivity:
- Processor: Intel Core i5 2+GHz / AMD Trinity or better, Memory: 4GB
- Graphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce 5xxM graphics processors or better.
For Full screen video playback
- Processor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better, Memory: 8GB
- Graphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM graphics processors or better.
- Disk: 7200RPM or SSD
- If playing UHD content (4K), the system must be capable of decoding the 4K video in the graphics processor.
