Wavlink Latest Technology - Power delivery 5K docking station is coming
The Wavlink UG69PD5 is one of the Top universal USB 3.1 Type-C Power delivery docking station on 2018’s Science and Technology Exchange Summit. Simple cable connection to your computer USB C Port, You can have access to large screen displays, stereo speakers, external hard drive, optical disk drive, printers, USB keyboard, mouse and other USB devices.
In addition, The 100Watt Power Adapter support 60Watt upstream Laptop Charging while connected, and 40Watt power for all downstream devices You needn’t to worry about unplugging the dock to be able to charge your laptop. Needn’t to use two separate power adapters for dock and laptop any more. Use 5K/Dual 4K docking station and charge laptop simultaneously!
--Supports resolutions up to 5K (5120 X 2880@60Hz) when connecting dual DP Ports simultaneously to a 5K monitor
--supports Dual 4K HDMI / Dual 4K DisplayPort / 4K HDMI + 4K DisplayPort output --Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p --Support Extend and Mirror Video Mode
--Support 5.1 Channel surround-sound through HDMI / Display Port interface --Built-in USB 3.0 GPU, Plug and Display
--Built-in Four SuperSpeed USB 3.0 (5Gps) Type-A Ports, backward compatible with 2.0 / 1.1
--Built-in Two superspeed USB 3.1 Gen 1 (5Gps) Type-C Ports --Built-in 10/100/1000BASE-T Gigabit Ethernet RJ45 for increased network performance, Wired network connections are faster and more reliable than any Wi-Fi

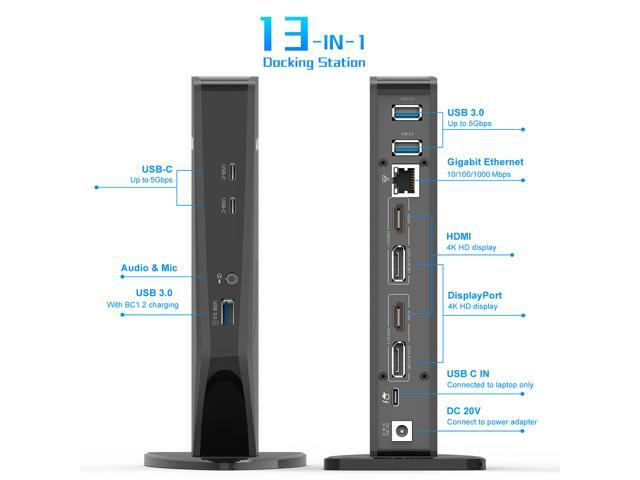

More Ports, More Power
A single usb c port from your laptop expands to 13 ports! Power users need as many ports as possible, wavlink usb c dock can achieve it. Enables additional dual 4k display, gigabit Intel Ethernet, audio input/output, and USB-C 3.0 (5Gbps) , USB A 3.0 expansion.
Dual 4K Display
connection way: HDMI+displayport or HDMI+HDMI, which will greatly help you facilitate high-resolution works, graphically intensive images, video editing, CAD drawings, medical imagery and more.
65W Host Charging
Dock provides usb-c power delivery up to 65W maximum of upstream charging to compatible and also power to the others peripherals simultaneously with 100Watt Power Adapter.
Working remotely at least one day a week continues to be a growing trend among companies. For business professionals, it’s a necessity.
Additional Computer Monitors
Having multiple screens boosts productivity by eliminating the need to minimize windows, allowing you to view multiple browser windows at once, and expanding your viewing beyond the screen of your laptop.
Create a more efficient home office
As a tech person, it’s important to have dual-monitors because a lot of times working between several different applications.
Get all the benefits from this docking station, create the "home base workstation"
You can easily connect your PC to one 5K (5120 x 2880) @60Hz UHD display (DisplayPort Only) or two 4K (4096 x 2160) @60Hz UHD displays (DisplayPort + HDMI). It also provides Three additional USB 3.0 Type-A ports, Two USB 3.1 Type-c Ports, Fast Gigabyte Ethernet Port, Audio/Mic port. Display Link Certified, DL- 6950 chip. Up to 60W charging provided via USB-IF Power Delivery ("PD") standard, and HDMI output is enabled through "VESA DisplayPort Alternate Mode over Type-C" ("Alt Mode") functionality
This item has DL-6950 chipset which made by Displaylink.
Supported Operating Systems:
Legacy Windows XP - Vista/ Vista /7 / 8.1 / 10
-Mac OS X 10.8 onwards
-Chrome OS R51 onwards
-Ubuntu 14.10 onwards
Not Compatible With: Windows XP (64-bit ) and Surface RT. Not supported Linux
Drivers& Updates: displaylink.com/downloads
Mac macOS High Sierra needs attention:
1, Since macOS High Sierra 10.13, the user has to explicitly enable this system extension in the Security & Privacy system preference after installation and before the DisplayLink software is allowed to run.
2, macOS Catalina 10.15 requires the user to permit "Screen Recording" in order for DisplayLink devices to work properly.
For Laptops without USB-C ports You can use this docking station as a high performance tools to make your application, as we had offered the USB-C to USB-A cable in the package. This cable is not for power delivery but only for transferring date, if you need to charge your latop, please connect it to the original power adapter. For Laptops own USB-C ports As you know, USB-C charging function and Alternate Mode ("Alt Mode") video output not supported on all USB-C systems. So, Power Delivery (60W) and host-charging USB-C DisplayPlay Alternate mode technology must be supported by your device's system (USB-C ports) That is to say 69PD5 is compatibile with specific USB-C Windows systems such as the Microsoft Surface Book 2, Dell XPS 9350 / 9360 / 93
In The Box
1 x USB-C Universal Docking Station
1 x USB 3.1 C to C Cable
1 x USB 3.0 A to C Cable
1 x DC20V/5A Power Adapter
1 x User Manual
