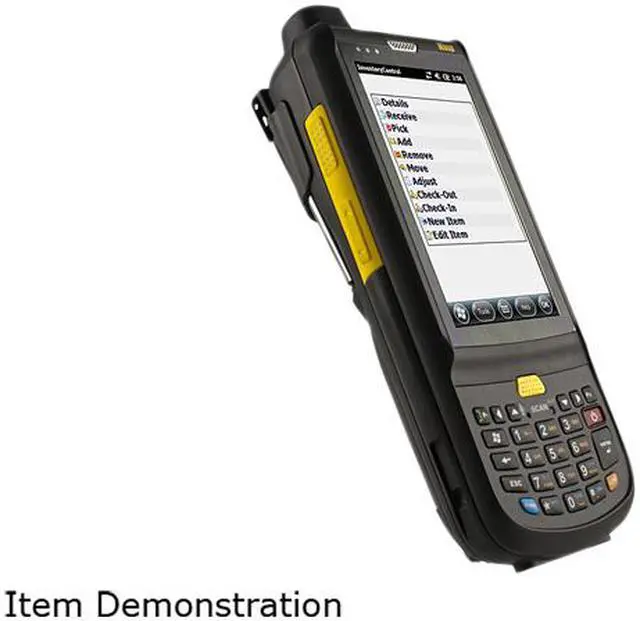

The Wasp HC1 mobile computer combines flexibility with versatility to meet the demands for daily applications used in field service, retail, hospitality, and logistical environments. Maximize your efficiency with the intuitive Windows Embedded Handheld 6.5 operating system and 806MHz processor.
Quickly read 1D barcodes using the integrated laser scan engine and review your records using the 3.8-inch wide VGA transflective, color-touch LCD screen – making it ideal for outdoor applications in the field. Easily download data back to your PC using the built-in 802.11 a/b/g wireless connectivity.
The rugged HC1 handheld computer offers an IP65 rating for protection against water and dust and it can stand up to multiple 5-foot drops to concrete.
The HC1 mobile computer is RoHS compliant and CE, FCC, BSMI, VCCI, and CCC certified.
WASP HC1 FEATURES
Integrated wireless 802.11 a/b/g connectivity
256MB DDR RAM and 512MB NAND Flash
Add up to 32GB of additional memory via MicroSD slot
Windows Embedded Handheld 6.5 operating system
Operates up to 8 hours on a single charge
44-key QWERTY keypad or 26-key NUMERIC keypad
3.8" Wide VGA outdoor LCD color touch screen with backlight
5.0-Megapixel autofocus camera with flash MPEG-4 video codex (VGA resolution)
BENEFITS
Increase productivity and efficiency in field service, retail, hospitality, and logistical environments
Accurately read 1D barcodes with the integrated laser scanner
Enhance viewing experience with the large outdoor LCD screen
Wireless connectivity allows for easy access to information on-the-go
Durable design reduces downtime from harsh conditions
Compatible with Wasp MobileAsset and Inventory Control software
Specifications
System
Windows Embedded Handheld 6.5
Marvell PXA320 @ 806MHz
256MB DDR RAM
512MB NAND Flash
MicroSD slot supports SDHC memory card up to 32GB
Display
3.8" WVGA, 800 x 480 color touch screen LCD with backlight
Keypad
44-key QWERTY or 26-key NUMERIC Keypad
Input Device
Laser barcode scanner, touch screen keypad
Symbologies
GS1-128, GS1 Databar, GS1, ITF-14, Codabar, Code 11, Code 128, Code 39, Code 93, EAN 13, EAN 8, IATA 2 of 5, ITF, ISBT, Matrix 2 of 5, MSI, RSS expanded, RSS limited, RSS 14, UPC A, UPC E, UPC E1, EAN-UCC, composite, Tcif linked C39, Australian post, British post, Canadian post
Enclosure
Dimensions (L x W x H): 7 x 1.6 x 2.9 inches (17.7 x 4 x 7.4cm) Weight: 13.76oz with battery pack (390g)
Environment
Operating temperature: 14°F to 122°F (-10°C to 50°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Relative humidity: 5% to 95% non-condensing
Drop specification: Withstands repeated 5 ft. (1.5m) drops to concrete
Sealing: IP65
Power Source
Main Battery: One rechargeable lithium-ion battery pack @ 3.7V, 2200mAh
Operating Time: 8.14 hours
Backup Battery: Store data without loss for up to 2 hours without main battery
Part Numbers
Wasp HC1 Mobile Computer with QWERTY keypad: 633808391317
Wasp HC1 Mobile Computer with NUMERIC keypad: 633808505240
Wasp HC1 Single Slot Cradle: 633808121686
Wasp HC1 Li-Ion Battery (3.7V, 2200 mAh): 633808342141
Wasp HC1 USB Communication/Charging Cable: 633808121693
Wasp HC1 Stylus: 633808551339
WaspProtect 2-Year Extended Warranty for HC1 Mobile Computer: 633808551346
WaspProtect 1-Year Renewal for HC1 Mobile Computer: 633808600426
Wasp HC1 Mobile Computer The Wasp HC1 mobile computer combines fast, reliable, rugged construction with the flexibility and versatility you need for today's aggressive business environments. Effectively scan 1D barcodes with the HC1's integrated laser scan engine, and instantly download your data back to a PC using the built-in 802.11 a/b/g wireless connectivity. The HC1 is powered by an 806 MHz processor and user-friendly Windows Embedded Handheld 6.5 operating system for fast, efficient data collecting. The 3.8 oversized, color LCD touch screen allows you to execute two applications at the same time. Simply combine viewing of tasks, such as route directions and customer information, on one screen - making it easier to view your pertinent information. Engineered to minimize downtime and increase worker productivity, the HC1 mobile computer includes a powerful 2200 mAH battery and your choice of either a 44-key QWERTY keypad or a 26-key numeric keypad. Durably designed, the HC1 mobile computer can withstand multiple 5' drops to concrete and offers an IP65 rating against water and dust - eliminating costly downtime. The HC1 is RoHS compliant and CW, FCC, BSMI, VCCI, and CC certified. Package Contents: HC1 Mobile Computer Stylus Lithium-ion Rechargeable Battery AC Power Adaptor USB Communication Cable Product Type: Handheld Terminal Screen Resolution: 800 x 480 Standard Memory: 256 MB Product Type: Handheld Terminal Flash Memory: 512 MB Manufacturer Part Number: 633808391317 Number of Keys: 44 Screen Resolution: 800 x 480 Limited Warranty: 1 Year Standard Memory: 256 MB Weight (Approximate): 13.76 oz Operating System: Microsoft Windows Embedded Handheld 6.5 Connectivity Technology: Wireless Screen Size: 3.8 Operating System: Microsoft Windows Embedded Handheld 6.5 Connectivity Technology: Wireless Manufacturer: Wasp Barcode Technologies Product Model: HC1 Product Name: HC1 Mobile Computer Screen Size: 3.8 Brand Name: Wasp Light Source: Laser Brand Name: Wasp Light Source: Laser Screen Mode: WVGA Screen Mode: WVGA Memory Card Supported: microSD Memory Card Supported: microSDHC Memory Card Supported: microSD Memory Card Supported: microSDHC Height: 2.9 Width: 1.6 Wireless LAN: Yes Wireless LAN Standard: IEEE 802.11a/b/g Environmentally Friendly: Yes Environmental Certification: RoHS Touchscreen: Yes Wireless LAN: Yes Display Screen Type: LCD Wireless LAN Standard: IEEE 802.11a/b/g
Learn more about the Wasp Barcode HC1
General
Brand
WASP
Model
HC1
Part Number
633808391317
Performance Characteristics
Operating System
Windows Embedded Handheld 6.5
Memory
256MB RAM / 512MB Flash
Display
Display Size
3.8"
Resolution
800x480
Display Type
touch screen LCD with backlight
Input Devices
Keypad
44-key QWERTY
Stylus
No
Touch Screen
Yes
Scanner
Scanner Type
Laser
Communications
Wireless LAN
IEEE 802.11 a/b/g
Dimensions & Weight
Dimensions
7" L x 1.6" W x 2.9" H
Weight
0.86lbs w/ battery (0.86)
Features
Feature
Integrated wireless 802.11 a/b/g connectivity
256 MB DDR RAM and 512 MB NAND Flash
Add up to 32 GB of additional memory via MicroSD slot
Windows Embedded Handheld 6.5 operating system
Operates up to 8 hours on a single charge
44-key QWERTY keypad or 26-key NUMERIC keypad
3.8" Wide VGA outdoor LCD color touch screen with backlight
5.0 megapixel autofocus camera with flash MPEG-4 video codex (VGA resolution)
