VIA EPIA-EN15000G 1.5GHz VIA C7 nanoBGA2 Embedded Processor VIA CN700 Mini ITX Motherboard / CPU Combo
OPEN BOX Product Type
- VIA C7 nanoBGA2 Embedded Processor
- DDR2 533
- S3 Graphics UniChrome Pro IGP
Specs
Learn more about the VIA / VPSD EPIA-EN15000G
| Brand | VIA |
|---|---|
| Model | EPIA-EN15000G |
| Combo Type | Motherboard / CPU Combo |
| CPU | 1.5GHz VIA C7 nanoBGA2 Embedded Processor |
|---|---|
| With Cooler | With Heatsink and Fan |
| CPU Type | VIA C7 nanoBGA2 Embedded Processor |
|---|---|
| FSB | 400MHz |
| North Bridge | VIA CN700 |
|---|---|
| South Bridge | VIA VT8237R |
| Number of Memory Slots | 1x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 1GB |
| PCI Slots | 1 x PCI Slot |
|---|
| PATA | 2 x ATA 100 4 Dev. Max |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Audio Chipset | VIA VT1618 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | VIA VT6122 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| S-Video | S-Video + RCA |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Features | System Monitoring & Management: • CPU temperature reading, CPU voltage monitoring • Wake-on-LAN, Keyboard-Power-on, Timer-Power-on • Watch Dog Timer, FAN control • System power management, AC power failure recovery Operating Temperature: • 0~50°C Operating Humidity: • 0% ~ 95% (relative humidity; non-condensing) Onboard TV Out: • VIA VT1625M HDTV Encoder RoHS Compliant |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

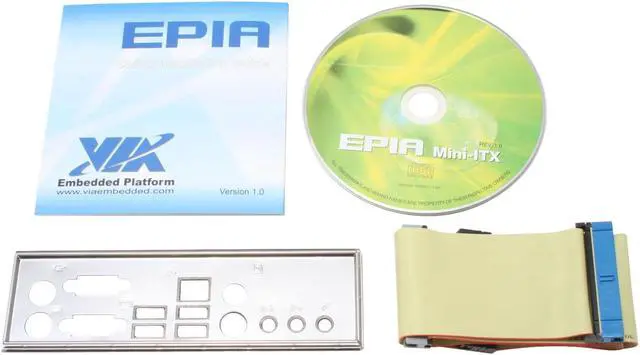

| Package Contents | EPIA-EN15000G User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable |
|---|
| First Listed on Newegg | June 18, 2007 |
|---|
