UOTEK Industrial PCI to RS232 Serial Card 16-Port RS-232 Serial Expansion Card Serial Cable 9pin COM Port HDR78 Female Connector UT-7516
- Transmission rate: 300bps-921.6kbps
- Stream control: RTS/CTS XON/XOFF
- Operating temperature: -40~85°C
- Support system: Win98/2000/WinXP/2003/Vista/2008/Win7/8/8.1/10 32/64DOS/Linux 2.4/2.6
+
+
Overview
Specs
Reviews
Parameter:
Hardware Interface

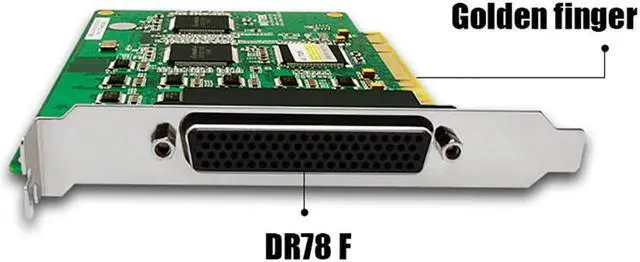

Connection Type: 1 HDR78 Female
BUS: 32 bit Universal PCI
Signal:
RS-232: RXD, TXD, GND, RTS, CTS
Transmission rate: 300bps- 921.6 kbps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity bits: None, Even, odd
Stream control: RTS/CTS XON/XOFF
Operating temperature: -40~85°C
Support system: Win98/2000/WinXP/2003/Vista/2008/Win7/8/ 8.1 /10 32/64DOS/Linux 2.4 / 2.6

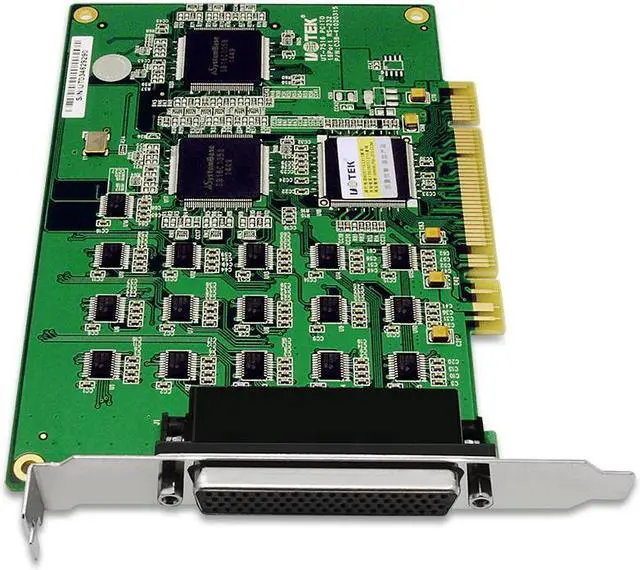

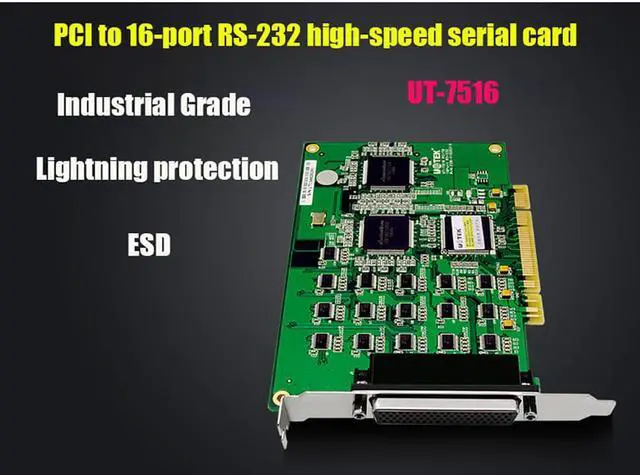

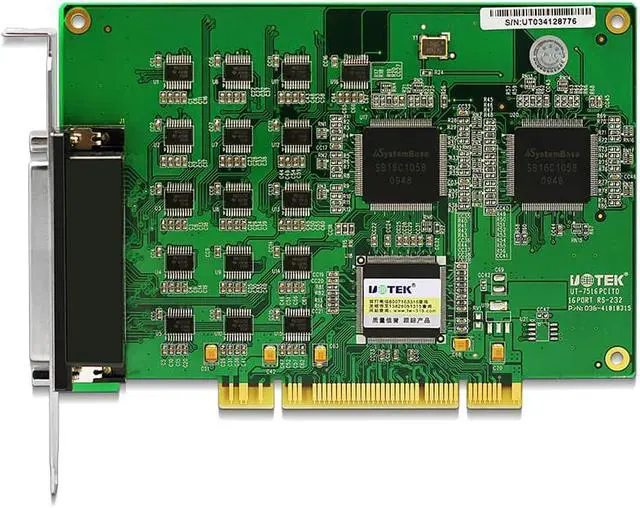

UT-7516 is a universal PCI serial card designed for POS, ATM and other applications that can be used in industrial automation system manufacturing and system integration. UT-7516 provides 16 RS-232 serial ports that can connect to a wide range of serial devices such as PC, terminals, modems, printers, scanners and more. Each port is capable of data rates up to 921.6K bps, providing modem control signals to ensure compatibility with serial device peripherals. the UT-7516 can operate under 3.3V and 5V PCI bus, allowing the multi-serial card to be installed in any available PC or server.
Hardware Interface
Connection Type: 1 HDR78 Female
BUS: 32 bit Universal PCI
Signal:
RS-232: RXD, TXD, GND, RTS, CTS
Transmission rate: 300bps- 921.6 kbps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity bits: None, Even, odd
Stream control: RTS/CTS XON/XOFF
Operating temperature: -40~85°C
Support system: Win98/2000/WinXP/2003/Vista/2008/Win7/8/ 8.1 /10 32/64DOS/Linux 2.4 / 2.6
UT-7516 is a universal PCI serial card designed for POS, ATM and other applications that can be used in industrial automation system manufacturing and system integration. UT-7516 provides 16 RS-232 serial ports that can connect to a wide range of serial devices such as PC, terminals, modems, printers, scanners and more. Each port is capable of data rates up to 921.6K bps, providing modem control signals to ensure compatibility with serial device peripherals. the UT-7516 can operate under 3.3V and 5V PCI bus, allowing the multi-serial card to be installed in any available PC or server.
