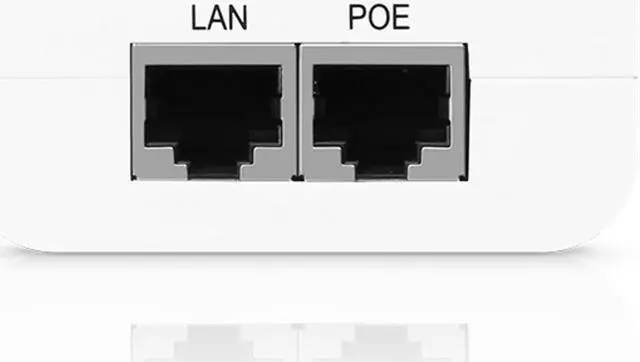

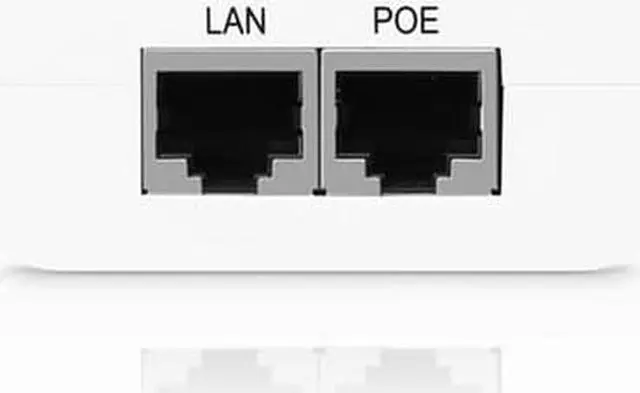

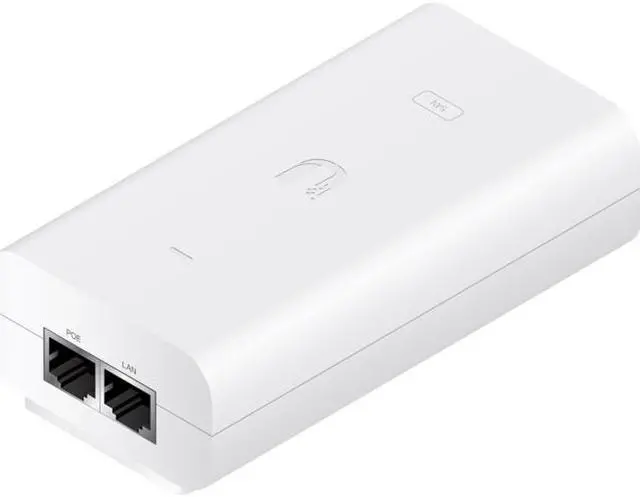

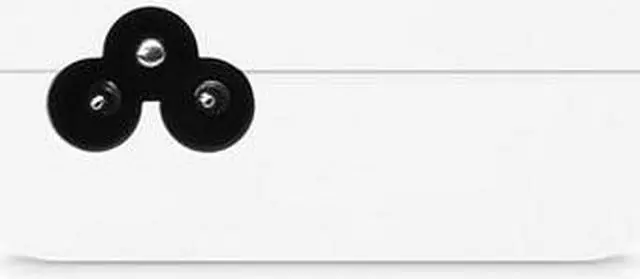

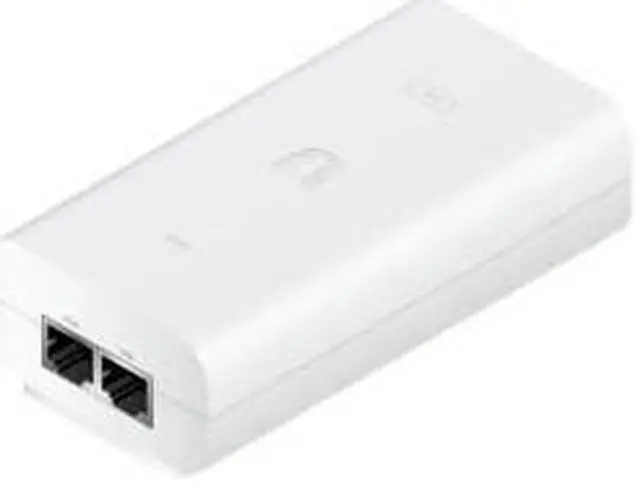

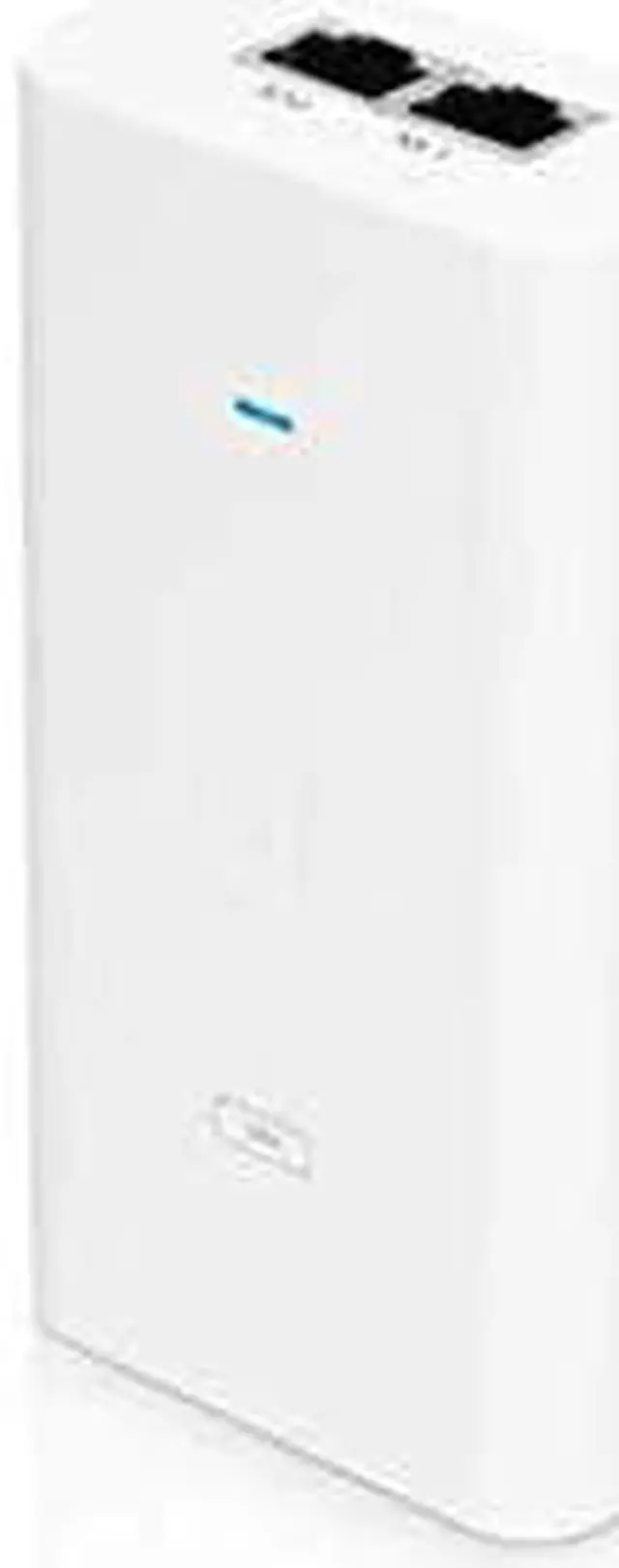

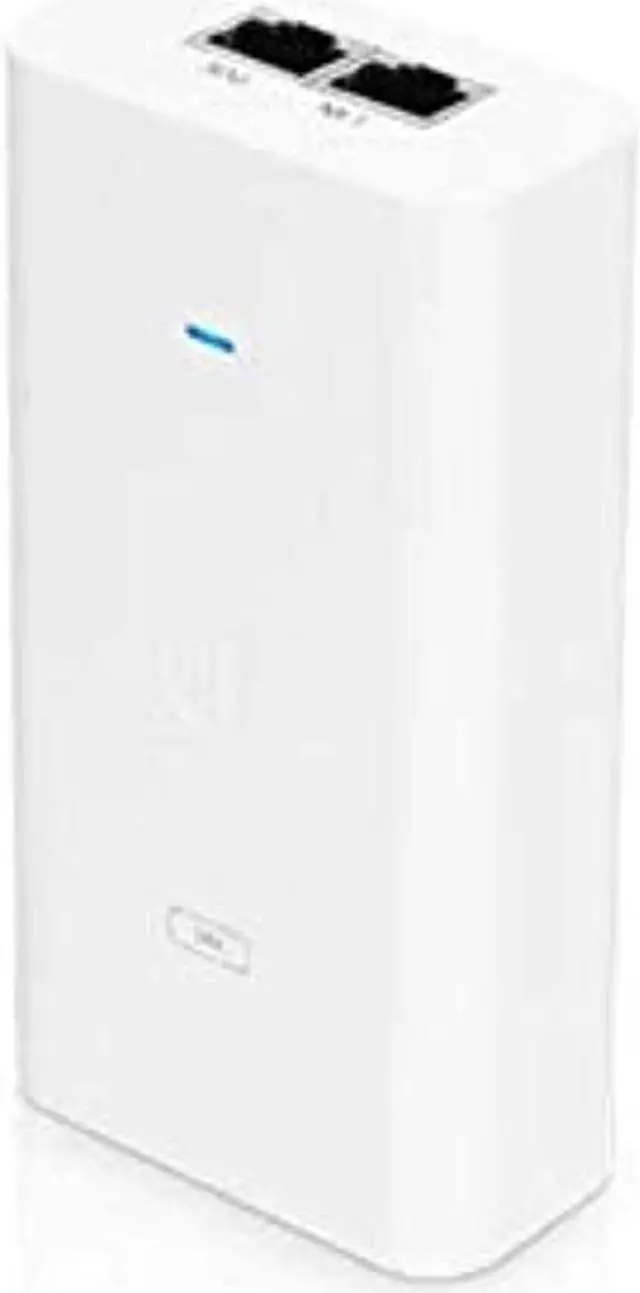

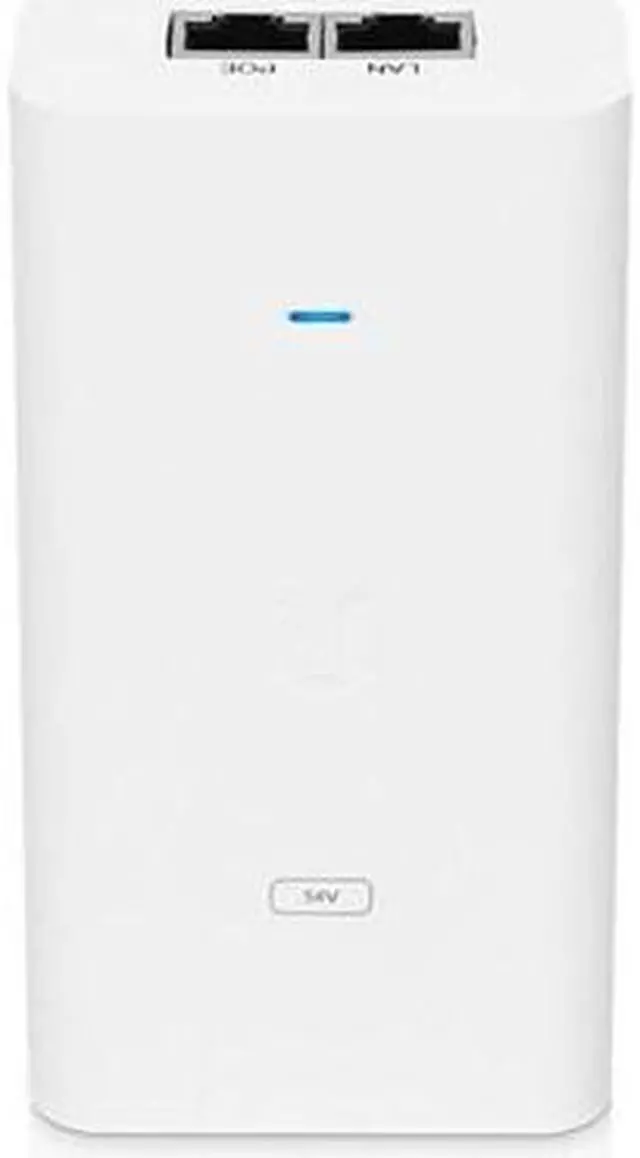

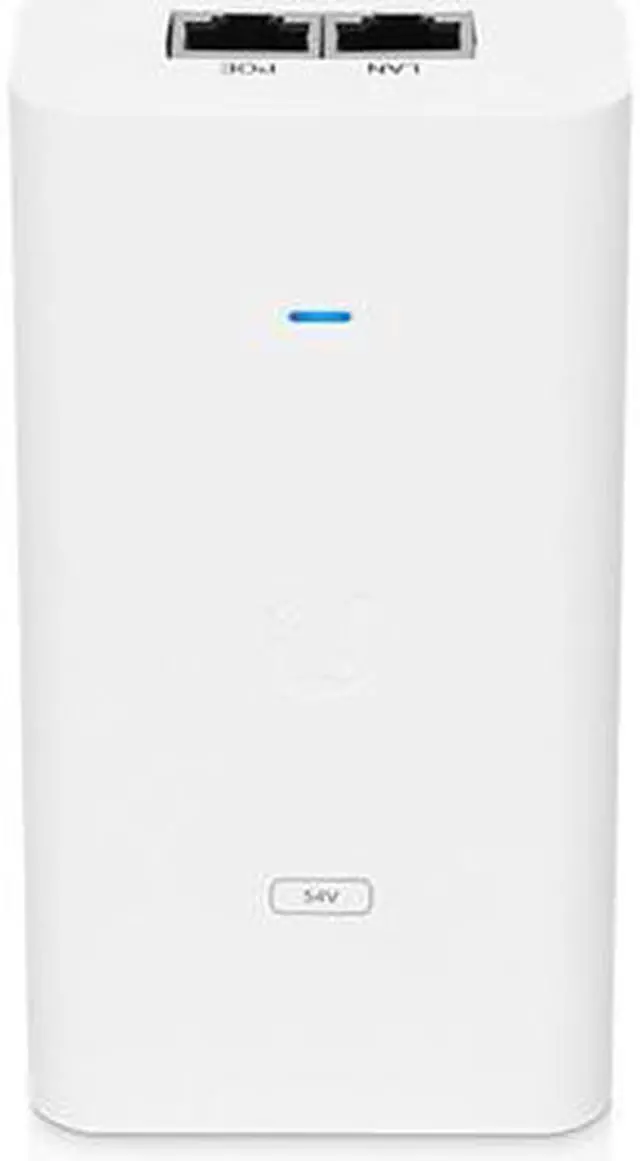

Main image of Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 2 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 3 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 4 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 5 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 6 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 7 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 8 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 9 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 10 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 11 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 12 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 13 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 14 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 15 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 16 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 17 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 18 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 19 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Alt view image 20 of 20 - Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Shop All Ubiquiti Networks Products

Ubiquiti Networks EdgePoint PoE Injector, 54VDC, 80W (POE-54V-80W)

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.
Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground

Overview

Specs

Reviews

Ubiquiti EdgePoint Power over Ethernet Injector - 120 V AC, 230 V AC Input - 54 V DC, 1.50 A Output - 10/100/1000Base-T Input Port (s) - 10/100/1000Base-T Output Port (s) - 80
WProtection Type: Surge
ProtectionInput Voltage: 120
V ACInput Voltage: 230 V ACMaximum
Output Voltage: 54 V DCMaximum
Output Power: 80
WInput Ports: 10/100/1000Base-TOutput
Ports:
10/100/1000Base-THeight: 1.3W
idth: 4.8"D
epth: 2.6"W
eight (Approximate): 10.55
ozCompatibility: Ubiquiti
EdgePoint Switches: EP-R8 EP-S16
Certifications & Standards: IEC 60950- 1:2005 +A1 UL60950-1 EN 55022:2010 EN 55024:2010 FCC Class B RCM "

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

Type	PoE Injector
Color	White
Specifications	Dimensions: 123 x 65 x 34 mm (4.8" x 2.6" x 1.3") Weight: 299 g (10.6 oz) Output voltage: 54V DC @ 1.5A LAN activity indicator: No Gigabit LAN port: Yes Remote reset capability: No Reset button: No Rated voltage: 100-240V AC @ 50/60Hz Input current: 0.8A @ 120V AC, 0.4A @ 240V AC Inrush current: <80A Peak @ 120V AC, <120A Peak @ 230V AC Efficiency: 87+% Output ripple: 1% Max. Switching frequency: 100 kHz Max. Line regulation: <= 3% Load regulation: <= 5% 2-pair powering: - 4-pair powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) AC connector: IEC-320 C6 Data IN / PoE: RJ45 shielded socket Surge protection: Difference and common mode Clamping protection: 11V data, 60V power Max. surge discharge: 1500A (8/20 µs) power Peak pulse current: 36A (10/1000 µs) data Shunt capacitance: <5 pF data Response time: <1 ns Storage temperature: -30 to 70°C (-22 to 158° F) Ambient operating temperature: 0 to 40° C (32 to 104° F) Ambient operating humidity: 35 to 95% noncondensing Certifications: CE, FCC, IC, UL
