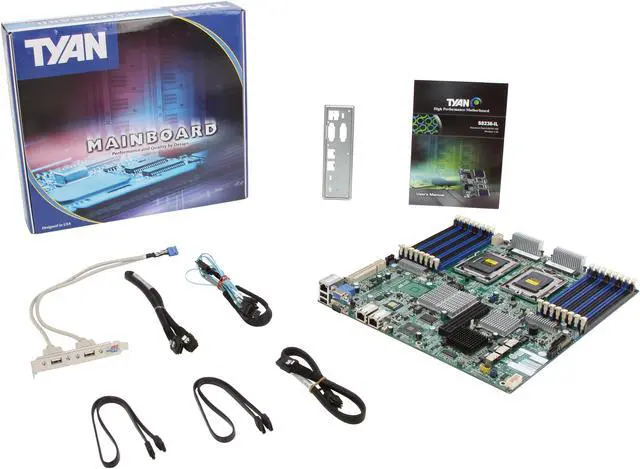

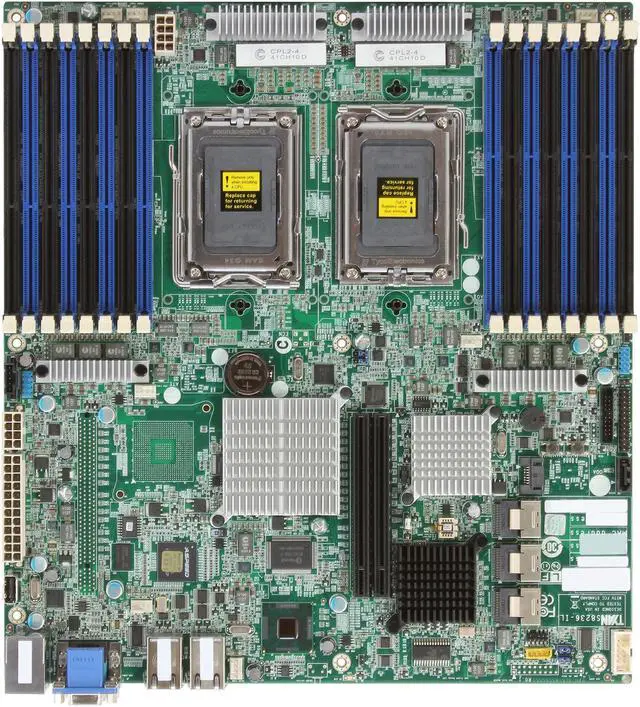

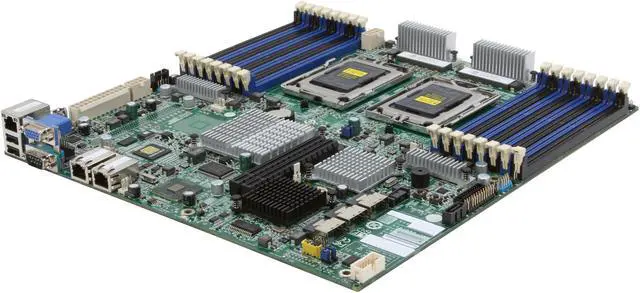

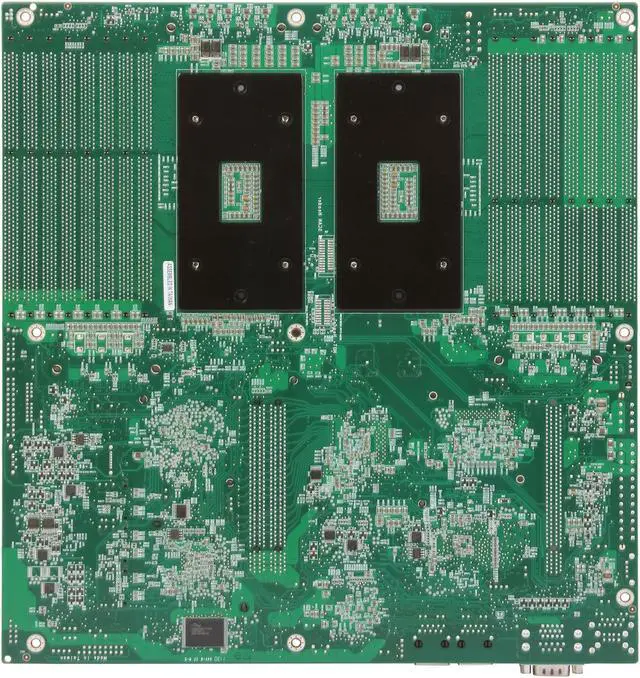

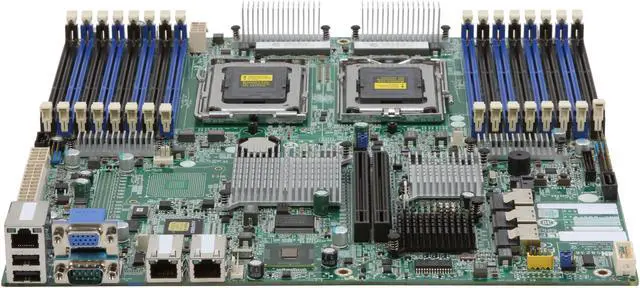

TYAN S8236WGM3NR-IL SSI EEB Server Motherboard Dual Socket G34 AMD SR5690 DDR3 1600
- Dual Socket G34
- AMD SR5690
- 16 x 240pin
Specs
Reviews (1)
Learn more about the TYAN S8236WGM3NR-IL
| Brand | TYAN |
|---|---|
| Model | S8236WGM3NR-IL |
| CPU Socket Type | Dual Socket G34 |
|---|---|
| CPU Type | AMD Opteron 6200/6100 Series |
| Supported CPU Technologies | Up to 6.4 GT/s Hyper-Transport link support |
| North Bridge | AMD SR5690 |
|---|---|
| South Bridge | AMD SP5100 |
| Number of DDR3 Slots | 16 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600 |
| Maximum Memory Supported | Up to 256GB RDIMM/ 64GB UDIMM |
| Channel Supported | 4 Channels per CPU |
| PCI Express 2.0 x16 | 2 |
|---|
| SATA | (1) Mini-SAS (4-port) + (2) SATA (totally support 6 ports) |
|---|---|
| SATA RAID | RAID 0/1/10/5 (Promise Integrated Software RAID) |
| SAS | Connector: (2) Mini-SAS connectors (totally support 8 ports) Controller: LSI SAS2008 Speed: 6.0 Gb/s |
| SAS RAID | RAID 0/1/1E/10 (LSI Integrated RAID) |
| Onboard Video Chipset | Aspeed AST2050 |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82576EB |
| Second LAN Speed | Dual 10/100/1000Mbps |
| Max LAN Speed | 3 x 1Gbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 1 type A onboard |
|---|
| Features | Supported CPU Series: AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-Cours) AMD 32nm 8-Core/12-Core/16-Core Opteron 6200 Series Processors (Interlagos) |
|---|
| Form Factor | SSI EEB |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | January 16, 2012 |
|---|
