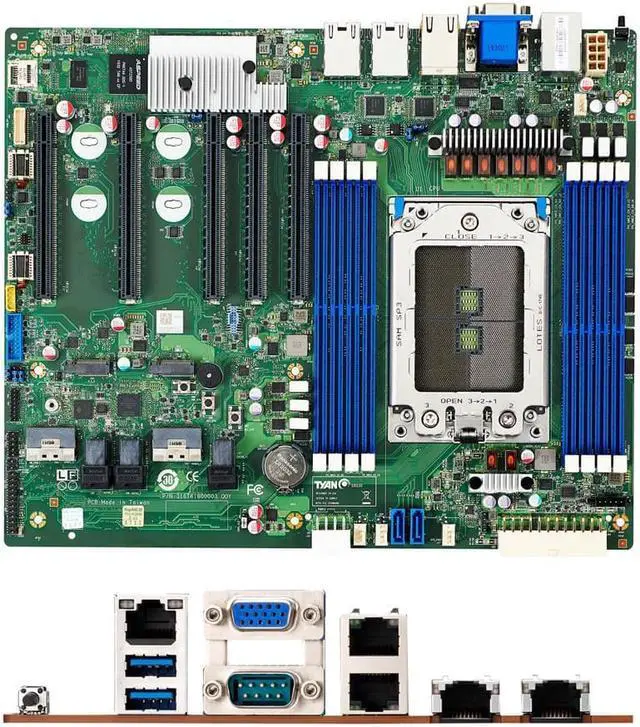

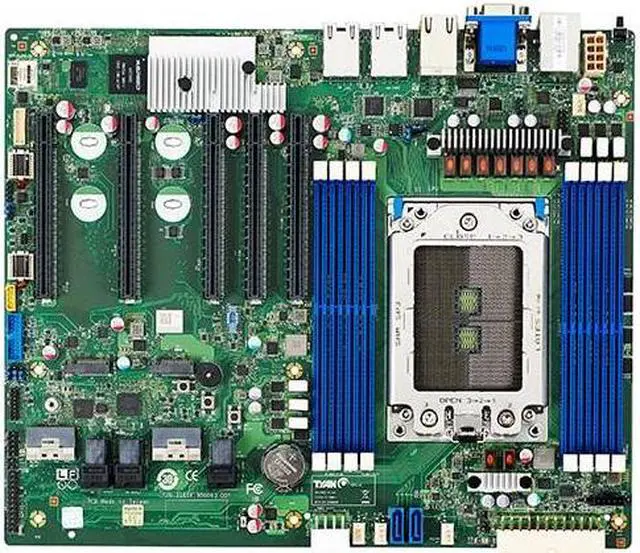

Tyan MB S8030GM4NE2T AMD EPYC7003 Socket SP3 Max512GB DDR4 PCIE ATX,AMD EPYC 7003 with 3D V-Cache technology (Milan-X) Compact Board
- Features support for PCIe Gen 4.0, DDR4-3200, and CPU TDP up to 280W all in a 12x9.8" ATX form factor. Low loss PCB & no PCIe redriver/retimer chips for a low cost PCIe Gen 4.0 solution.
- Memory
- (8) DDR4 DIMM slots (8 memory channels)
- Supporting up to 2TB RDIMM/LRDIMM/NVDIMM DDR4-3200
- PCIe Expansion Slots(5) PCIe Gen 4.0 x16 slots
- Network
- (2) 1000Base-T LAN Ports (Intel i210)
- (2) 10GBase-T LAN Ports (Intel X550-AT2)
- (1) 1000Base-T Dedicated IPMI Port (Realtek TRL8211 PHY)
- Storage
- (12) SATA 6G ports across 3x SFF-8643 MiniSAS HD connectors
- (2) SATA 6G ports in 7-pin SATA connectors
- (4) PCIe Gen 4.0 NVMe ports across two 74P Slimline connectors
- (2) 2280/22110 PCIe Gen 3.0 x4 NVMe M.2 ports
- Optional TPM 1.2 & 2.0 modules
- AST2500 BMC /w IPMI, iKVM, and Redfish Support
+
+
Overview
Specs
Reviews (1)
Tyan MB S8030GM4NE2T AMD EPYC7002 Socket SP3 Max512GB DDR4 PCIE ATX Retail
