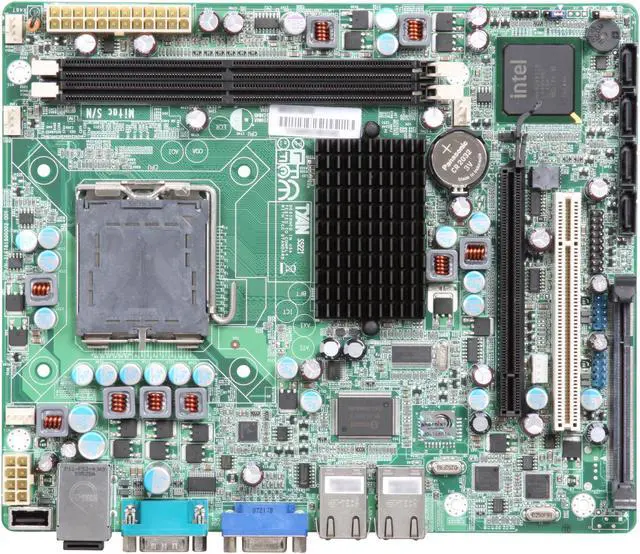

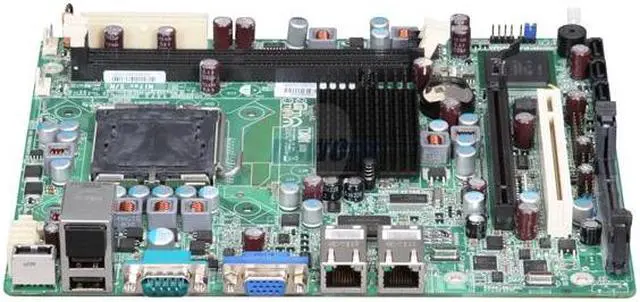

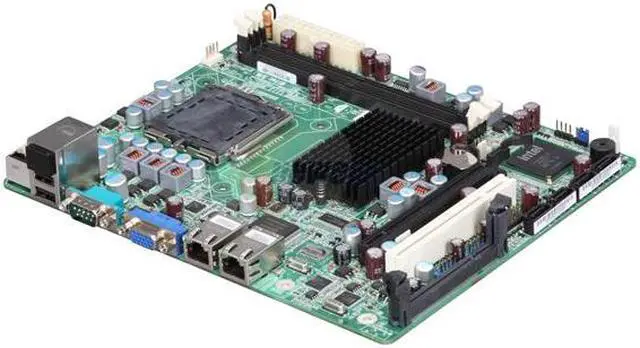

TYAN S5221G2N Flex ATX Server Motherboard LGA 775 Intel Q35 DDR2 800
- LGA 775
- Intel Q35
- 2 x 240Pin
Specs
Reviews (1)
Learn more about the TYAN S5221G2N
| Brand | TYAN |
|---|---|
| Model | S5221G2N |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Xeon 3000 Series/Core 2 Extreme/Core 2 Quad/Core 2 Duo/Pentium D/Celeron |
| System Bus | 1333/ 1066/ 800 MHz |
| North Bridge | Intel Q35 |
|---|---|
| South Bridge | Intel ICH9 |
| Number of DDR2 Slots | 2 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Slots | 1 x PCI Slot |
| SATA | 4 x SATA 1.5Gb/s |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | Flex ATX |
|---|---|
| Dimensions (W x L) | 9.0" x 7.5" |
| First Listed on Newegg | December 15, 2009 |
|---|
