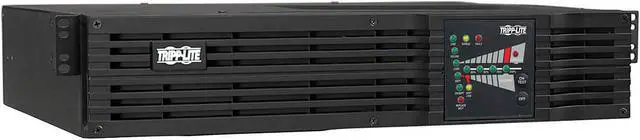

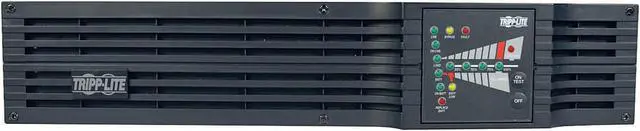

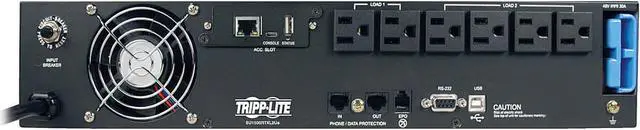

Tripp Lite SmartOnline 120V 1.5 kVA 1.2 kWatts Double-Conversion UPS, 2U Rack / Tower, Extended Run, Pre-installed WEBCARDLX Network Interface, USB, DB9 Serial (SU1500RTXL2UN)
Be the first to review this product...
1500 VA / 1.5 kVA / 1200 Watts on-line double-conversion 2U rack / tower UPS
100 / 110 / 120V +/- 2% output at 50/60 Hz, High 95% efficiency economy mode option
Expandable runtime, Hot-swap batteries; 19.00" installed depth
USB, RS232, EPO and pre-installed WEBCARDLX Network Interface
2 independently switchable output load banks
Overview
Specs
Reviews
1500VA 1200W UPS Smart Online Rackmount 100V-120V USB SNMP 2URM
Learn more about the Tripp Lite SU1500RTXL2UN
Model
Brand
TRIPP LITE
Model
SU1500RTXL2UN
Input
Input Voltage Range
100V AC; 110V AC; 120V AC
Output
VA Rating
1500 VA
Watts
1200 Watts
Output Voltage
100V; 110V; 120V
Outlets
6
Outlet Type
5-15R
Battery
Battery Type
Valve Regulated Lead Acid (VRLA)
Battery Run Time
Full load runtime: 5 min. with internal batteries (1200w)
Half load runtime: 14 min. with internal batteries (600w)
Battery Replaceable
RBC94-2U
Details
Interface Port
DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
Management Software
PowerAlert
Approvals
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Rackmountable
2U
Surge Protection
Data Line Protection
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Surge Energy Rating
600 joules
Features
Features
Tripp Lite SU1500RTXL2UN 1500VA / 1.5kVA / 1200W on-line, double-conversion 2U rackmount UPS
Selectable 100/110/120V output(120V factory preset)
NEMA 5-15P input, 6 NEMA 5-15R
Two switched load banks support remote reboot or programmable load shedding options
Supports 2% output voltage regulation and zero transfer time in double conversion mode
Economy mode option offers enhanced 97% efficiency operation, reduced power consumption and lower BTU emissions
14 minutes runtime at 50% load(600W) and 5 minutes at 100% load(1200W) with internal batteries
BP48V24-2U(limit 1), BP48V60RT-3U(multi-pack compatible) and BP48V27-2US(multi-pack compatible) external battery packs available(some configurations require Tripp Lite's External Battery Configuration Software)
Intelligent battery management system extends battery life
LED Display reports UPS operating mode, line power availability, battery mode operation, inverter status and output power availability
Audible alarm with push-button momentary alarm-cancel
4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack installation
Single line TEL / Network surge suppression
Electronic bypass maintains utility output during a variety of UPS fault conditions
Built-in USB, RS-232, contact-closure and SNMPWEBCARD network interface
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software
Dimensions & Weight
Dimensions
9.80" x 20.20" x 24.00"
Weight
44.10 lbs.
Package Contents
Package Contents
SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD
PowerAlert Software and cabling
Mounting hardware for 4 post rack enclosures
Instruction manual
