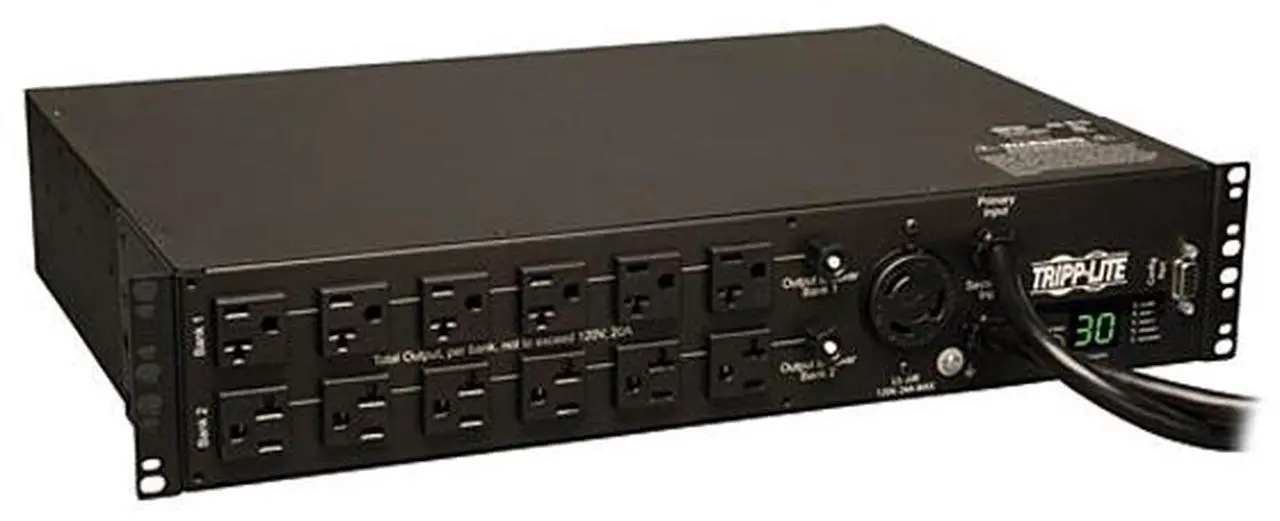

Main image of Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

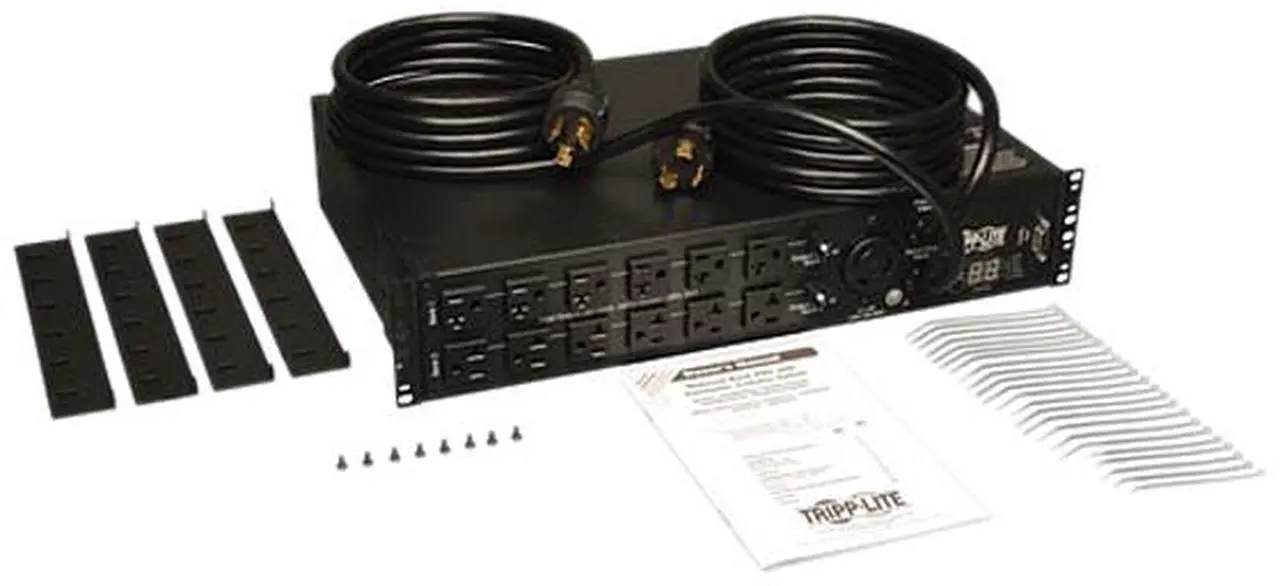

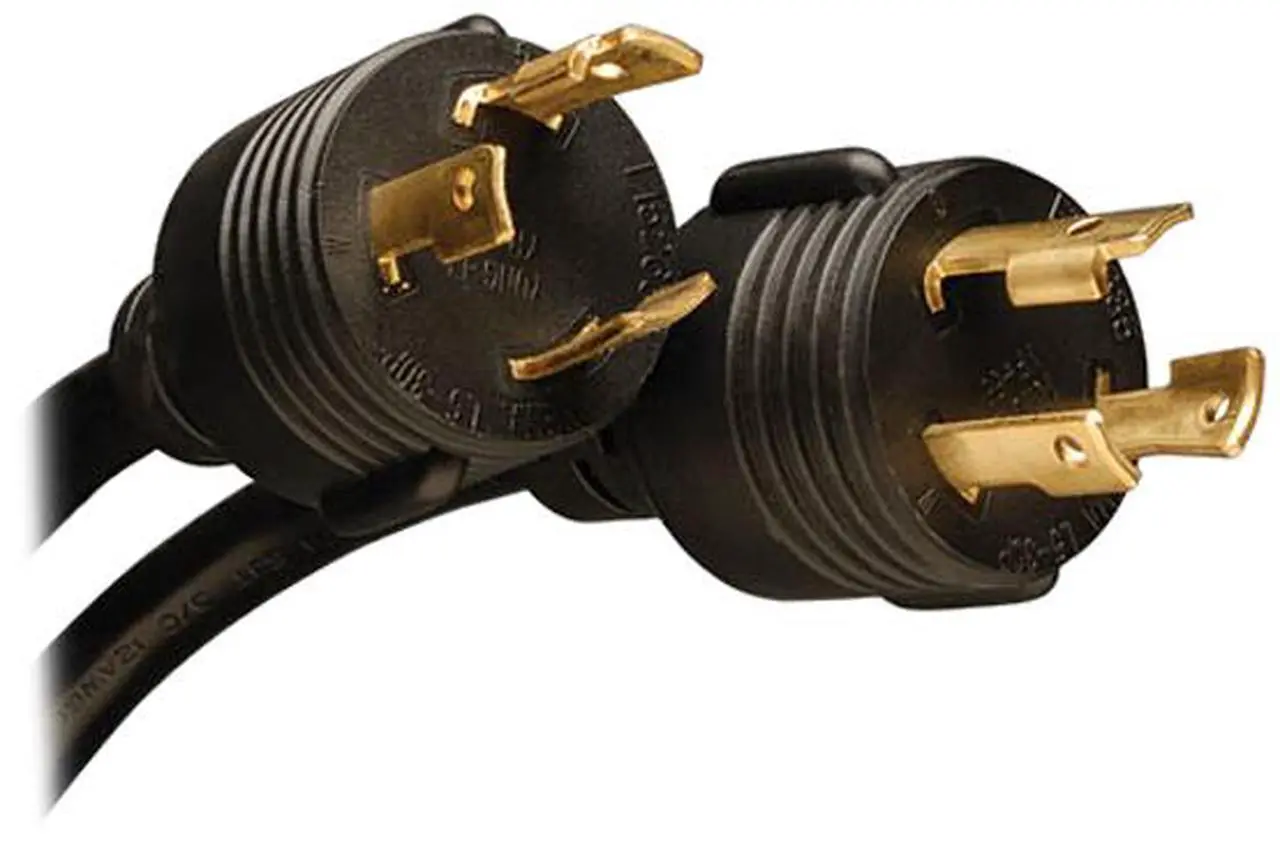

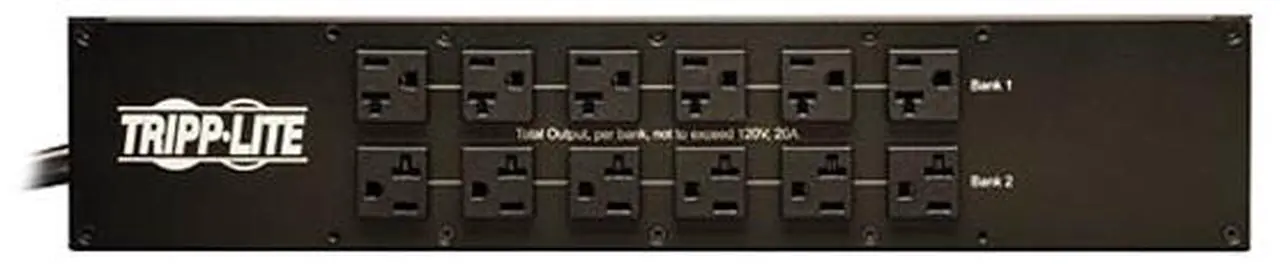

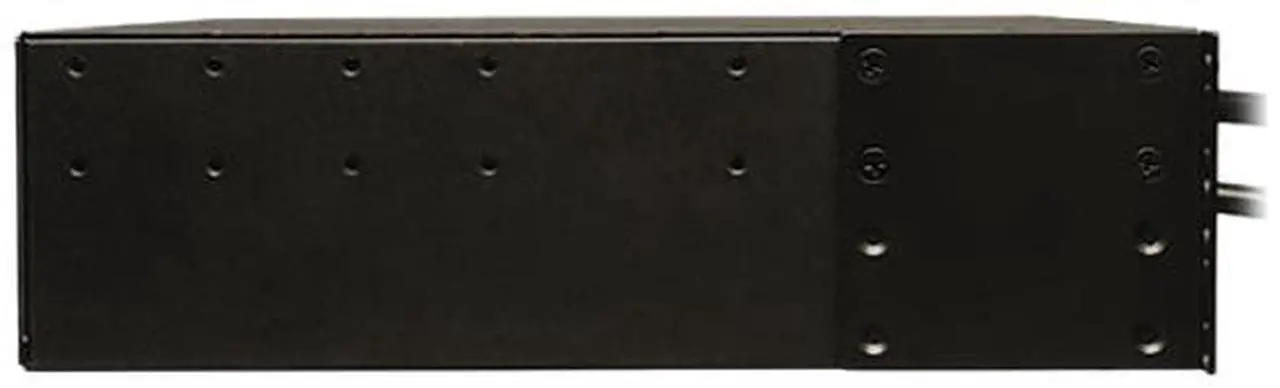

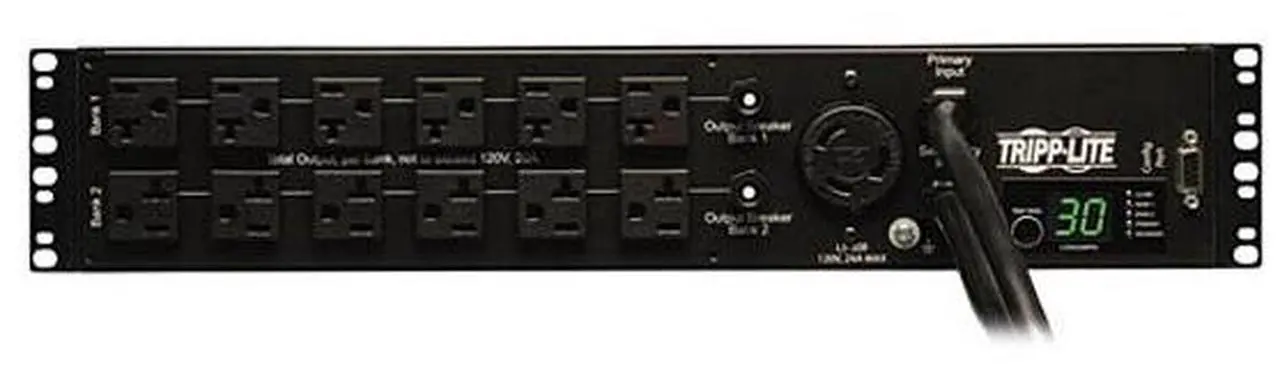

Alt view image 2 of 6 - Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Alt view image 3 of 6 - Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Alt view image 4 of 6 - Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Alt view image 5 of 6 - Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Alt view image 6 of 6 - Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Shop All Tripp Lite Products

Tripp Lite Metered PDU with ATS, 2.9 kW Single-Phase 120V Outlets (24 x 5-15/20R, 1 x L5-30R), 2 x L5-30P, 2 x 10 Feet Cords, 2U Rack-Mount, TAA (PDUMH30AT)

Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
Separate primary & secondary inputs connect to any two compatible power sources
2U horizontal rackmount; 2 x L5-30P inputs; 24 x 5-15/20R & 1 x L5-30R outlets
Digital meter reports voltage, kW load level and output amperage in 4 load segments
TAA-Compliant

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy. Read full return policy for details.

Type	Switched, Metered
Rack Size	2U
Style	Rackmount
Front Panel LEDs	Primary and Secondary input connection. Digital current meter display shows the amount of power consumption in amps for entire PDU output.
Certifications	Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
ROHS	Yes

Input Voltage	100V, 120V, 127V
Maximum Input Current	30A
Input Connector(s)	NEMA L5-30P
Cord Length	10 ft.

Output Voltage	100V, 120V, 127V
Output Frequency	60Hz
Output Connector(s)	24 x 5-15/20R & 1 x L5-30R outlets
Overload Protection	2 x 20A output breakers protect 12 x 5-15/20R outlets each

Operating Elevation	0 - 10,000 Feet (0 - 3000 m)
Storage Temperature	-15 to 50 degrees Celsius
Storage Relative Humidity	5-95% non-condensing

Dimensions	3.41" x 17.32" x 11.89"
Weight	13.71 lbs.
