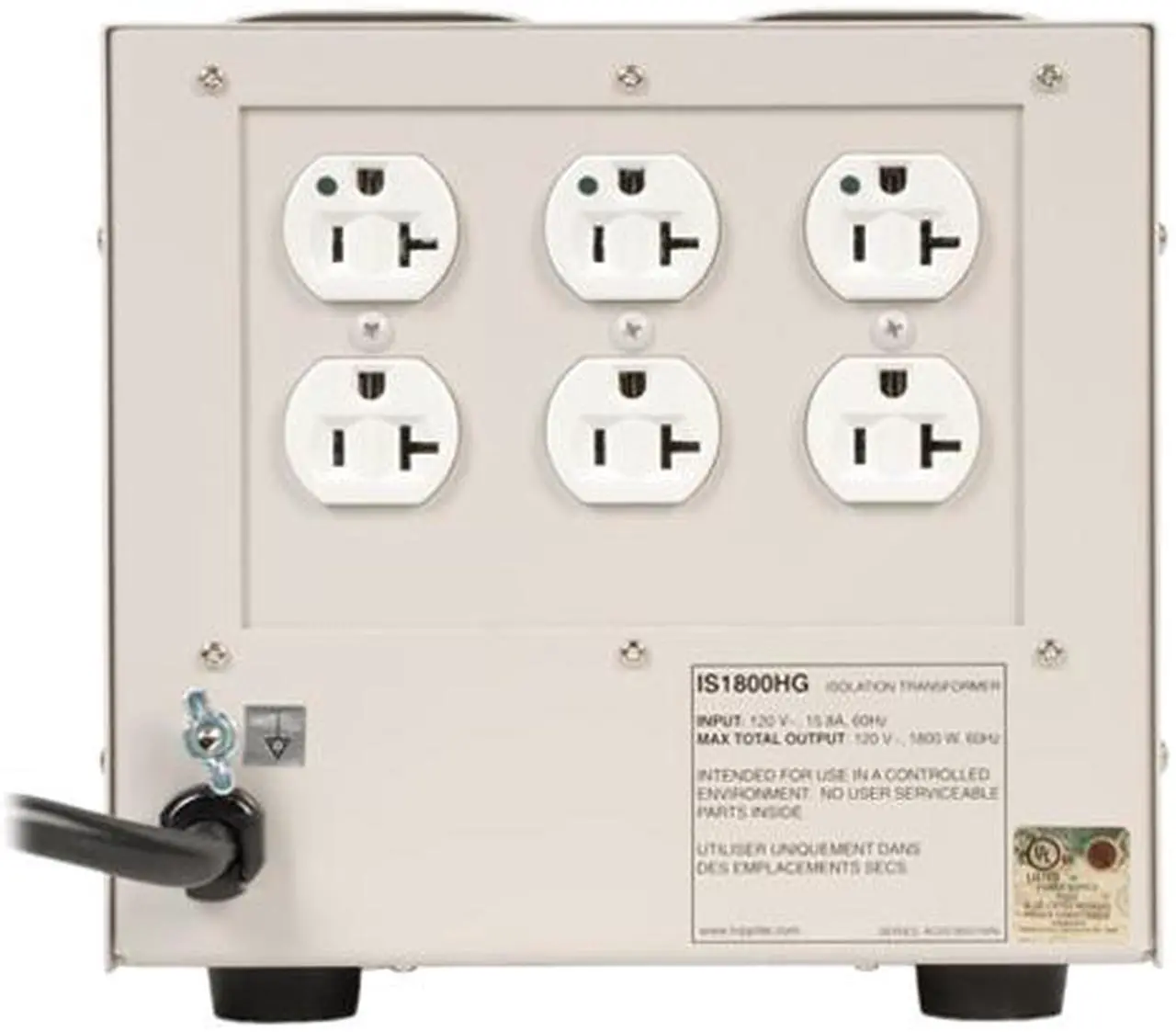

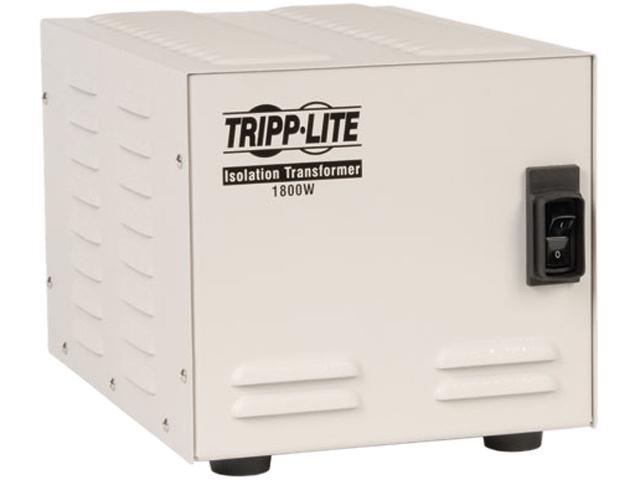

Main image of Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

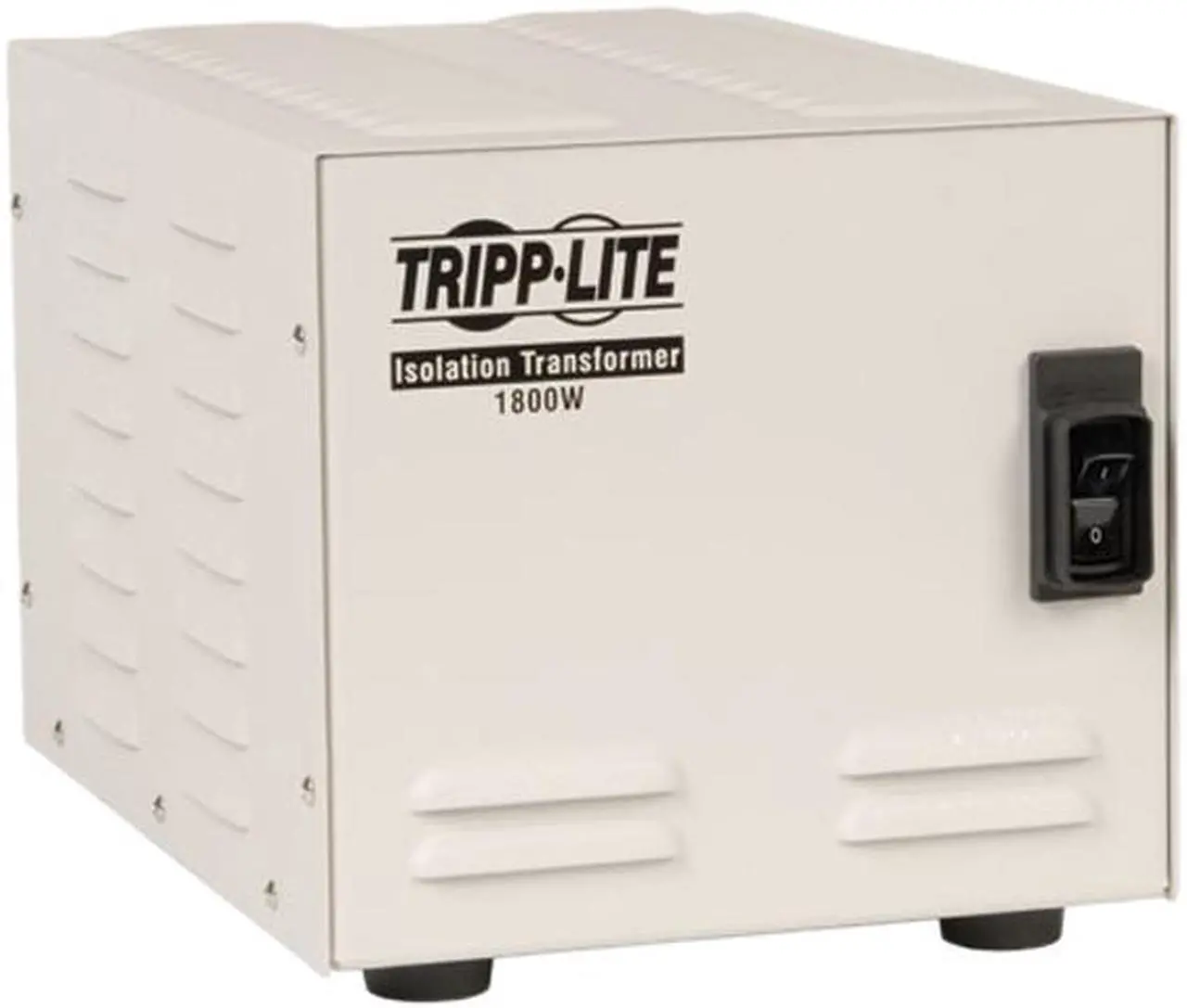

Alt view image 2 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

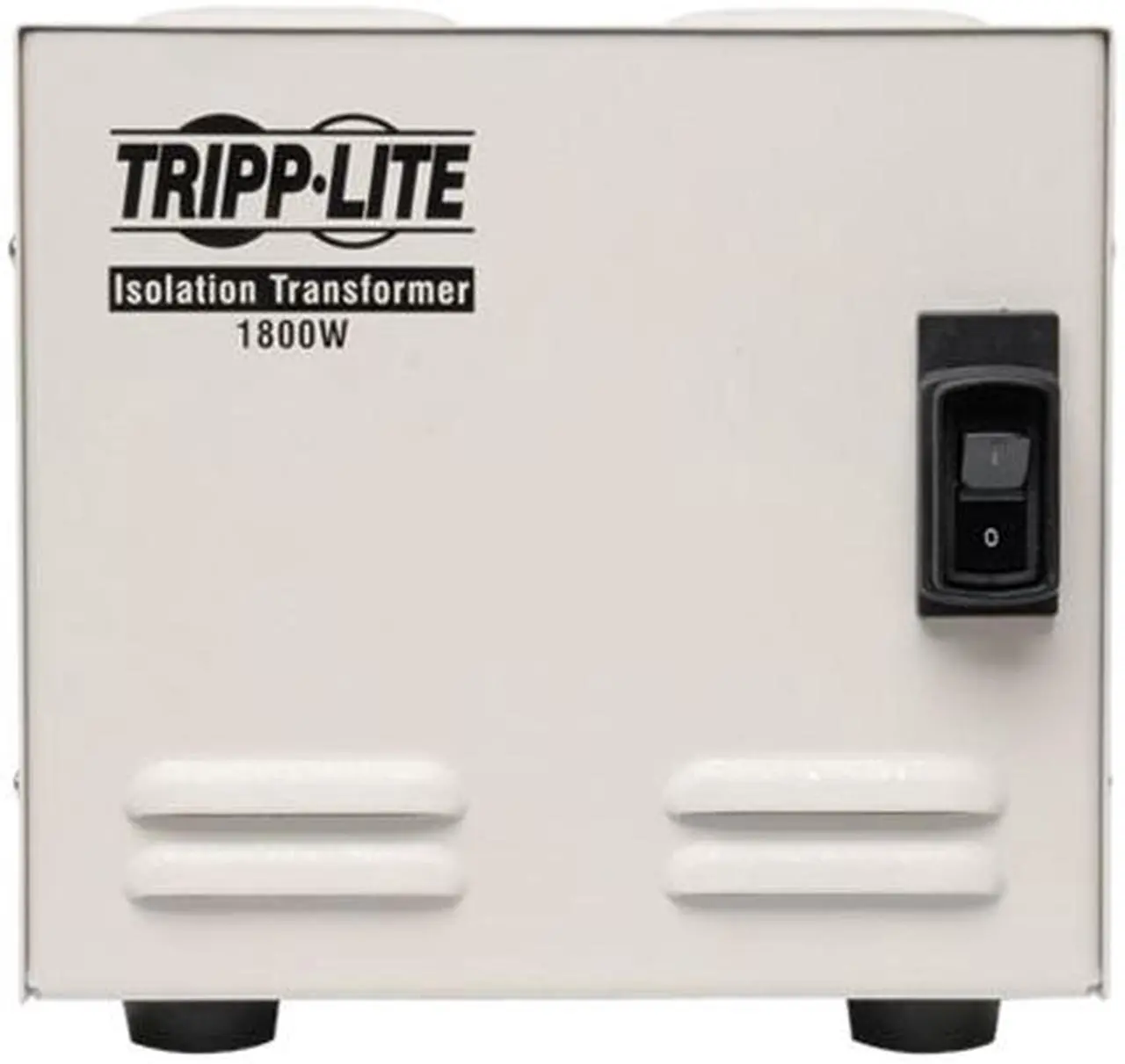

Alt view image 3 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

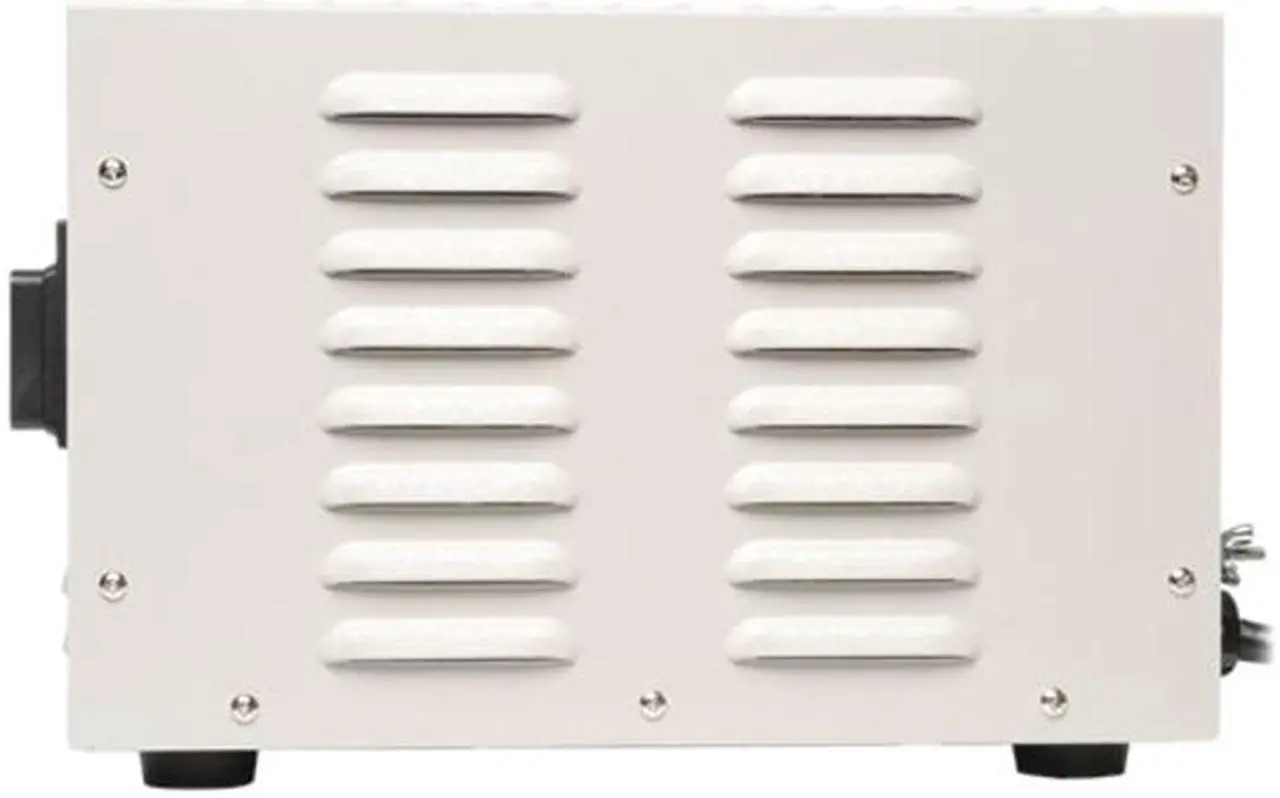

Alt view image 4 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

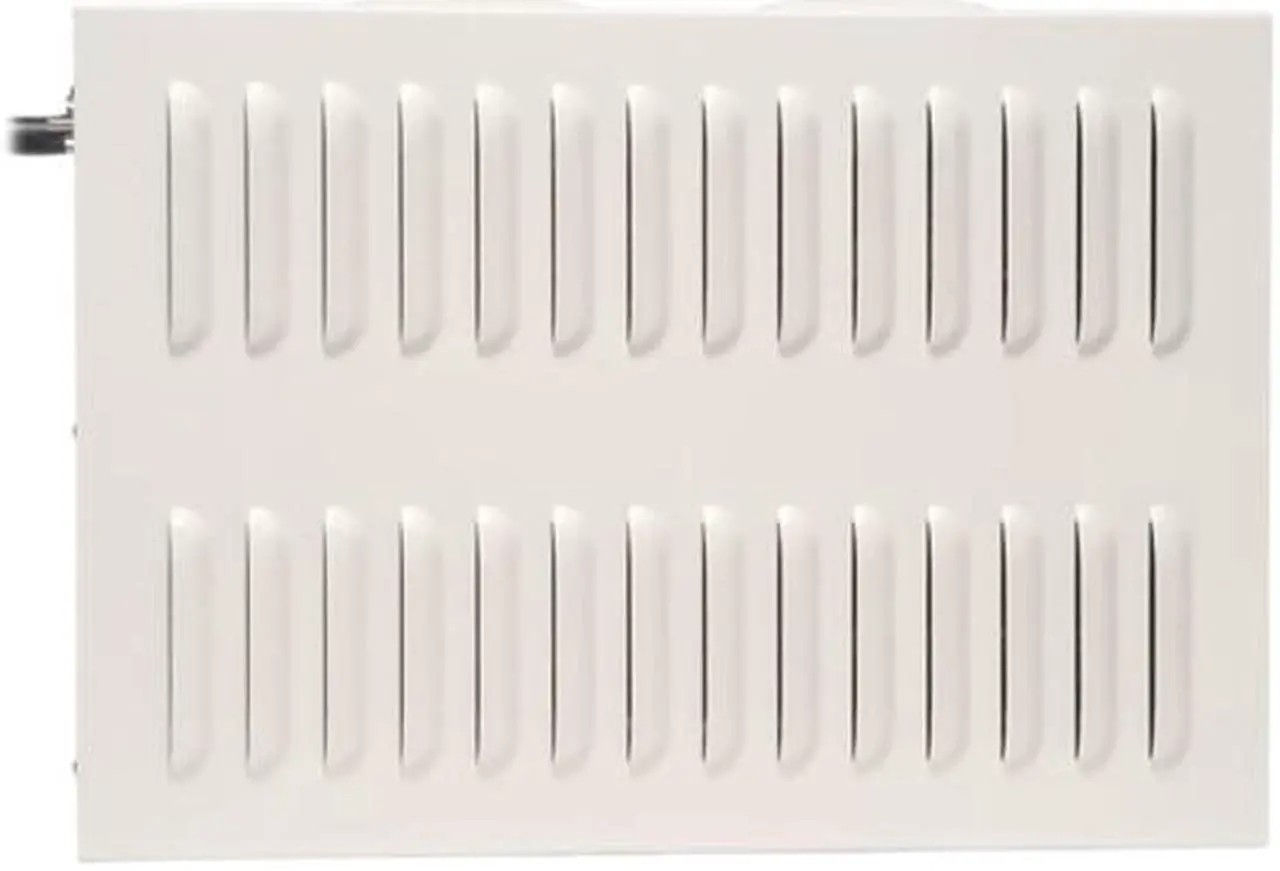

Alt view image 5 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

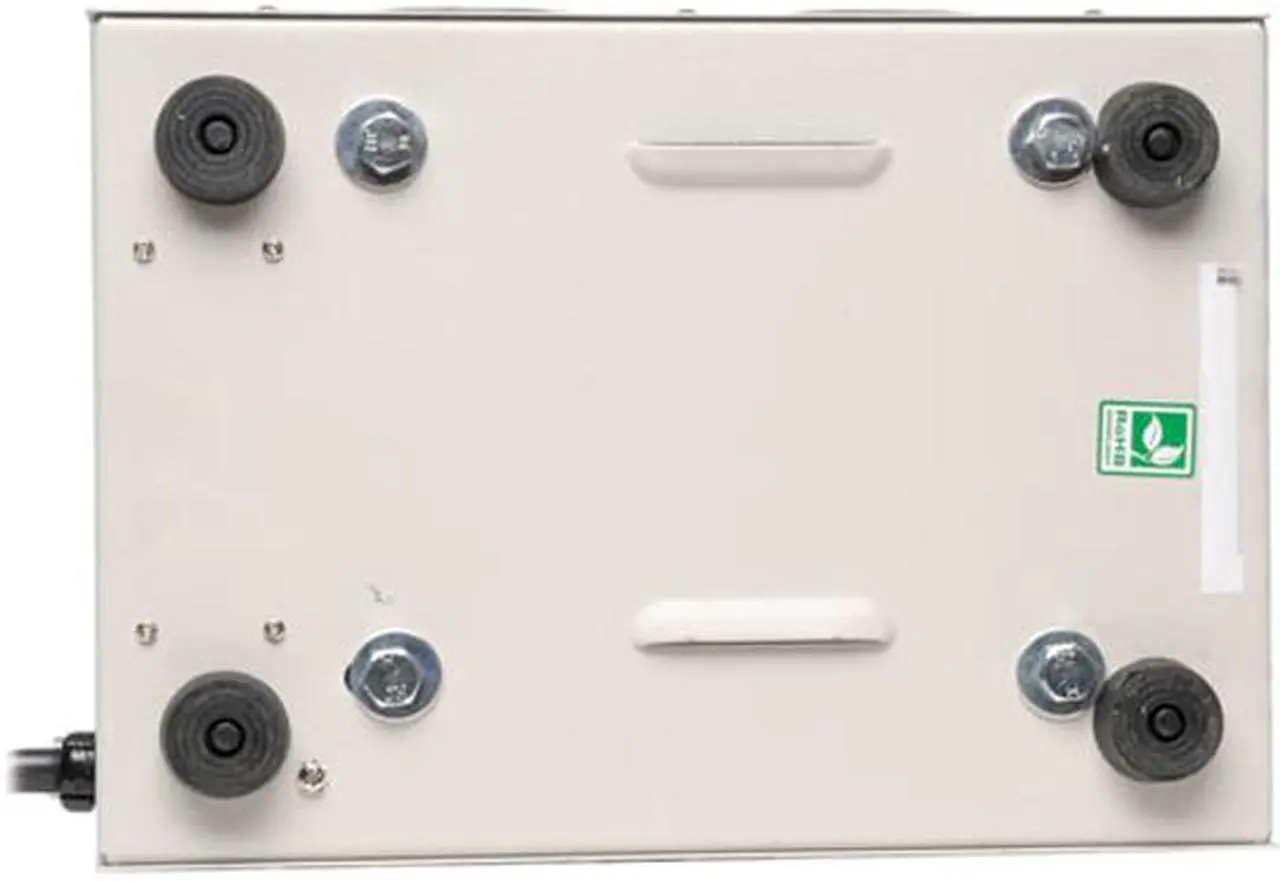

Alt view image 6 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

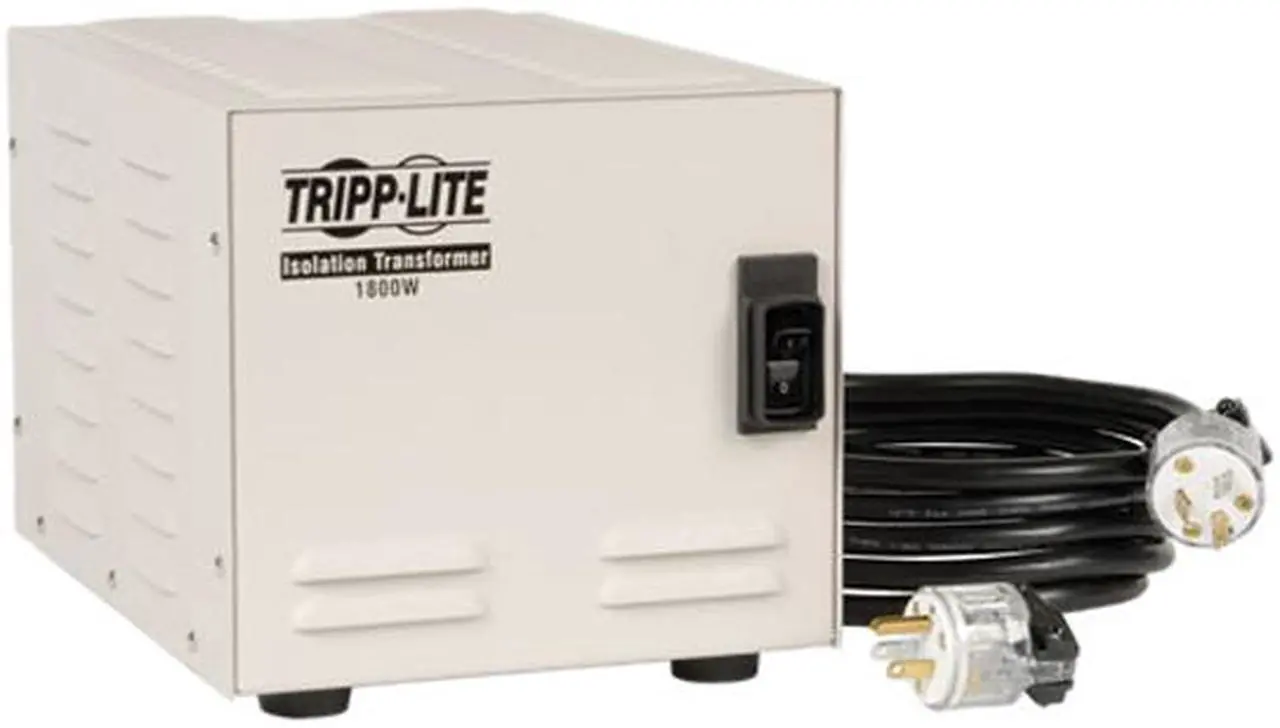

Alt view image 7 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

Alt view image 8 of 8 - Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

Shop All Tripp Lite Products

Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

Name: Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa
Brand: Tripp Lite
SKU: 177-000Z-00019
Rating: 5 (2 reviews)

(2 from Tripp Lite) Write a Review

White

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (2)

Hospital Grade Isolation Transformer, Input Voltage - Transformer 120V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1.8 kVA, NEMA Plug Configuration 5-20P-HG, NEMA Receptacle Configuration 5-20R-HG, Number of Outlets 6, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Desk Top, Outdoor Rated - Transformer No, Temp. Rise Not Rated, Color White. This item has been restricted from sale in the following state (s): []

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.ca's Manufacturer Only Return Policy.
Read full return policy for details.

Brand	TRIPP LITE
Series	Isolator
Model	IS1800HG

Type	Isolation Transformer
Specifications	Efficiency: 96% Let-through Voltage (Combination Wave): L-N: 250V L-G: 250V N-G: 0.5V Let-through Voltage (Ring Wave): L-N: 20V L-G: 20V N-G: 0.5V Nominal Voltage / Frequency: 120V / 60Hz Over Current Protection: 1x thermal, 2 pole, 10 amp Surge Test Conditions: Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms Total Harmonic Distortion: Less than 1% VA / Watt Capacity: 1800 Transformer Type: Hospital Grade, low impedance transformer-based line isolation transformer Output Receptacles: 6 x 5-20R-HG Ouput Amp Capacity: 15 Input Cord Length (ft.): 10 Input Plug Type: NEMA 5-20P-HG Noise Suppression Rating: 35-65 DB Unit Dimensions (hwd / in.): 7.75 x 8.25 x 12.25 Certifications:Tested to UL60601-1

Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa

Learn more about the Tripp Lite IS1800HG
