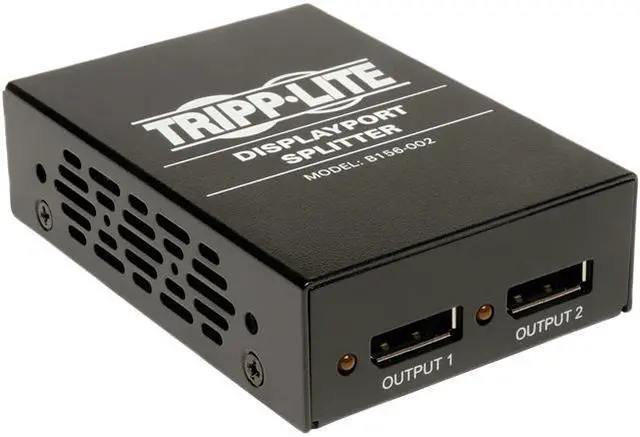

Tripp Lite B156-002 2-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub, 3840 x 2160 4Kx2K UHD

Be the first to review this product...

Split or expand a DisplayPort Cable's audio/video signal to two Display Port equipped monitors (DP, DP++, Display Port++)
Supports 4K x 2K Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (24 and 30 Hz)
Supports up to 48-bit Deep Color (16 bits per channel)
Displayport 1.2 compliant provides you with increased resolutions, higher refresh rates, and greater color depth
Monitor(s) can be located up to 25 ft. from the splitter

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Serial Port: YesNumber of DisplayPort Inputs: 1Number of DisplayPort Outputs: 2Input Voltage: 240 V ACHeight: 1"Width: 3.6"Depth: 2.5"Weight (Approximate): 1 lbPackage Contents: Displayport Multi-Display Splitter/Expander - 2 PortMounting HardwareExternal Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)Environmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 3 Year

Model
Brand	Tripp Lite
Model	B156-002

Details
Splitter Type	Displayport
Specification	Color: Balck

Connection
Other Connector	Connector A: Displayport (female) Connector B: 2 x Displayport (Female)

Compatibility
System Requirements	Computer with Displayport video output; Monitors with Displayport Input

Feature
Feature	Splits a DisplayPort signal to two DisplayPort monitors, or expands the video over both Supports video resolutions up to 1920 x 1080 @ 60Hz (or 3840 x 1080 @ 60Hz when monitors are set to extended mode) Supports 30-bit Deep Color (10-bits per channel) Supports HDCP, EDID and DDC Monitor(s) can be located up to 25 ft. from the splitter Comes with mounting hardware that allows the unit to be wall-mounted, rackmounted or pole mounted Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Dimensions & Weight
Dimensions	3.6"W x 2.52"D x 1"H
Weight	1 lbs.

Package Contents
Package Content	B156-002 Multi-Display Splitter Expander Mounting Hardware External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)

Additional Information
First Listed on Newegg	November 06, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.
