TRENDnet TFC-1600 16-Slot Chassis System for TFC series Fiber Converter 10/100 Mbps 1 x RJ-45 + 1 x RS-232

Be the first to review this product...

10/100 Mbps
1 x RJ-45 + 1 x RS-232

Overview

Specs

Reviews

TRENDnet's TFC-1600 16-slot EIA-19" Rack-Mount Chassis System provides housing for up to 16 TFC series media converters. Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. TFC-1600 rack-mount chassis eliminates the external power adapters for TFC series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple TFC series converters.

Model
Brand	TRENDnet
Model	TFC-1600

Details
Protocols	SNMP(RFC1157), ARP(RFC826), IP(RFC791), ICMP(RFC792), UDP(RFC768), TCP(RFC793), TFTP(RFC783), Telnet(RFC854), BOOT(RFC951), MIB II (RFC1213)
Ports	1 x RJ-45 + 1 x RS-232
Transfer Rate	10/100 Mbps
LEDs	Power x 2, In Use x 2, Fan Fault x 2
Power Adapter	Power: One power supply Input: AC 100 ~ 240 VAC. Power Consumption: 150 watts max

Environmental
Temperature	0° ~ 40° C (32° ~ 104° F)
Humidity	10% ~ 90%

Features
Feature	Provides housing for up to 16 TFC series media converters Front panel LEDs indication Standard 19" rack-mount size, 2U height Hot-Swappable; easy & quick replacement of converter and power supply Single cooling fan (internal) mounted at the rear panel Optional redundant power supply to ensure non-stop reliable operation Optional Management Module Load Sharing mechanism to minimize downtime (available only with redundant power supplies) Power isolation designed with converter bays: ensures each bay is electrically isolated from others Capacity: 16 slots for housing up to 16 TFC series media converters Management Ports: 1 x 10/100Mbps Fast Ethernet RJ45 and 1 x RS-232 Management Protocol: SNMP(RFC1157), ARP(RFC826), IP(RFC791), ICMP(RFC792), UDP(RFC768), TCP(RFC793), TFTP(RFC783), Telnet(RFC854), BOOT(RFC951), MIB II (RFC1213) Power Overload Protection: All outputs protected from short circuit condition with automatic recovery Cooling: Single cooling fan (internal) mounted at the rear panel Housing: Steel sheet metal Certifications: FCC, CE, VCCI

Dimensions & Weight
Dimensions	16.3" x 15.4" x 3.5"
Weight	15.4 lbs.

Package Contents

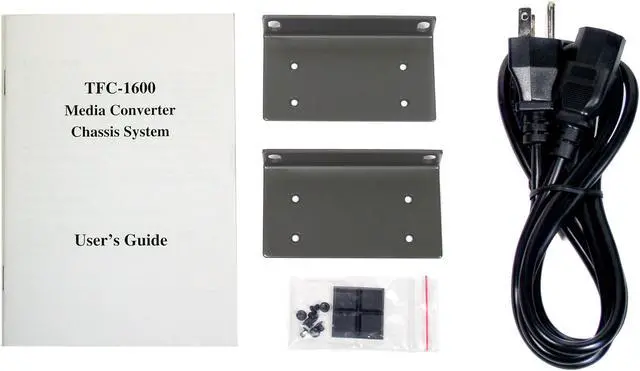

Package Contents	TFC-1600 User Guide Power Cord Rack mount kit Other Accessories

Additional Information
First Listed on Newegg	August 11, 2010
