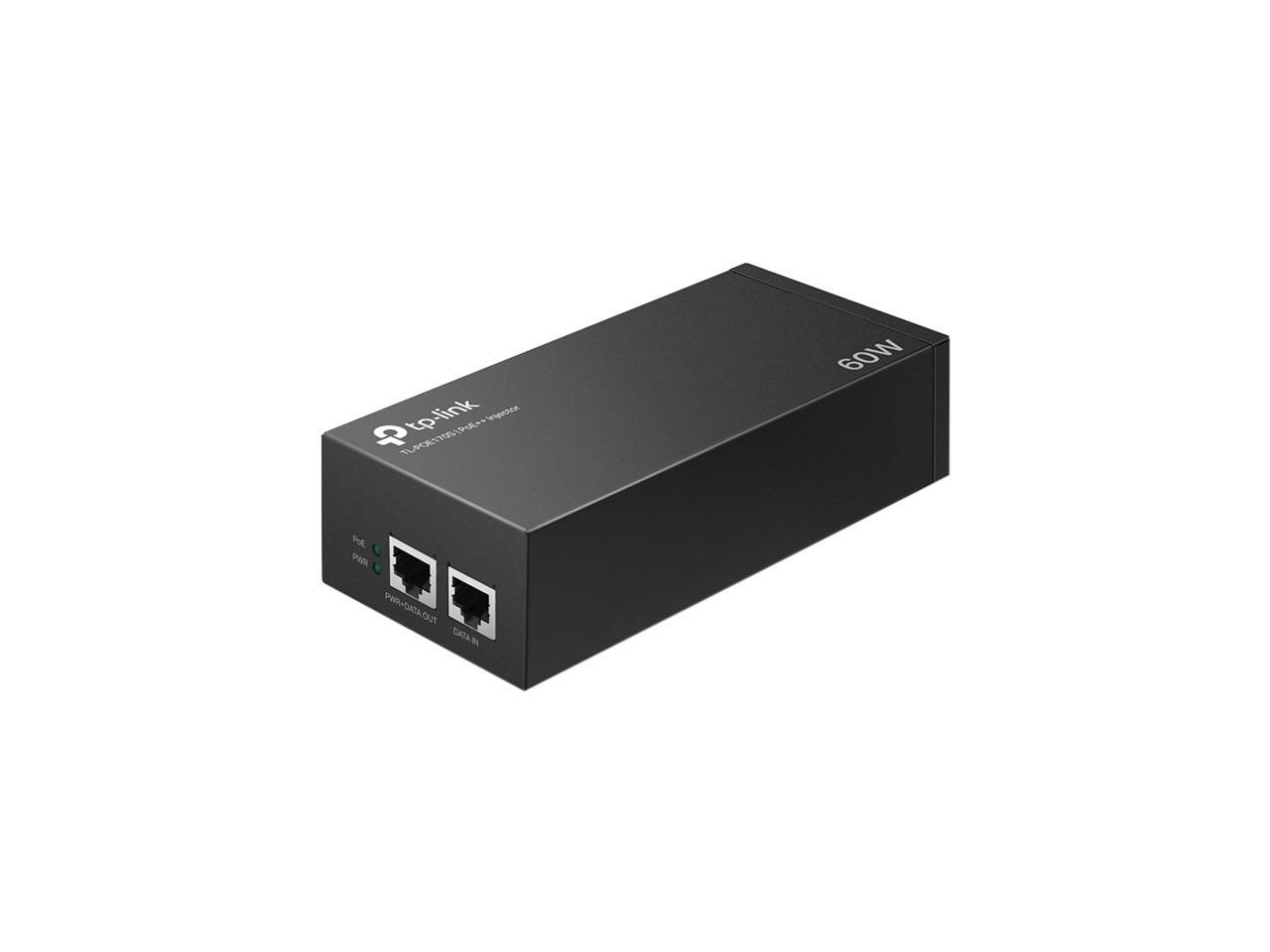

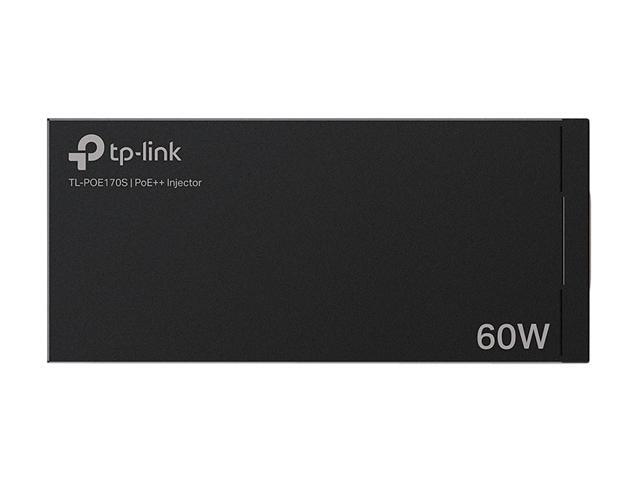

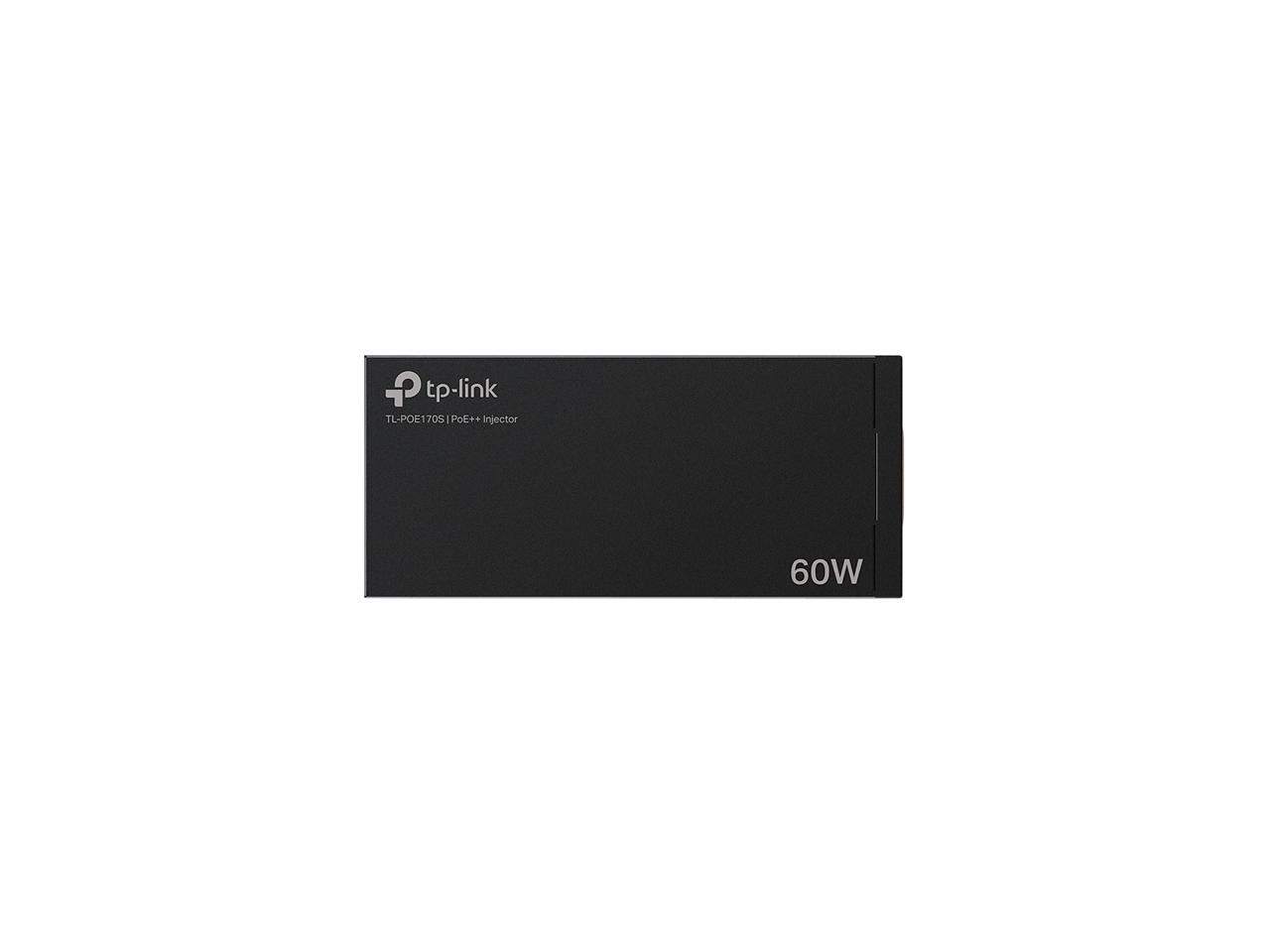

TP-Link TL-PoE170S

OUT OF STOCK.

Fees for brokerage and duty included in price.

With no need to replace your existing non-PoE switch/device, you can easily have PoE enabled with the use of TL-PoE170S
Experience lightning-fast wired speeds with 1x Gigabit Ethernet Input Port + 1x Gigabit Ethernet Output port
TL-PoE170S supplies power and data via one single ethernet cable to 802.3 at/af/bt PoE devices and expands network to areas with no power lines or outlets
Easy setup with no software installation or configuration needed
Deliver Power up to 100 meters (328 ft.), perfect for IP cameras or access point deployment in large areas
With Auto Detect technology, TL-PoE170S delivers up to 60W to a PoE++ device with backwards compatibility for 802.3at PoE+ (30W) and 802.3af PoE (15.4W) devices

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at/bt* standards, supplies up to 60W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
Durable metal casing

PoE++ Injector

PoE injectors take power and Ethernet data and combine and transmit them both on a single cable. Therefore, you can have better flexibility and convenience when fixing PoE enabled devices such as cameras, LEDs and IP phones, without staying close to an AC outlet. The TL-PoE170S PoE++ injector supports Gigabit speed and up to 60W power output, and comes in a durable metal case that's also thermally efficient, helping you easily expand network to where there is no power line or outlet.

* TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor. To power up these EAPs, TL-POE160S is recommended to use.

Type	PoE++ Injector
Color	Black
Specifications	Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt Certification: FCC, CE, RoHS Environment: Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing Material: Metal Casing Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 ohm STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 ohm STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) Ports: 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption: Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play Dimensions ( W x D x H ): 6.12.81.7 in (1557042 mm)
