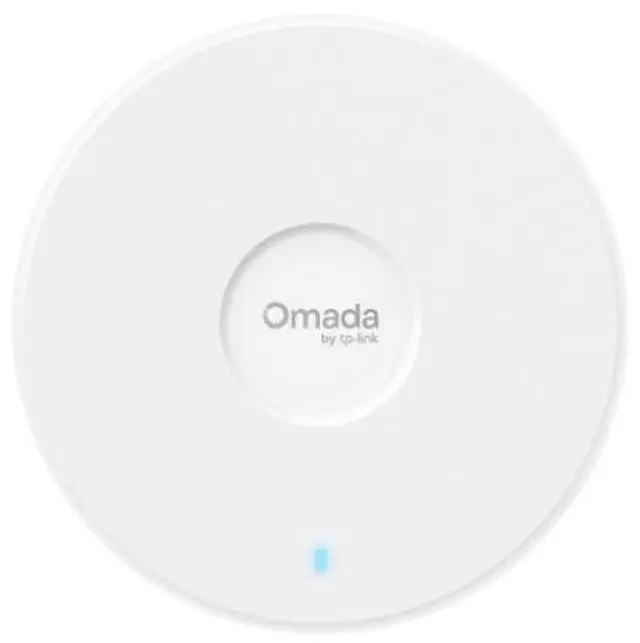

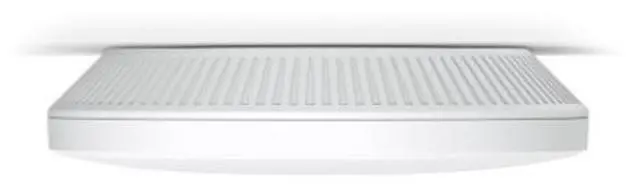

TP-Link Omada EAP720 BE5000 Wi-Fi 7 Access Point
- Wi-Fi 7 (802.11be)
- 2.4 GHz / 5 GHz (Dual-Band)
- Up to 5000 Mb/s Throughput
- 1 x 2.5 Gigabit Ethernet Port
- Max Client: 250+
- Cover up to 1500ft2
- Ceiling / Wall / Junction Box Mounting (Kits Included)
- Works with Omada controller, Cloud and software platforms
Specs
Reviews
Learn more about the TP-Link EAP720
| Brand | TP-Link |
|---|---|
| Model | EAP720 |
| Color | White |
|---|---|
| # of Users | 250+ |
| Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| WiFi Generation | Wi-Fi 7 |
| Wireless Data Rates | BE5000 / Up to 5.0Gbps |
| Security | Captive Portal Authentication Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Frequency Band | 2.4 GHz / 5 GHz / 5 GHz |
| Antenna | 2.4 GHz: 2 x 4.0 dBi 5 GHz: 2 x 5.0 dBi |
| Transmitted Power | < 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1&UNII-4) < 24 dBm (5 GHz, UNII-2&UNII-3) |

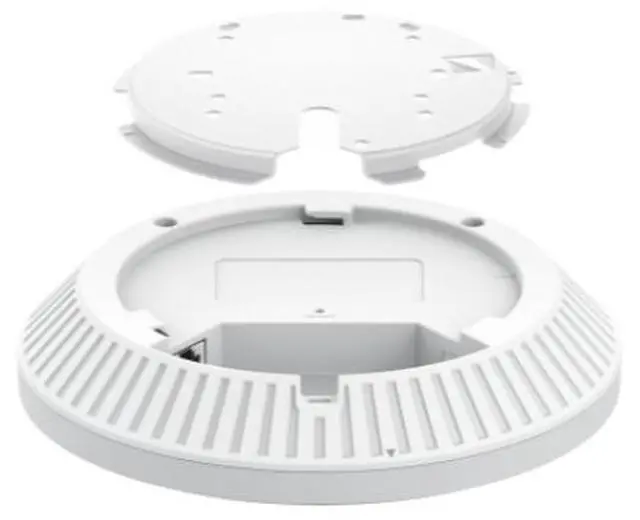

| Mounting Location | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Buttons | Reset |
| LAN Ports | 1 x 2.5G |
| Multiple SSIDs | 16(8 on each band) |
| VLAN | Yes |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Included) |
| Max Power Consumption | 17.83 W (For PoE); 13.99 W (For DC) |
| Certifications | CE, FCC, RoHS, IC |
|---|---|
| Temperature | Operating Temperature: 0 °C - 40 °C (32 °F - 104 °F) Storage Temperature: -40 °C - 70 °C (-40 °F - 158 °F) |
| Humidity | Operating Humidity: 10%-90% non-condensing; Storage Humidity: 5%-90% non-condensing; |
| Dimensions | 6.3" x 6.3" x 1.4" |
|---|
| Features | MLO 4K-QAM Seamless Roaming 240 MHz Bandwidth Mesh OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS: 16(8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
|---|
| Package Contents | Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 Installation Guide Ceiling/Wall/Junction Box Mounting Kit Power Adapter |
|---|
| First Listed on Newegg | September 24, 2025 |
|---|
