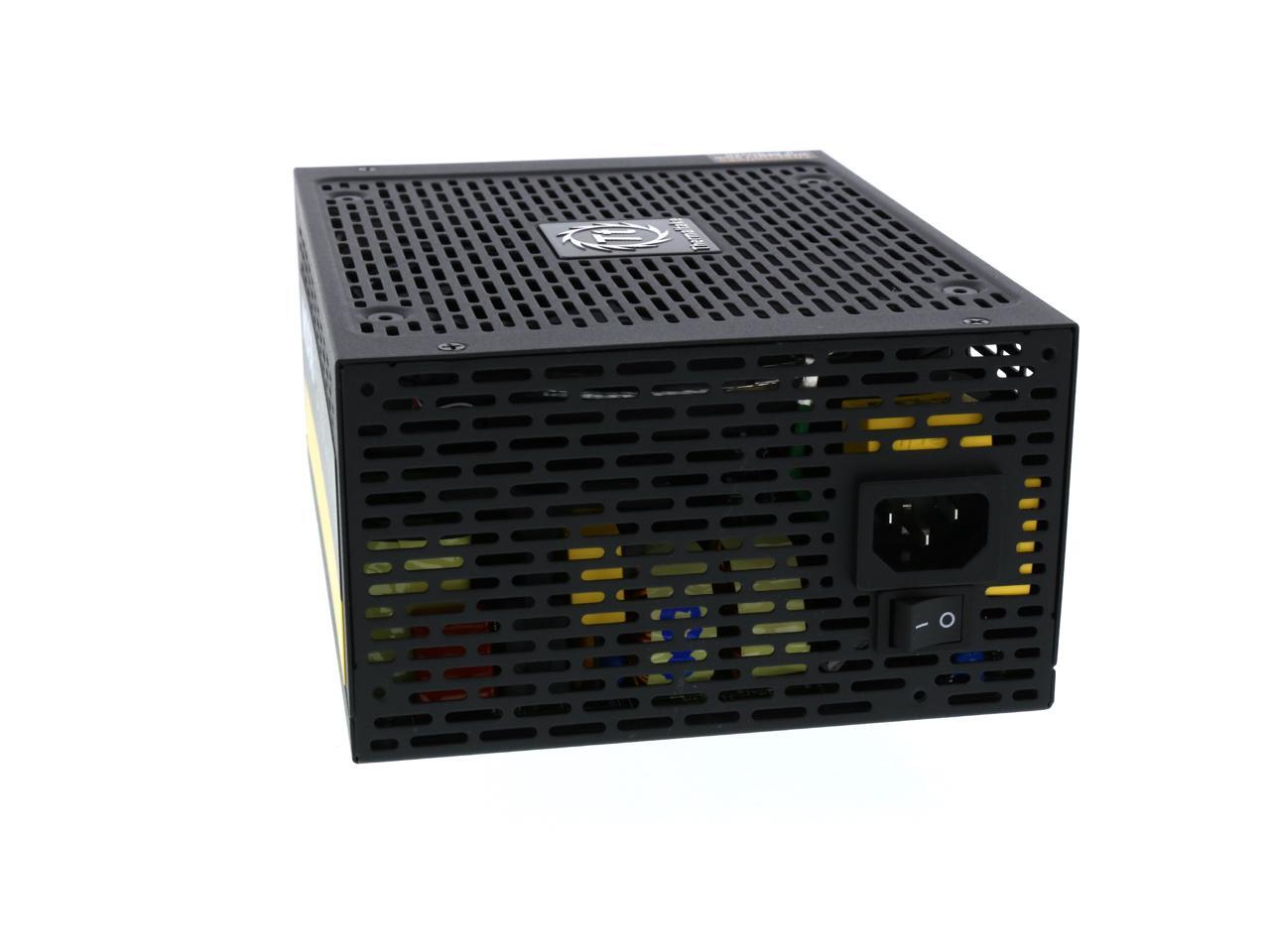

Thermaltake Toughpower Grand DPS G RGB Titanium PS-TPG-0850DPCTUS-T 850 W ATX12V / EPS12V SLI Ready CrossFire Ready Full Modular Active PFC Power Supply

OUT OF STOCK.
Fees for brokerage and duty included in price.
  • ATX12V / EPS12V
  • Full Modular
  • 100 - 240 V 50/60 Hz
  • +3.3V@25A, +5V@22A, +12V@70A, -12V@0.3A, +5VSB@3.0A
Overview
Specs
Reviews

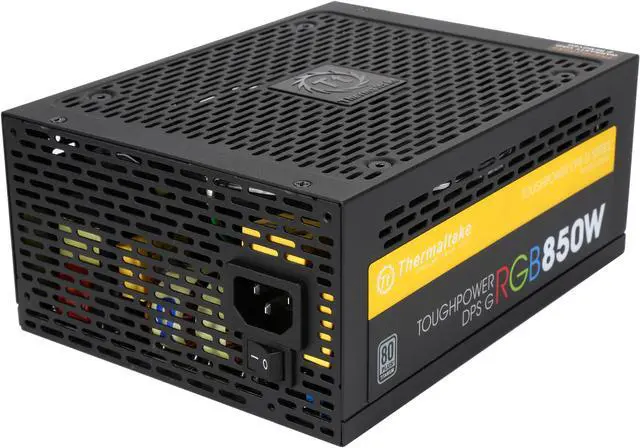

Thermaltake Toughpower DPS G RGB 850W Titanium

The Thermaltake Toughpower DPS G RGB 850W Titanium is the world’s first PSU pre-installed with a patented 256 colors RGB fan that incorporate various high-tech components, leading technology and Eco-friendly commendations. Featuring 80 PLUS Titanium certification with individually sleeved cable and flat cable, Toughpower DPS G RGB Titanium Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstance.

The combination of Toughpower DPS G RGB Titanium and three intelligent platforms – DPS G PC APP 2.0, DPS G Smart Power Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but also save the energy, reduce CO2 emission, and eventually protect the Earth.

Thermaltake
Thermaltake
Thermaltake
Thermaltake

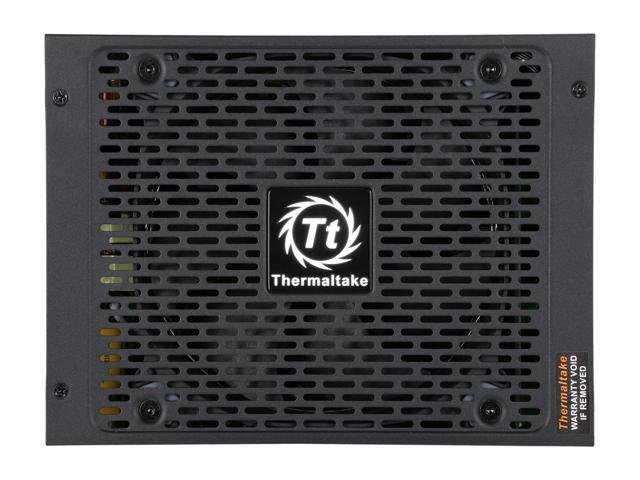

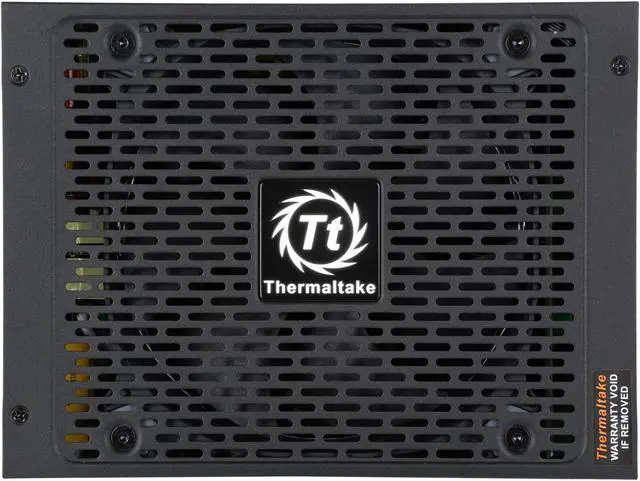

Patented 256 color RGB Fan

The first RGB PSU series introduced by Thermaltake install with a patented circular 256 multi-colored 140mm fan. Users can freely adjust fan speed as well as fan colors digitally through DPS G PC App. The color and brightness uniformity of the multicolored LED ring is visible from all directions and adds style to the chassis.

Thermaltake

Concentrated Compression Fan Blade

The fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.

Thermaltake

Security Protection – Warning Alert & PC Off Remote Control

The SPM platform provides three alert functions: fan failure, over temperature (over 140?/60?), and abnormal voltage level (over/under 5% of normal level) warning alert. That will help users to reduce the possibility of overheating your internal components and burning the PC. When the abnormal activities occur, the warning message will be pushed to the mobile devices and email. The SPM platform allows users to turn off the computer remotely via mobile app when users receive the warning message.

Thermaltake

Security Protection – Scheduled Shutdown

The SPM platform allows users to arrange a scheduled shutdown for the system remotely through the Mobile APP or the Cloud Management. For example, when the process is complete, users can schedule a time for the system to switch off automatically via their mobile devices in order to save the energy and electricity cost.

Thermaltake

100% High Quality Japanese Capacitors

The Toughpower DPS G RGB 1000W Titanium features 100% high quality Japanese brand capacitors, which greatly improves the durability and offers the highest stability and reliability.

Thermaltake

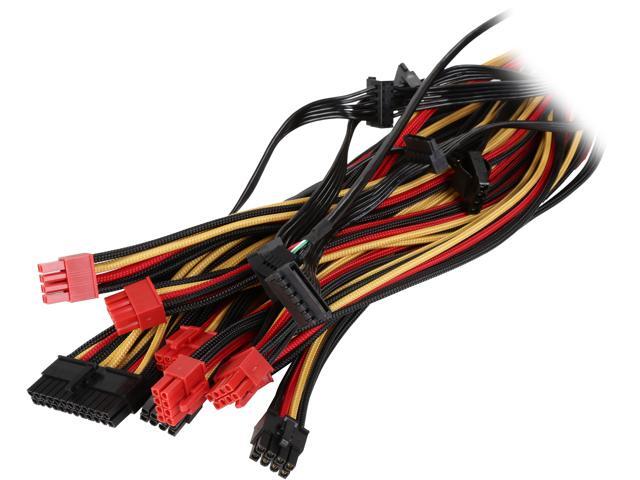

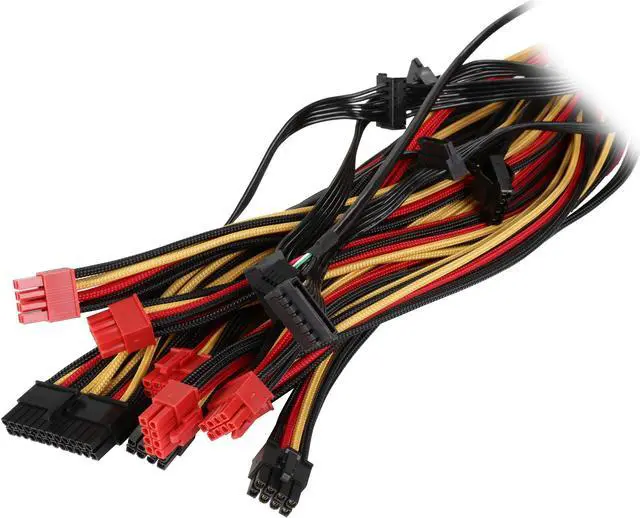

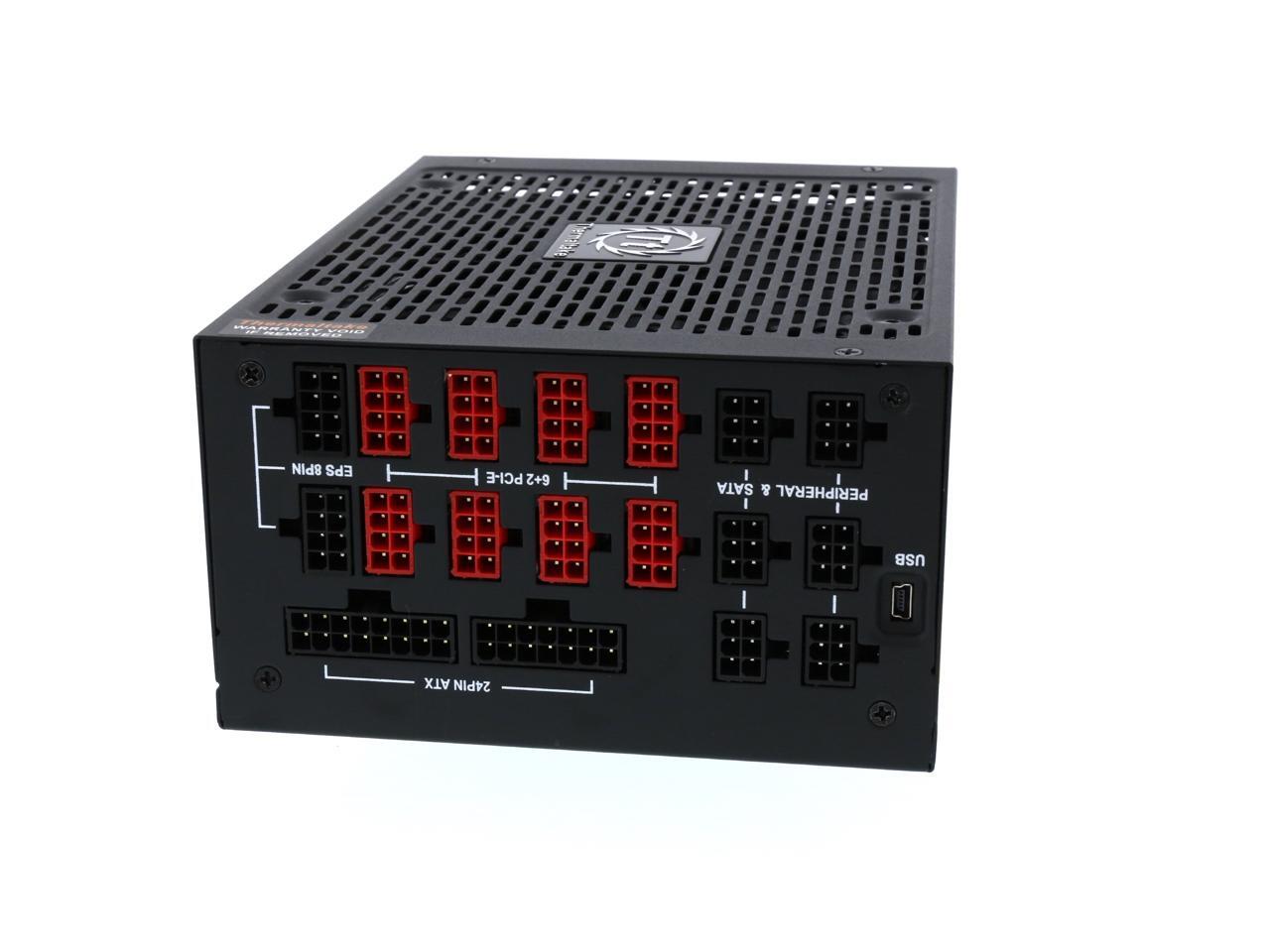

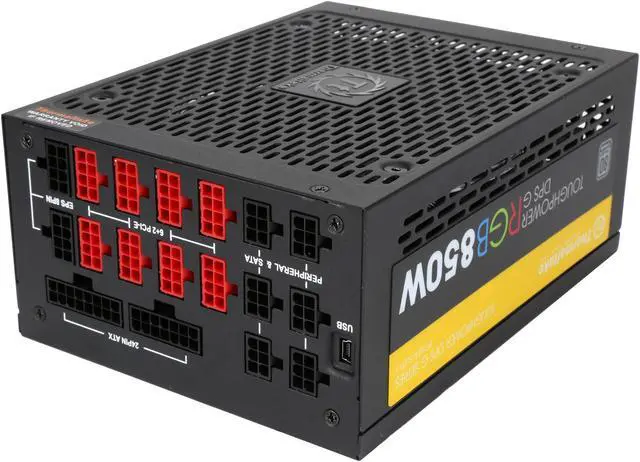

Fully Modular Cable Design

Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. Individually sleeved cable and flat cable can make cable management easier, reduce clutter and increase airflow inside the chassis.

Thermaltake

Core Component: MCU

Toughpower DPS G RGB 850W Titanium Series comes with a 32Bit Microcontroller Unit (MCU) from STMicroelectronics. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.

Thermaltake

Digital Control Board

Digital power supplies support high-efficiency switching transistors that perform only necessary steps and waste less energy given off as heat. In short, digital power supplies do not dissipate power, which creates waste, and incorporate smaller, lighter transistors. Using smaller parts that work more efficiently enables Thermaltake to craft smaller and lighter power supplies, typically one of the bulkiest components in any PC.

Thermaltake

Massive and Dedicated +12V Output

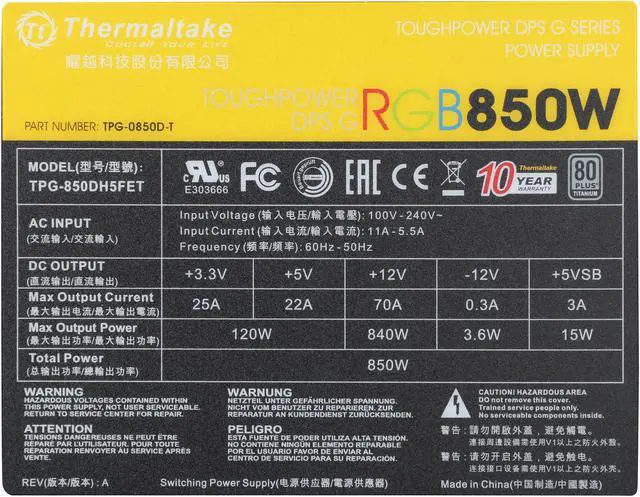

Toughpower DPS G RGB 850W Titanium is equipped with a powerful single +12V rail, please see the output specification below:

Thermaltake

80 PLUS Titanium-Certified and Skylake-Ready

Toughpower DPS G RGB 850W Titanium Power Supply with DPS G software delivers up to 94% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Toughpower DPS G RGB 1500W Titanium has been optimized to work with Intel’s new, sixth-generation Skylake processors to achieve maximum energy savings.

Thermaltake

TT Power VR Ready

Toughpower DPS G RGB Series power supplies offer stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.

Thermaltake

DPS G PC APP 2.0: Smart Zero Fan

Aside from the silent and performance mode, DPS G PC APP 2.0 comes with the new Zero Fan mode to minimize the audible noise of your PC. The fan will be turned on around 30% of rated load to optimize the thermal performance and minimize the audible noise.

Thermaltake

Specification



P/N PS-TPG-850DPCTUS-T
Short P/N TPG-0850D-T
Model TPG-850DH5FET
Type Intel ATX 12V 2.31 & SSI EPS 12V 2.92
Max. Output Capacity 850W
Peak Output Capacity 1020W
Color Black
Dimension (W / H / D) 150mm(W) x 86mm(H) x 200mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 70% of full load (115Vac/ 230Vac input)
Input current 11A – 5.5A
Input Frequency Range 60Hz - 50Hz
Input Voltage 100V - 240V
Operating Temperature 0 ? to +50?
Storage Temperature -20 ? to +90 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm RGB Fan
Efficiency MEET 80 Plus Titanium at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/FCC/UL/ Bauart Mark+CB/ EAC
PCI-E Connector PCI-E 6+2pin/ 8pin X10
