Thermaltake Toughpower GF3 850W; ATX 3.1; Native PCIe 5.1 12V-2x6; Flat Cables; Color Matched Connectors; Japanese Main Capacitors; 135mm Fan; 80 Plus Gold Certified; Black; PS-TPD-0850FNFAGU-4
- Future Dusk 135mm Fan: Sporting a unique 135mm Future Dusk colored fan to not only keep the internals running cool and efficiently but also add a bit of style.
- Native 5.1 12V-2x6: Featuring two native PCIe 12V-2x6 cable capable of delivering up to 600W to meet power demands for modern GPUs.
- Matcha H++6: Easily ensure proper connections with the help of the matcha dual-colored H++ connector. Connector is properly seated when matcha is no longer visible.
- ATX 3.1: Built to ATX 3.1 specifications means the Toughpower GF3 850w is capable of handling up to 3x GPU power excursions and up to 2x total power excursions, while maintaining low load efficiency as well.
- Stylish Flexiblity: The included Full Modular cable set now features flat cables with color matched connectors to provide an improvement in flexibility for routing and management.
+
+
Specs
Reviews (171)
Learn more about the Thermaltake PS-TPD-0850FNFAGU-4
| Brand | Thermaltake |
|---|---|
| Series | Toughpower GF3 Series |
| Model | PS-TPD-0850FNFAGU-4 |
| Type | ATX 12V v3.0 / EPS v2.93 |
|---|---|
| Maximum Power | 850 W |
| Fans | 1 x 140 mm Hydraulic Bearing Smart Zero Fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 12VHPWR Support Wattage: 450W |
| Haswell Support | Yes |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| PSU Noise Level | Cybenetics A- |
| Protection | OCP/OVP/UVP/OPP/SCP/OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50Hz - 60Hz |
| Input Current | 10 - 5A |

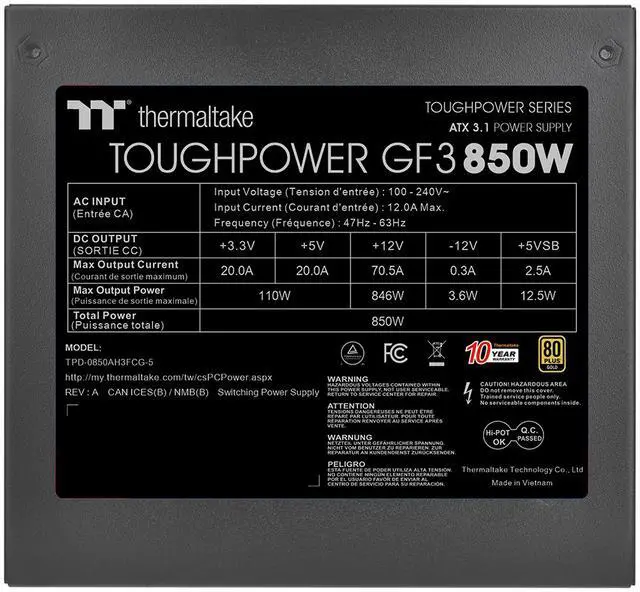

| Output | +3.3V@22A, +5V@22A, [email protected], [email protected], +5VSB@3A |
| MTBF | 100,000 Hours Minimum |
| Approvals | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC |

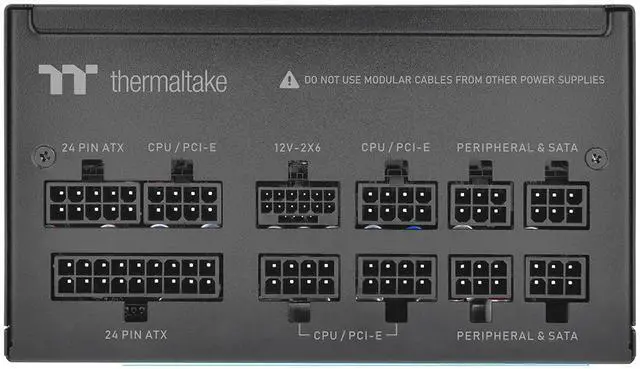

| Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin ATX / 1 x Floppy / 12 x SATA / 2 x 8 pin (4+4) EPS (CPU) / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe |
| Features | 850W continuous output at 80Plus Gold efficiency Compatible with Intel ATX 3.0 spceification, providing sufficient and stable power delivery PCIe Gen.5 12VHPWR Connectors included 100% high quality Japanese 105°C/221°F capacitor <30mV low ripple noise design & strict voltage regulation <±2% Fully modular with low-profile flat White cables Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation Ultra quiet 135mm hydraulic bearing fan High amperage single +12V rail design |
|---|
| Dimensions | 5.9" x 3.4" x 6.3" |
|---|
| First Listed on Newegg | July 30, 2023 |
|---|
