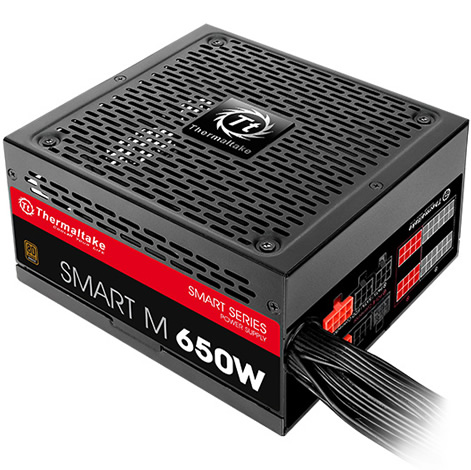

Thermaltake Smart M 650W Bronze
The latest presentation from Thermaltake in the essence of mainstream systems – the Smart M Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 650W to 850W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.

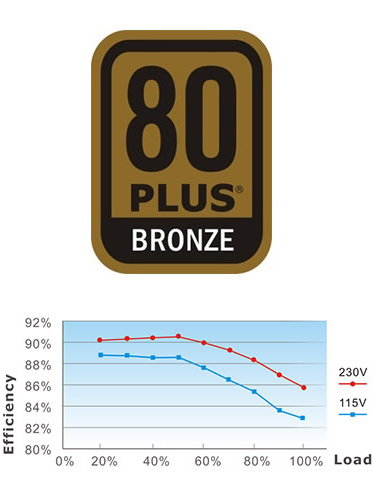

80% Plus Bronze Certified
80 PLUS® Bronze certified, delivers up to 85% efficiency at 20-100% load under real world load conditions and promises lowest power losses, saving unnescessary waste of energy to enhance environment protection.

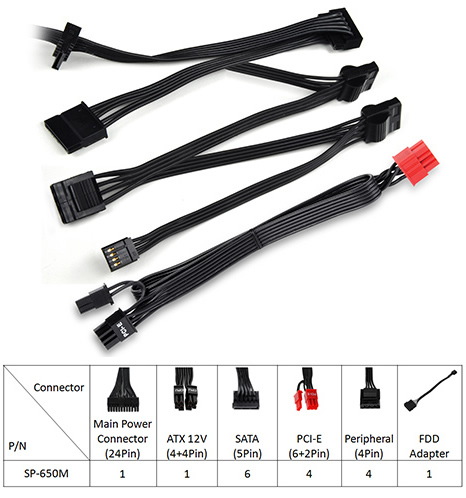

Flat & Low Profile Cable
All new low-profile flat cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

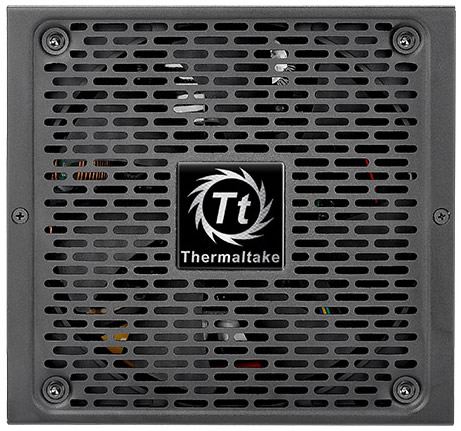

Ultra Quiet 140mm Fan
Smart M Series adopts 140mm cooling fan with intelligent RPM control, presenting cool performance and silent operation.
Massive and Dedicated +12V Output

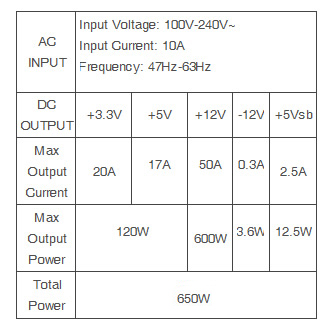

Smart M 650W Bronze is equipped with a powerful single +12V rail, please see the output specification below:

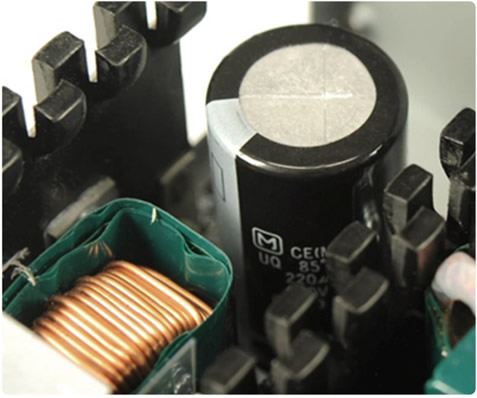

Top Quality Japanese Main Capacitor
High-quality Japanese capacitor produces supreme stability and performance with low impedance characteristics. It delivers stable operation over extended periods of time as well as excellent reliability.
Industrial Grade Protection
Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
Specification
| P/N | SP-650MPCBUS |
| P/N | SP-650M |
| Model | SP-650AH3CCB-A |
| Type | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 650W |
| Peak Output Capacity | 780W |
| Color | Black |
| Dimension (H x W x D) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 70% of full load |
| Input current | 10A |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100Vac – 240Vac |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Operating Temperature | -20°C to +70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 140mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | UL/CUL/TUV/CE/FCC and BSMI |
| PCI-E Connector | PCI-E 6+2pin x 4 |
