Thermaltake Suppressor F51 Power Cover Edition E-ATX Mid Tower Tt LCS Certified Gaming Silent Computer Case CA-1E1-00M1WN-02
- SPCC E-ATX Mid Tower Chassis
- 2 x USB 3.0 / 2 x USB 2.0 / 1 x Headphone / 1 x Mic Ports Front Ports
- 2 External 5.25" Drive Bays
- 6 x 2.5"/3.5" w/ hidden drive mounts Internal 3.5" Drive Bays
Overview
Specs
Reviews (5)

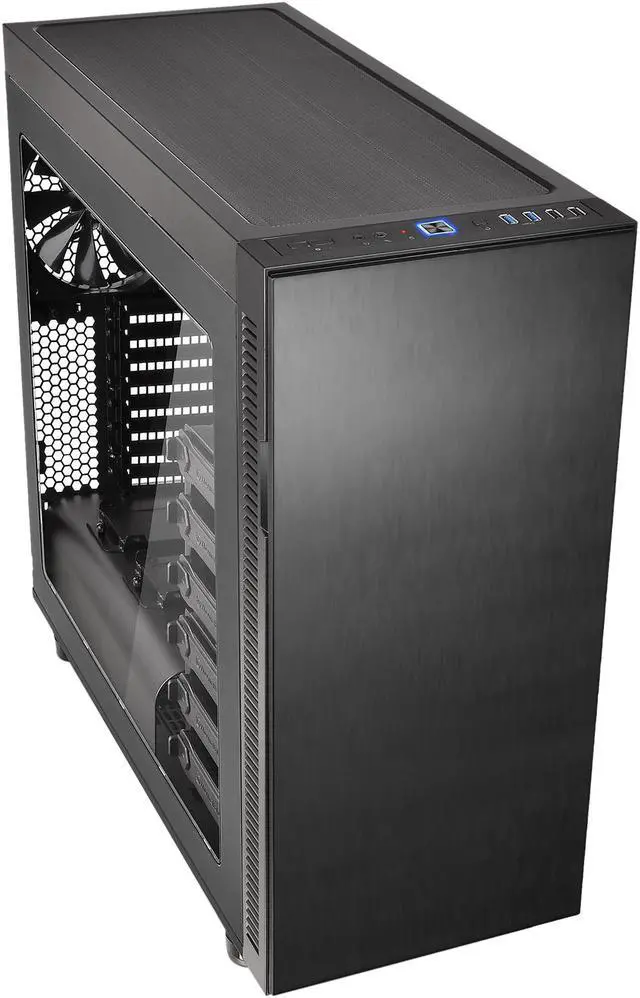

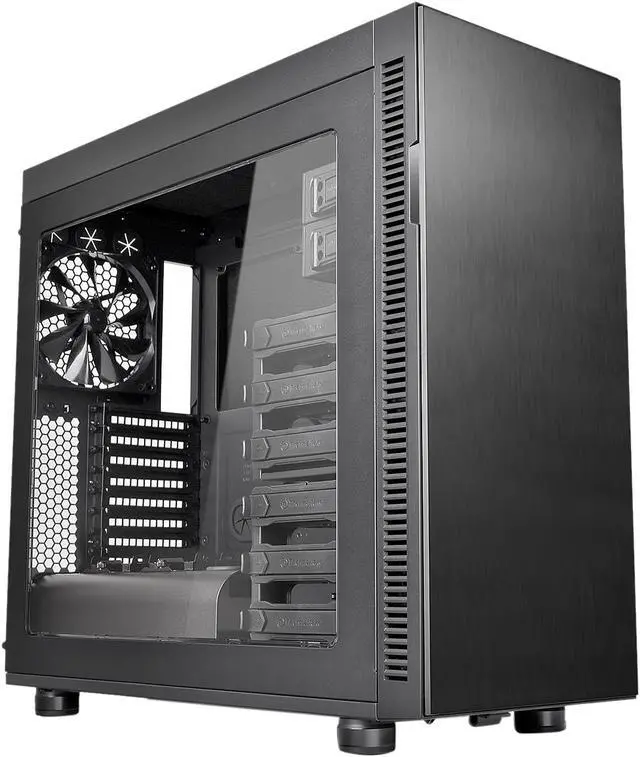

Thermaltake Suppressor F51 Power Cover Edition
The Suppressor F51 mid-tower chassis with power cover design, featuring leading-edge sound reduction panels on all sides, expand your cooling options with removable panels for the perfect balance in silent operation and cooling performance. Supporting a range of motherboard platforms from Mini ITX to E-ATX solutions, unrivaled liquid cooling expansion and expandability for all high-end GPU solutions users can expect an enthusiast built design they can trust.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Power Cover Design

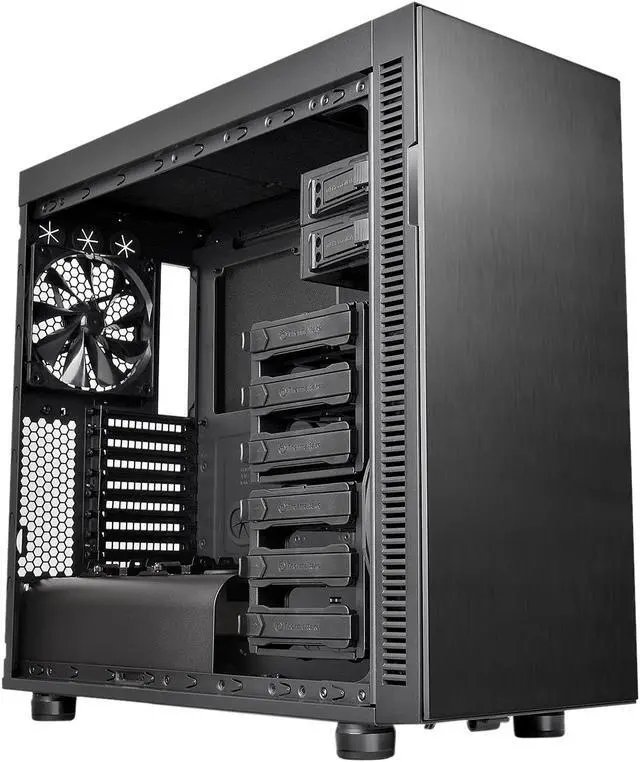

Power cover design is one of the Suppressor Power Cover Edition unique features. The entire bottom area can be used to reorganize unused cables, which makes for a tidy-looking system. Furthermore, the PSU cover can hold two additional 2.5” HDD drive bays.

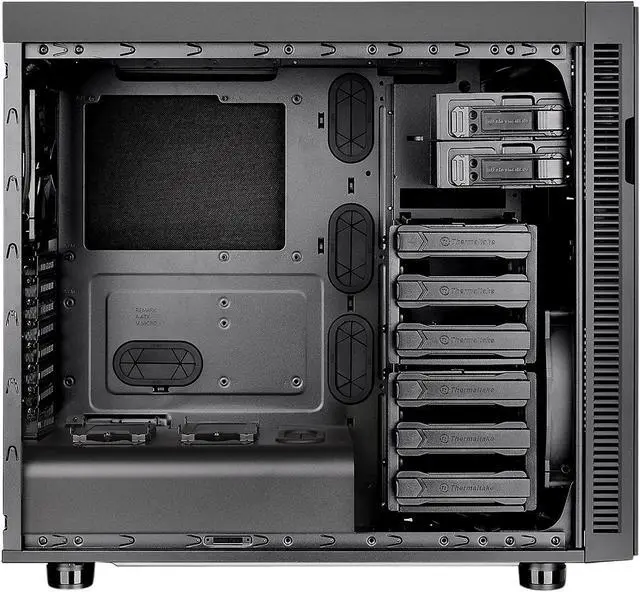

Tool-Free Installation
Innovative 5.25” and 3.5” tool-free drive bay design minimizes installation/removal with hidden drive bays on the back panel to provide a clean look and improved expansion for liquid cooling components. The “2 + 6” drive bay with modular drive racks allows multiple SSD/HDD devices for improved storage capacity.

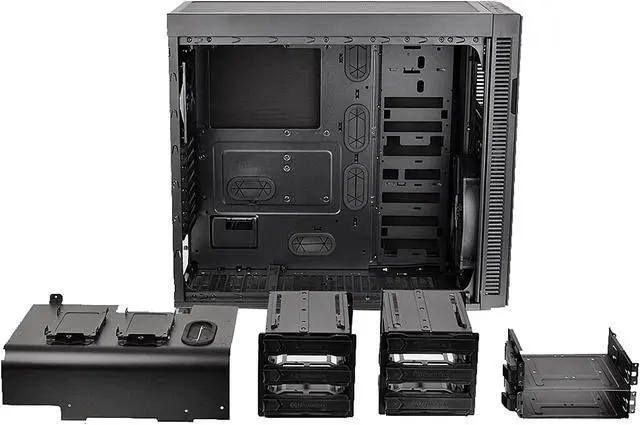

Fully Modular Design
With removable “2 + 6” drive racks, gain more for custom cooling components to freely interchange SSD/HDD cage sections for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.

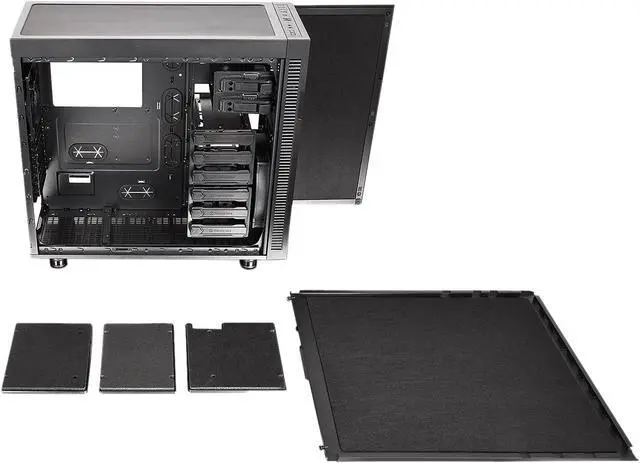

Modular Sound-damping Design
Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F51 Power Cover Edition to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.
Optimized Silent Operation
For acoustic test, Suppressor F51 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect. Preinstalled sound-damping foams of Suppressor F51 reduce noise and acoustic levels within the entire chassis for extreme silent purpose. Suppressor F51 Acoustic Test Result:
Optimized Cooling Performance
Thermal imaging camera was applied for the temperature test of the chassis. After the removal of all sound-damping covers from the top panel, Suppressor F51 Power Cover Edition dissipates heat more efficiently. The temperature decreases 2.6°C/36.38°F without any sound damping covers.
Outstanding Ventilation
The Suppressor F51 Power Cover Edition delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, air intake is maximized with a single 200mm front fan built-in and includes options for up to (3) 120mm or 140mm front fans with the provided ODD bridge (optional) combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.
High-End Complete Solution
The Thermaltake Suppressor F51 Power Cover Edition enables users to build a complete high-end system that supports up to triple 120/140mm liquid cooling radiators or up to 200mm case fans. With extended graphic card support (up to 465mm), the Suppressor F51 Power Cover Edition simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Most importantly, the Suppressor F51 Power Cover Edition delivers outstanding cooling efficiency, reduced exterior noise and dust signatures for ideal silent operation.
Suppressor F51 Power Cover Edition Radiator Supporting List
Suppressor F51 Power Cover Edition Fan Supporting List
Specification
| Model | Suppressor F51 Power Cover Edition |
|---|---|
| P/N | CA-1E1-00M1WN-02 |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 525 x 230 x 577 mm (20.6 x 9.1 x 22.7 inch) |
| Net Weight | 12.2 kg / 27 lb |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Side Panel | Transparent Window |
| Cooling System | Front (intake) : 200 x 200 x 30 mm fan (600~800rpm,13~15dBA) Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) |
| Drive Bays | -Accessible 2 x 3.5" -Hidden 6 x 3.5’’ or 2.5’’ (HDD Cage) 2 x 2.5’’ (With Power Cover) |
| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
| I/O Port | USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1, Fan Speed Control, Fan LED On/Off |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm , 2 x 140mm , 1 x 200mm Top: 3 x 120mm , 3 x 140mm , 2 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 2 x 120mm |
| Radiator Support | Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm Bottom: 1 x 240mm |
| Clearance | CPU cooler height limitation: 185mm VGA length limitation: 310mm(with HDD rack) 465mm(without HDD rack) PSU length limitation: 220mm (With Bottom Fan) |
