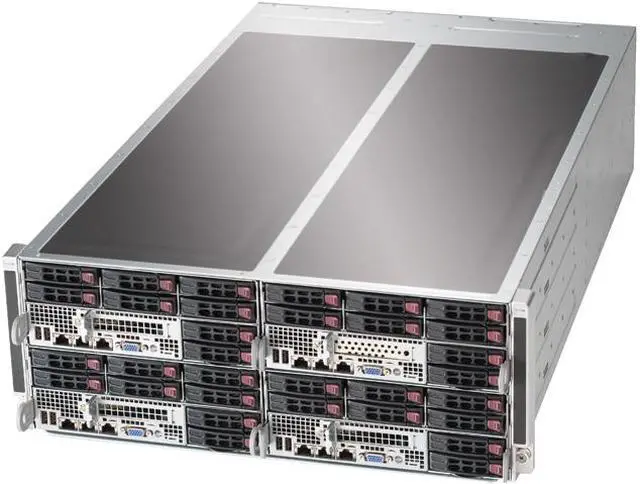

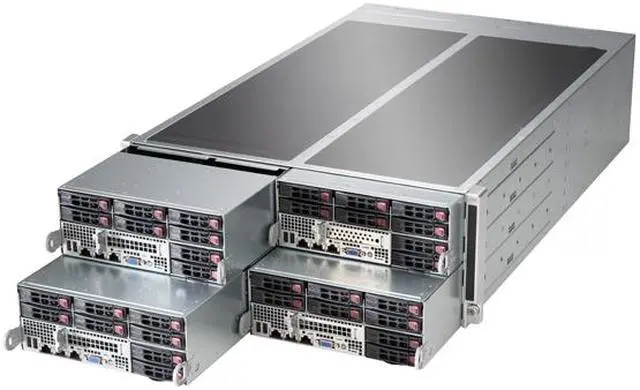

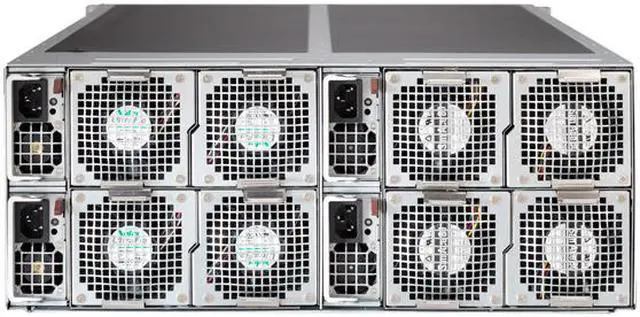

SUPERMICRO SYS-F617R2-F73 4U Rackmount Server Barebone (8 Nodes) Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

Be the first to review this product...
  • Dual LGA 2011
  • Dual Intel Xeon E5-2600 (up to 135W TDP)
  • 8 x 240Pin Memory Slots
  • 1620W high-efficiency redundant power supply w/ PMBus, 80PLUS Platinum
Specs
Reviews

Learn more about the Supermicro SYS-F617R2-F73

General
Brand SUPERMICRO
Series SuperServer
Model SYS-F617R2-F73
Form Factor 4U Rackmount
CPU Supported
CPU Type Dual Intel Xeon E5-2600 (up to 135W TDP)
CPU Socket Dual LGA 2011
Chipset
North Bridge Intel C602
Memory Supported
Memory Slots 8 x 240Pin
Max Memory Supported 256GB RDIMM
Memory Type Supported DDR3 1600/1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 4 x SATA 300 + 2 SATA 600
SATA RAID RAID 0/1
SAS 8x SAS 2.0 ports (6Gbps) via LSI 2308

SW RAID 0, 1 support
Graphics
GPU/VPU Matrox G200eW
Expansion Slots
PCI Express 1x PCI-E 3.0 x16 Low-profile via riser card
Communications
First LAN Intel 82574L
Second LAN Intel 82574L
Max. LAN Speed Dual 1 Gigabit
Expansion Bays
Hot-Swap Bays 2 x 2.5" SAS2/SATA (per node)
Panel Ports
RJ45 2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 1620W high-efficiency redundant power supply w/ PMBus, 80PLUS Platinum
Features
Features IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

1x SAS2 / SATA backplane
Dimensions & Weight
Dimensions 29" x 17.63" x 6.96"
Weight 150 lbs.
Additional Information
First Listed on Newegg April 12, 2013
